Question 2
FThe Figure shows the magnetic field lines between two pairs of bar magnets, in arrangement 1 and arrangement 2.
Figure
a.[2]
Which arrangement shows two like poles facing each other?
Give a reason from the Figure for your answer.
b.[1]
State the type of force between the two magnets in arrangement 1.
c.[2]
In arrangement 2, a plotting compass is placed at point Z. The compass needle does not point in any particular direction.
Suggest why.
d.[2]
Another student uses iron filings instead of a plotting compass to show the field pattern.
Give one advantage and one disadvantage of using iron filings.
4.1 Magnets and magnetic fields Questions

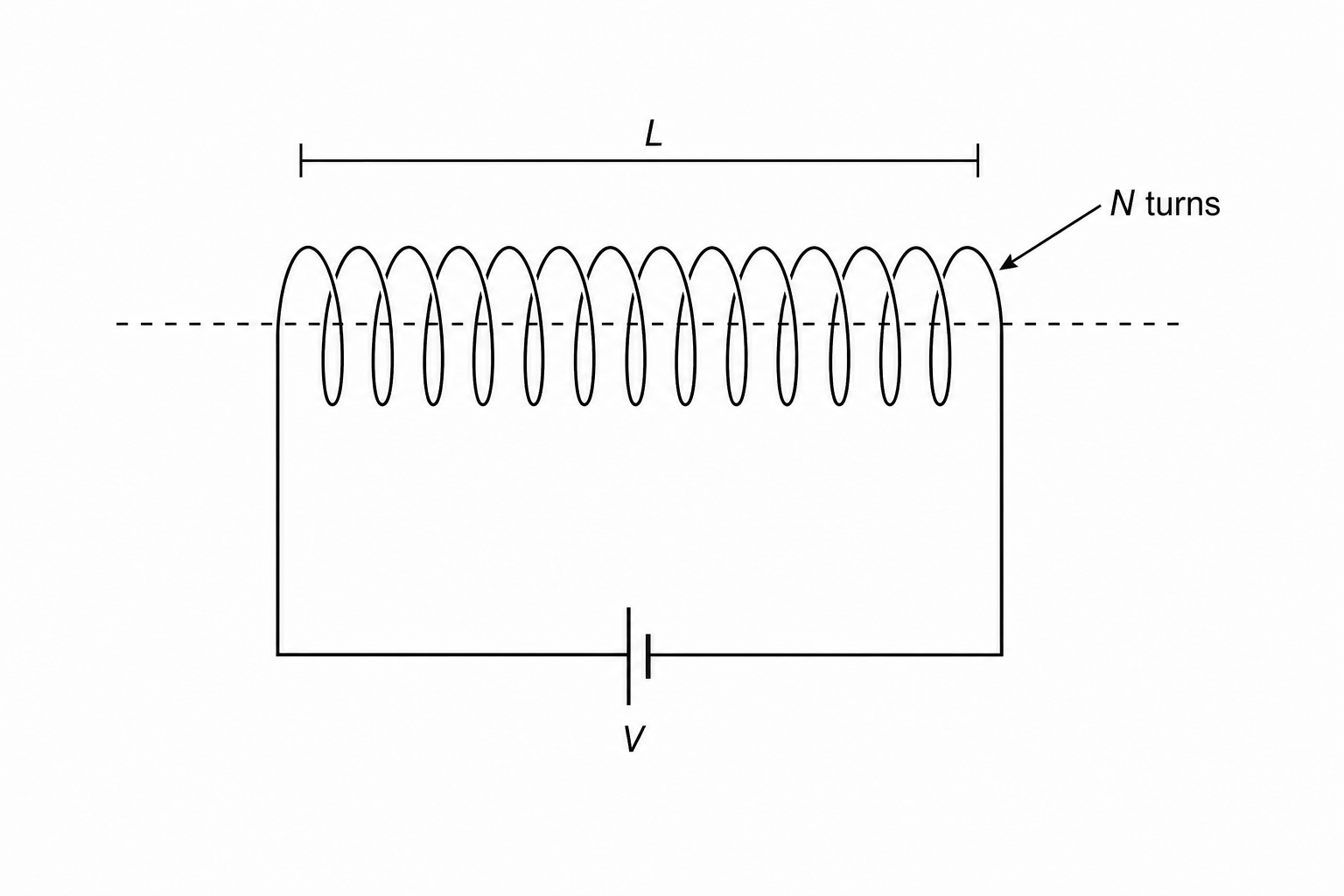

44 exam-style questions on OCR GCSE Physics 4.1 Magnets and magnetic fields, covering 4.1.1 Magnetic poles, attraction and repulsion, 4.1.2 Permanent and induced magnets, 4.1.3 The magnetic field of a magnet, 4.1.4 Compasses and the Earth's magnetic field, 4.1.5 The magnetic field around a current-carrying wire, 4.1.6 Field strength, current and distance, and 4.1.7 Solenoids and electromagnets. Each one has a worked solution and a mark scheme showing where the marks go.
