Small steel spheres are released from rest at the surface of a deep column of liquid glycerin.
Why does a sphere initially accelerate downwards when it is first released?
Eventually, the sphere stops accelerating and settles at a constant velocity (terminal velocity). Explain, in terms of forces, why the sphere reaches terminal velocity.

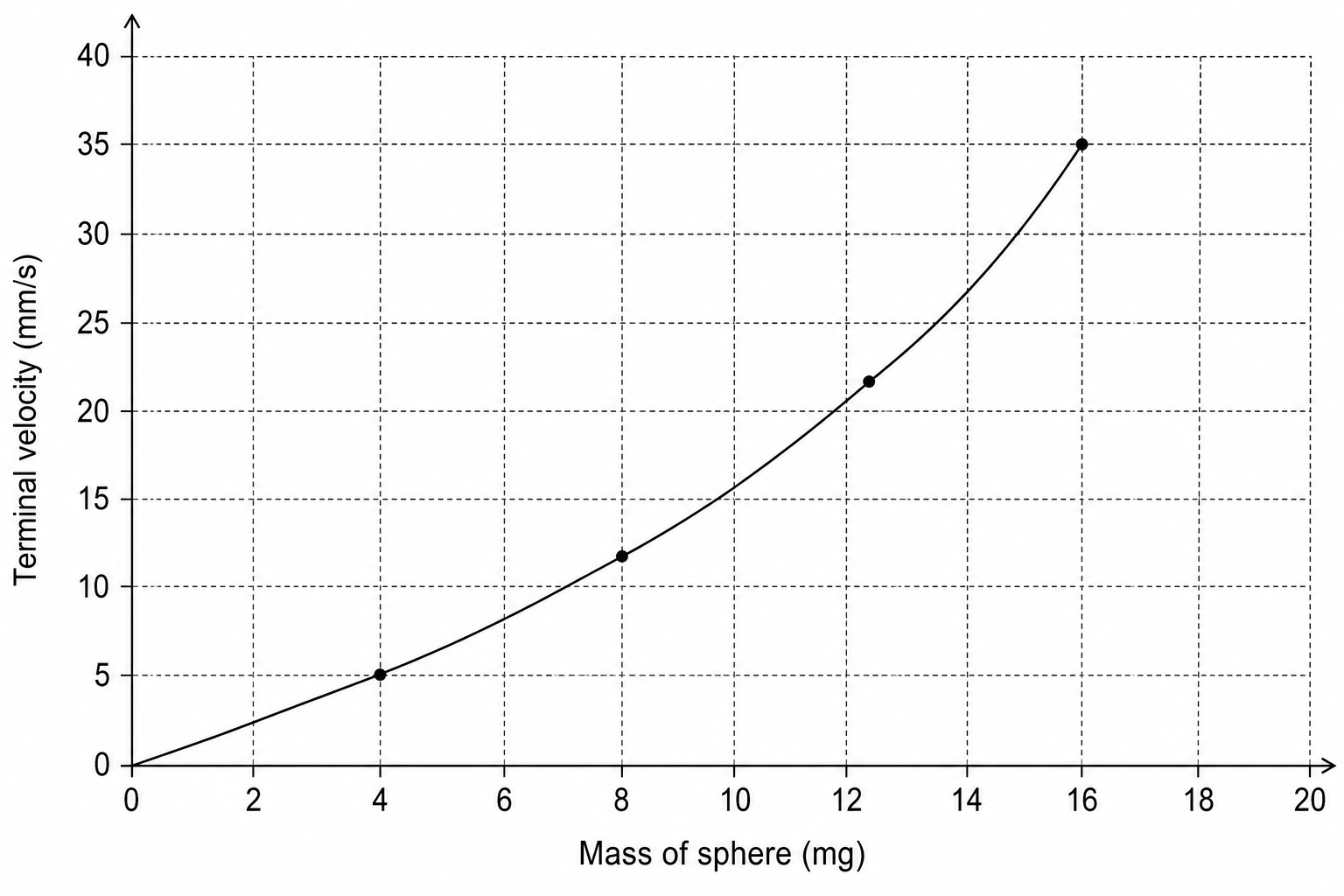

An engineer investigated how the mass of different-sized steel spheres affects their terminal velocity in the glycerin. Figure 1 shows the experimental results.
Why does the terminal velocity increase with the mass of the sphere?
Select one option:
- As the mass increases, the diameter of the sphere increases.
- As the mass increases, the volume of the sphere increases.
- As the mass increases, the gravitational force (weight) acting on the sphere increases.
Explain the difference in the maximum kinetic energy of a sphere with a mass of 8 mg and a sphere with a mass of 16 mg.
The kinetic energy of the sphere is measured in joules. Which of the following is equivalent to 1 J?
Select one option:
- 1 kg m s-1
- 1 kg m2 s-2
- 1 kg m s-2
- 1 kg m2 s-1
One of the spheres hit the bottom of the container at its terminal velocity of 22 mm/s. The sphere took 0.015 s to come to a complete stop against the bottom surface.
Determine the average force exerted on the sphere as it stopped. Use information from Figure 1.
