Question 13
Medium

An autonomous delivery rover is tested along a straight line inside a warehouse complex. Its motion over a period of 1500 seconds1500\text{ seconds}1500 seconds is recorded, and the distance-time graph representing this journey is shown below.

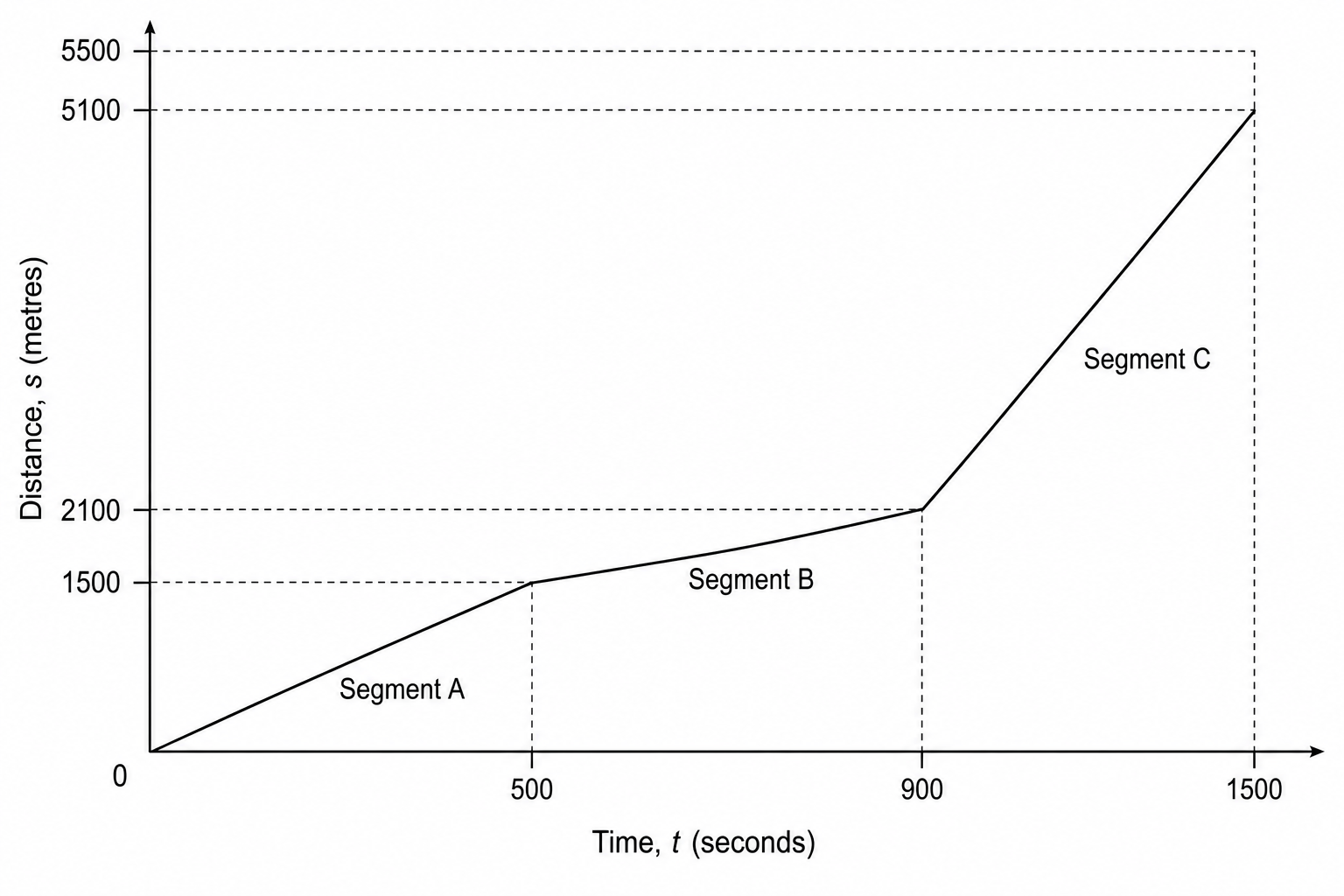

Distance-time graph for the rover's journey

a.

Some physical quantities are scalars and others are vectors.

Which of the following are vector quantities? Select two:

  • Velocity
  • Speed
  • Distance
  • Force
  • Time
[2]
b.

Determine the total distance traveled by the rover in 1500 seconds1500\text{ seconds}1500 seconds.

[1]
c.

Calculate the average speed of the rover during the entire 1500 seconds1500\text{ seconds}1500 seconds.

[2]
d.

Which segment of the graph (Segment A, Segment B, or Segment C) represents the rover moving at its slowest speed? Give a reason for your answer.

[2]
e.

Complete the following sentence:

When climbing a steep ramp to an upper level of the warehouse, the rover must do work against the force of ____________.

[1]
