Question 1
FA student stretches a spring by hanging weights from it. The student measures the extension of the spring for each force. Figure shows the student's results. The spring constant of the spring is 50 N/m.

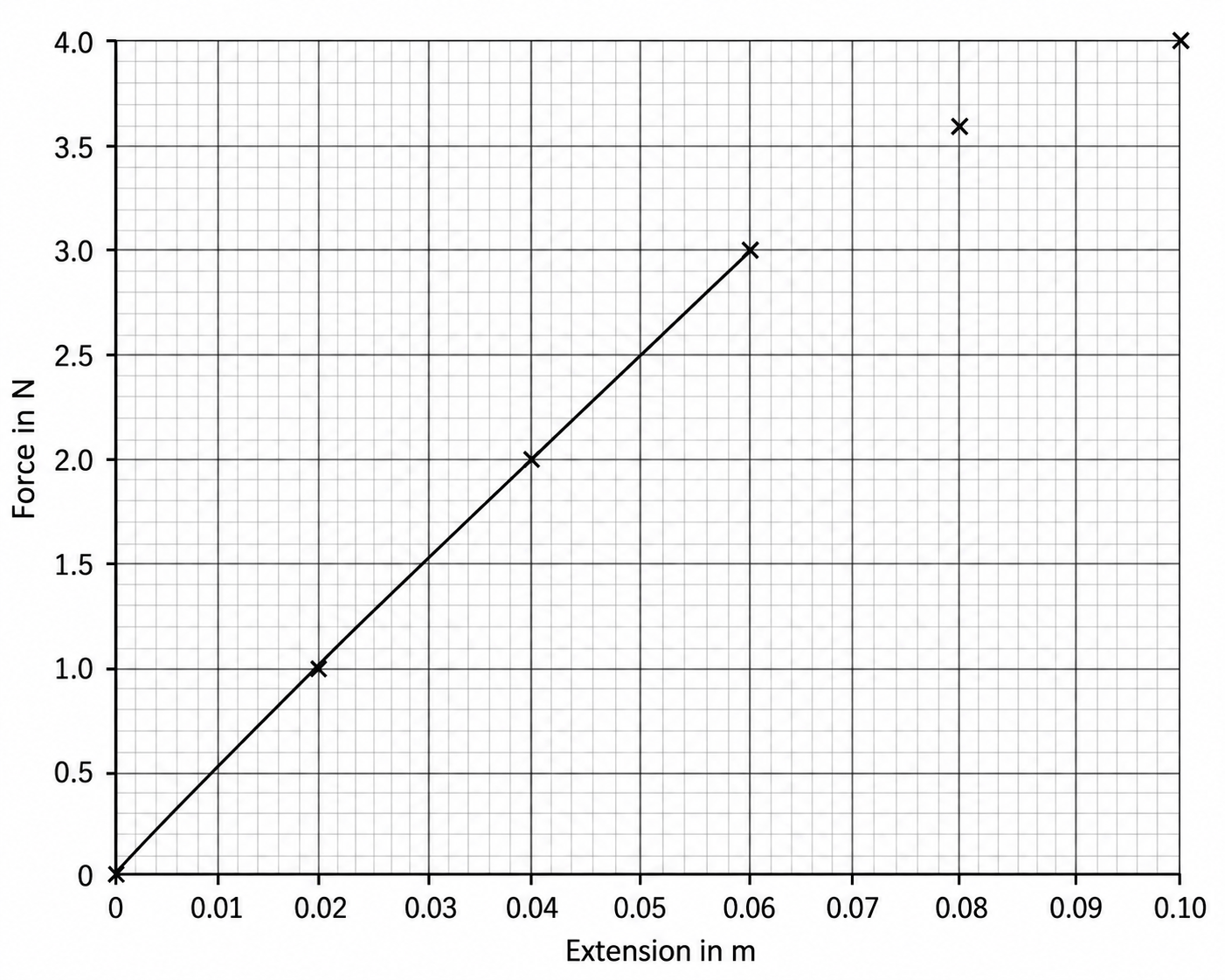

Figure: Graph of force against extension for the student's spring
a.[1]
Use Figure to give the extension of the spring when the force is 2.0 N.
b.[1]
Above a force of 3.0 N the line on the graph is no longer straight. Give the name of the point at which the line stops being straight.
c.[3]
Calculate the energy in the elastic potential energy store of the spring when the extension is 0.060 m.
d.[2]
Explain why the equation used in part c) cannot be used to find the energy stored when the extension is 0.100 m.
e.[1]
The student repeats the experiment with a stiffer spring. Give the effect of using a stiffer spring on the energy stored at an extension of 0.060 m.
