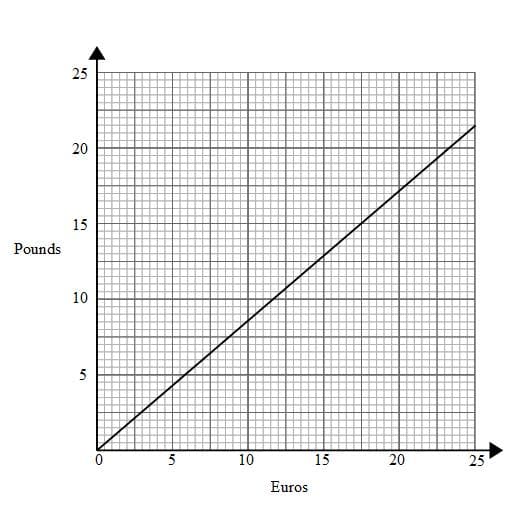

Here is a conversion graph that can be used to change between Euros and Pounds.
We can use the conversion graph to convert Euros into Pounds or Pounds into Euros.

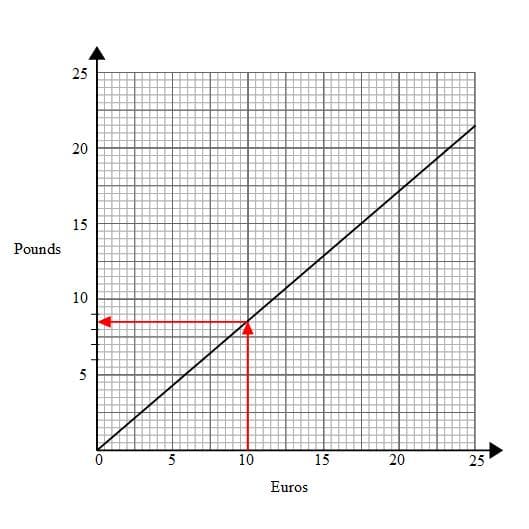

Example: Use the conversion graph to convert €10 into Pounds.

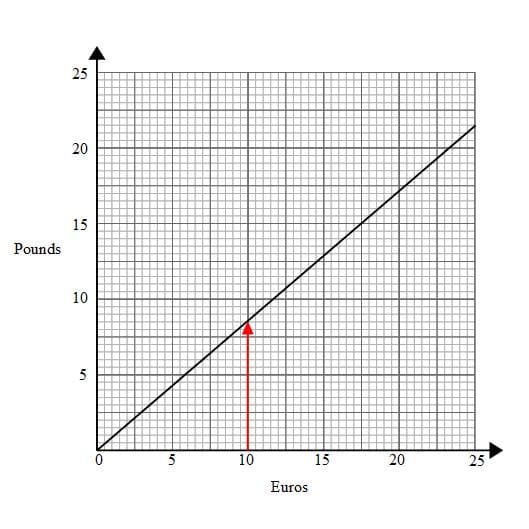

We need to draw a straight line up (vertical) from €10 to the line on the conversion graph.
We then draw a horizontal line (across) from this point to the Pounds axis.
We now read off the scale. Half way between £8 and £9 is £8.50
€10 = £8.50

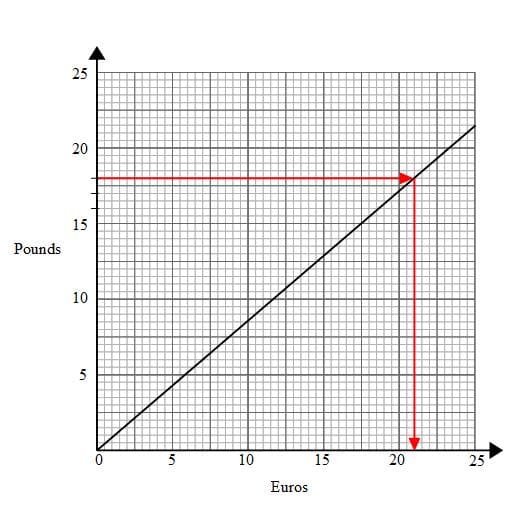

Example: Use the conversion graph to convert £18 into Euros.

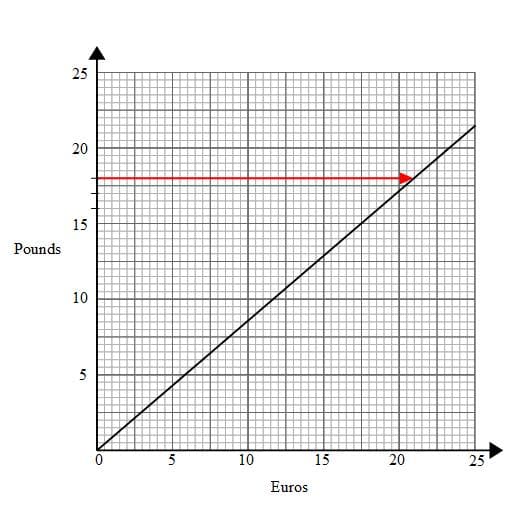

We need to draw a straight line across (horizontal) from £18 to the line on the conversion graph.
From this point we draw a vertical line down to the Euros axis
We can now read off the Euros axis.
£18 = €21
We can also be asked to use a conversion graph to convert numbers that are off the chart
Example: Use the conversion graph to convert €80 into Pounds.
The first step would be to use the conversion graph to convert something in Euros into Pounds

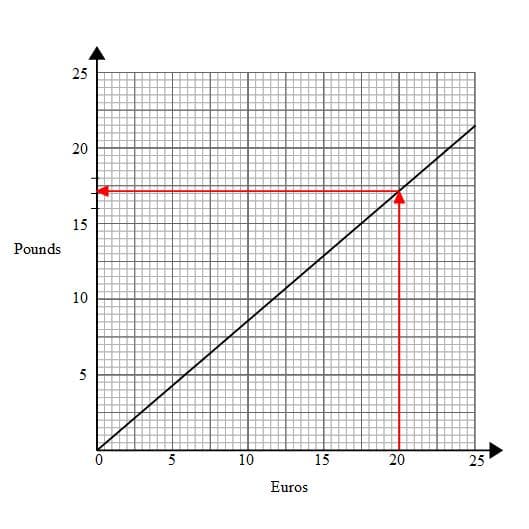

If we convert €20 into pounds we could multiply the answer by 4 to get €80
€20 is just over £17
In an exam question there will be a range of answers, anything between £17 and £17.25 should be acceptable.
I will say €20 = £17.10
We can now multiply by 4
4 × €20 = 4 × £17.10
€80 = £68.40
