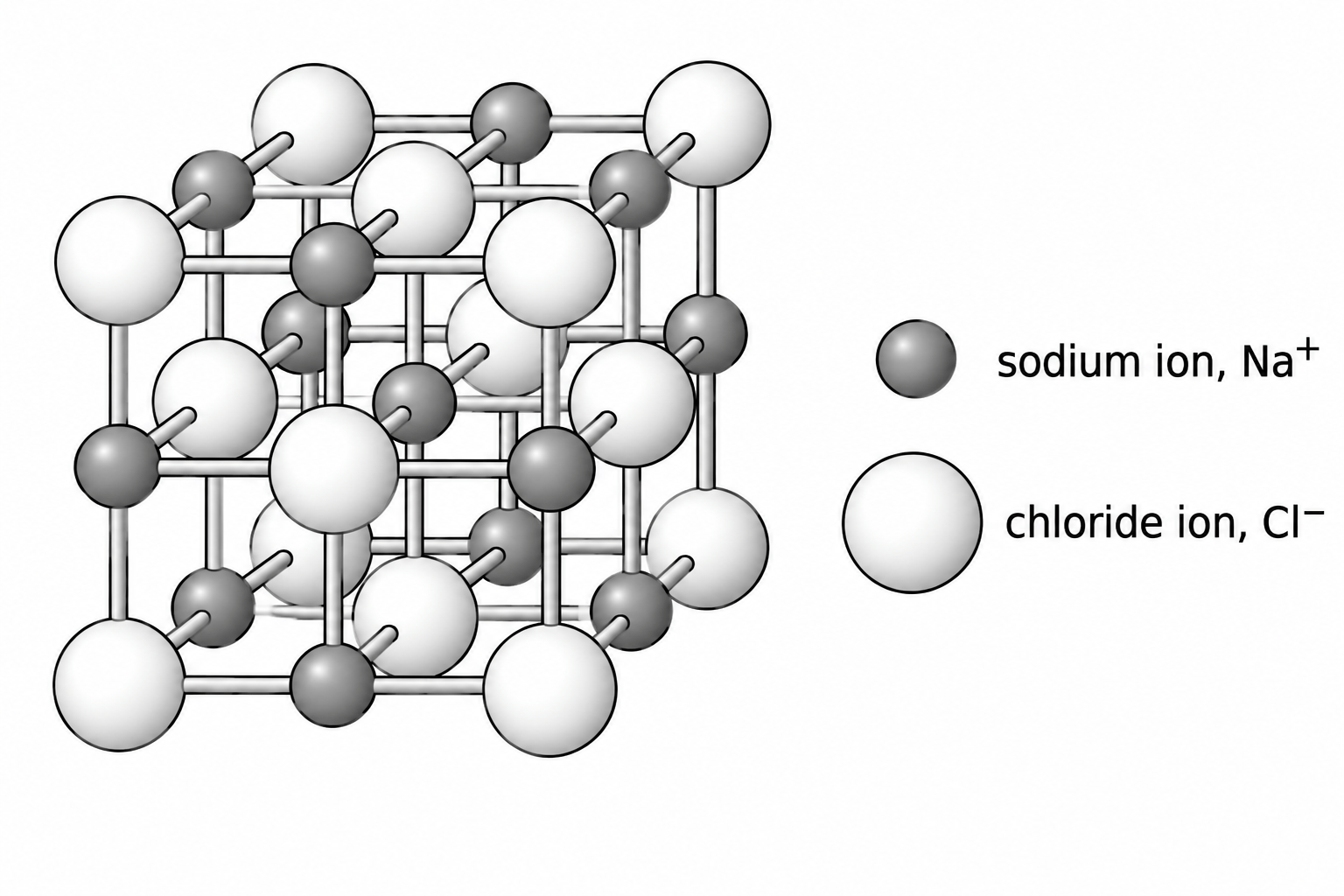

A museum is preparing an interactive display about the particles in an ionic solid. The display designer compares a dot-and-cross diagram with a ball-and-stick model.
The table gives information about one ball in the ball-and-stick model.
| Width of ball | Number of times the ball is wider than the ion represented |
|---|---|
| 4.0 cm | 2.0 × 108 |
State what the dots and crosses represent in a dot-and-cross diagram.
Calculate the width of the ion represented by the ball, in cm.
Describe one piece of information about the formation of ions that the dot-and-cross diagram can show.
Describe one feature of the solid's structure that the ball-and-stick model can show.
Describe one limitation of each representation. Do not refer to differences in scale.
111 exam-style questions on Edexcel GCSE Chemistry 2.5 Types of substance, covering 2.5.1 Classifying substances by structure and bonding, 2.5.2 Properties of ionic and simple molecular substances, 2.5.3 Giant covalent structures: diamond and graphite, 2.5.4 Fullerenes, graphene and simple polymers, 2.5.5 Properties of metals and non-metals, and 2.5.6 Limitations of bonding models and representations. Each one has a worked solution and a mark scheme showing where the marks go.
