Heat energy changes in chemical reactions

EasyMedium
1234567891011121314151617181920212223242526272829303132
Question 18

A student wants to investigate the heat energy released when different metal powders react with excess aqueous copper(II) sulfate solution.

Figure 1 shows the apparatus available in the laboratory. Figure 2 shows a bar chart of the typical results obtained, representing the temperature increase of the solution per mole of metal added for three different metal powders: iron, zinc, and magnesium.

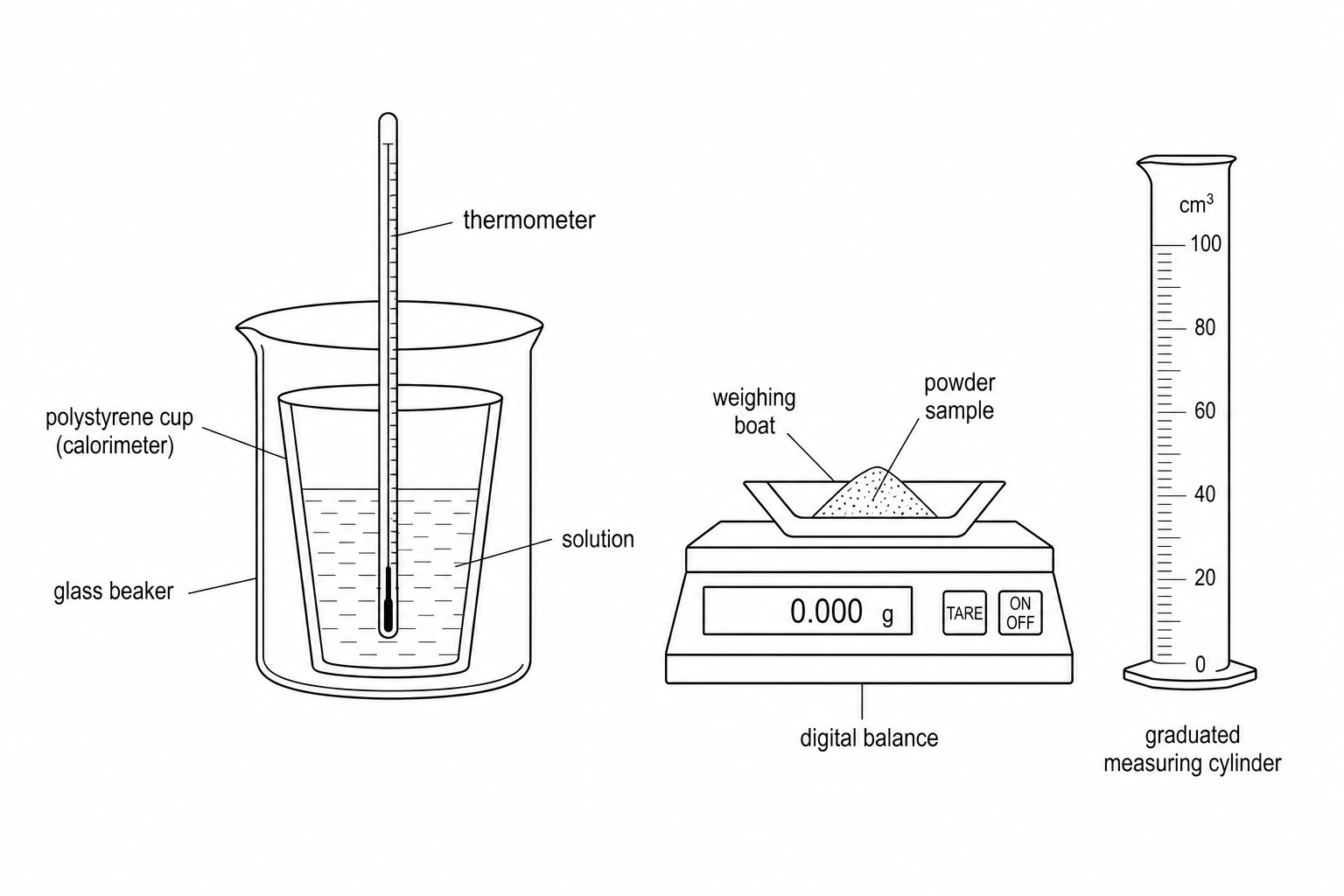

Figure 1: Schematic of the solution calorimetry experimental setup showing a polystyrene cup calorimeter supported in a beaker, containing a solution, with a thermometer inside. Next to it are a weighing boat with powder sample on a digital balance, and a graduated measuring cylinder.

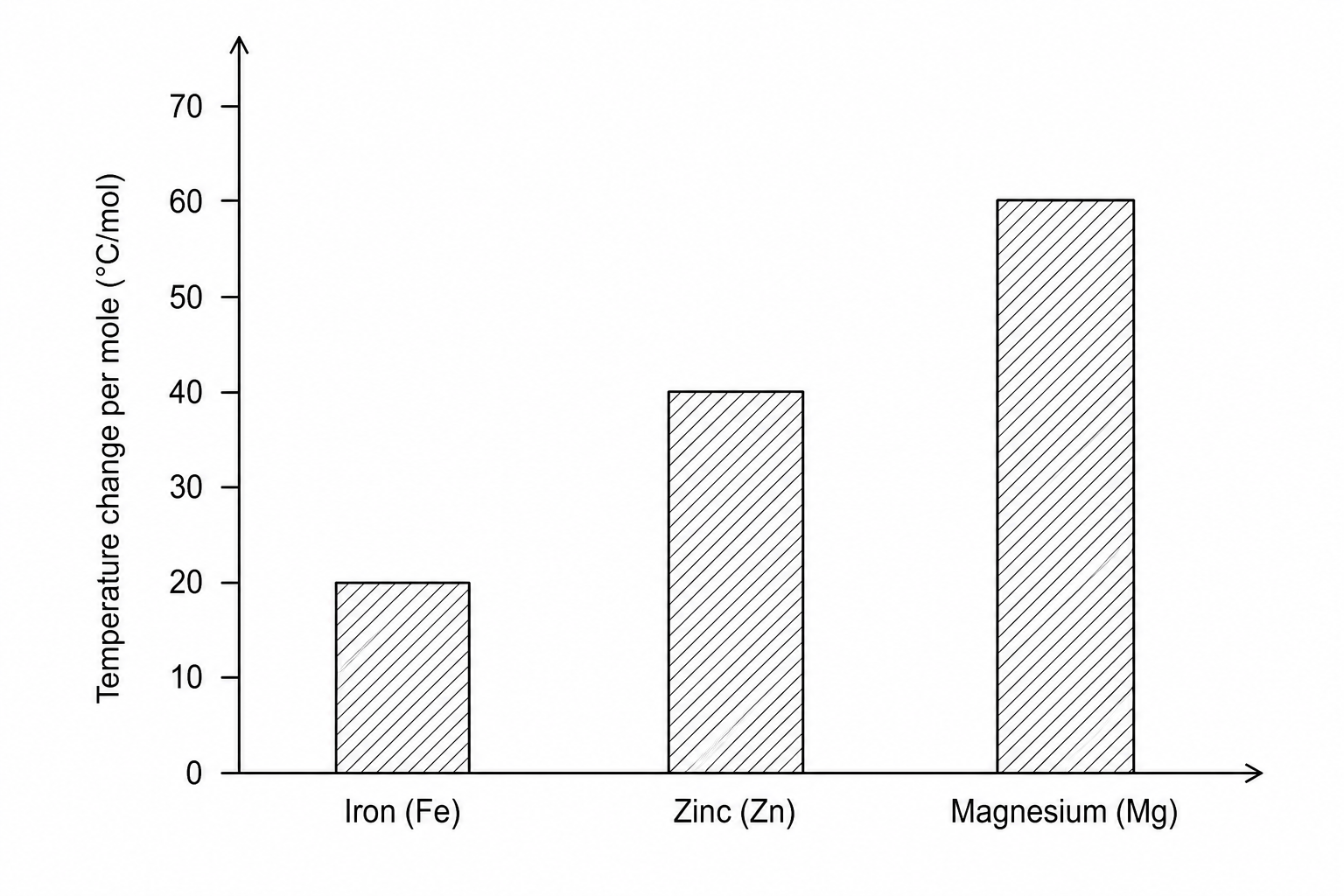

Figure 2: A bar chart illustrating the temperature change per mole of metal added in °C/mol for Iron (Fe), Zinc (Zn), and Magnesium (Mg).

Describe an experimental method, using the apparatus in Figure 1, to obtain results that allow a comparison of the heat energy released per mole by these three different metals.

[6]
