Question 39
Medium

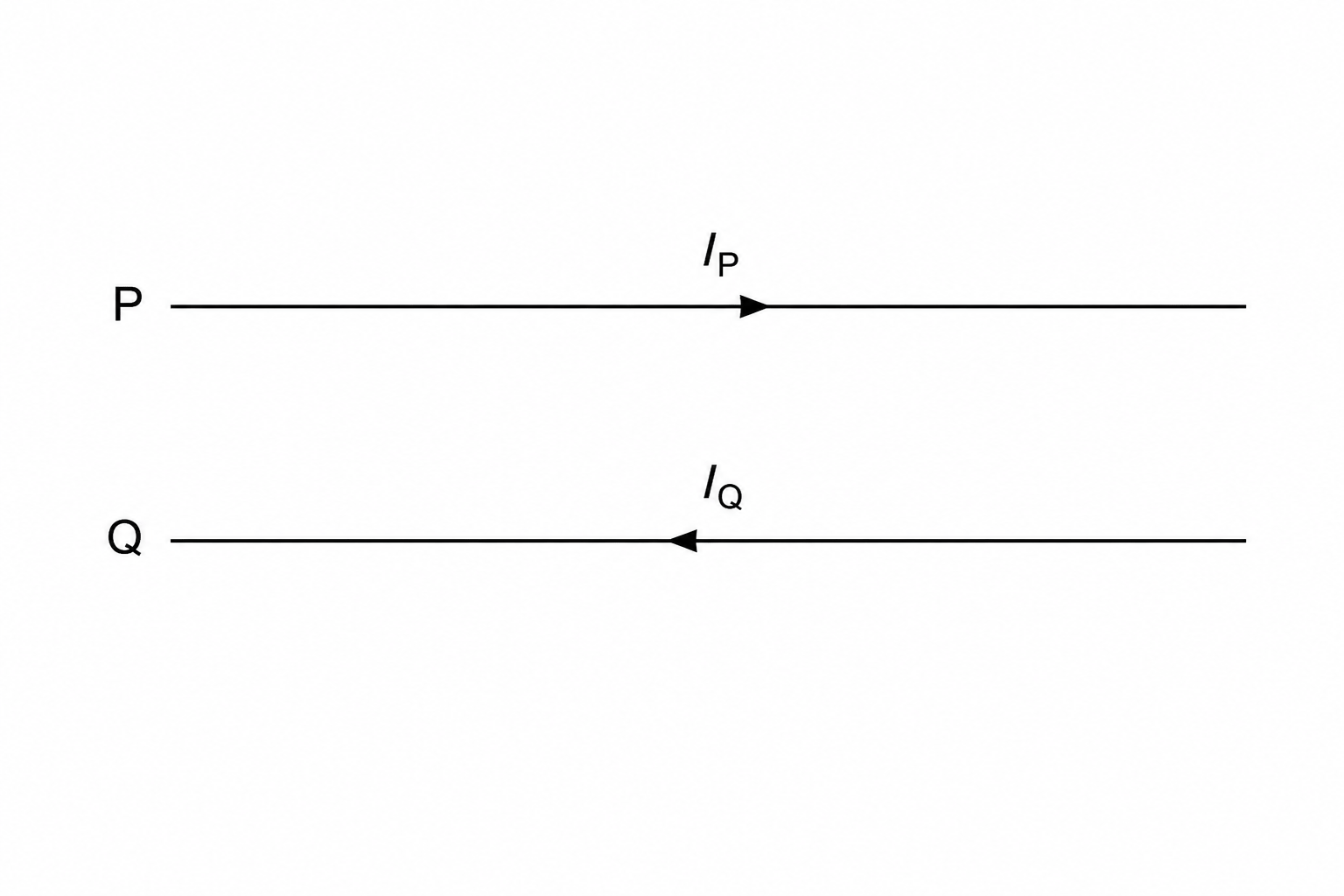

The diagram below shows two long, horizontal, current-carrying conductors, P and Q, that are parallel to each other.

Two parallel current-carrying conductors P and Q

Conductor Q experiences a force because it is in the magnetic field generated by conductor P.

Which row correctly identifies the direction of the magnetic field at Q due to P, and the direction of the magnetic force experienced by Q?

Magnetic field: into the plane of paper; Force: towards the bottom of the page

Magnetic field: out of the plane of paper; Force: towards the top of the page

Magnetic field: into the plane of paper; Force: towards the top of the page

Magnetic field: out of the plane of paper; Force: towards the bottom of the page
