During the electrolysis of a dilute aqueous solution of sodium hydroxide, hydrogen gas is liberated at the negative cathode and oxygen gas is liberated at the positive anode.

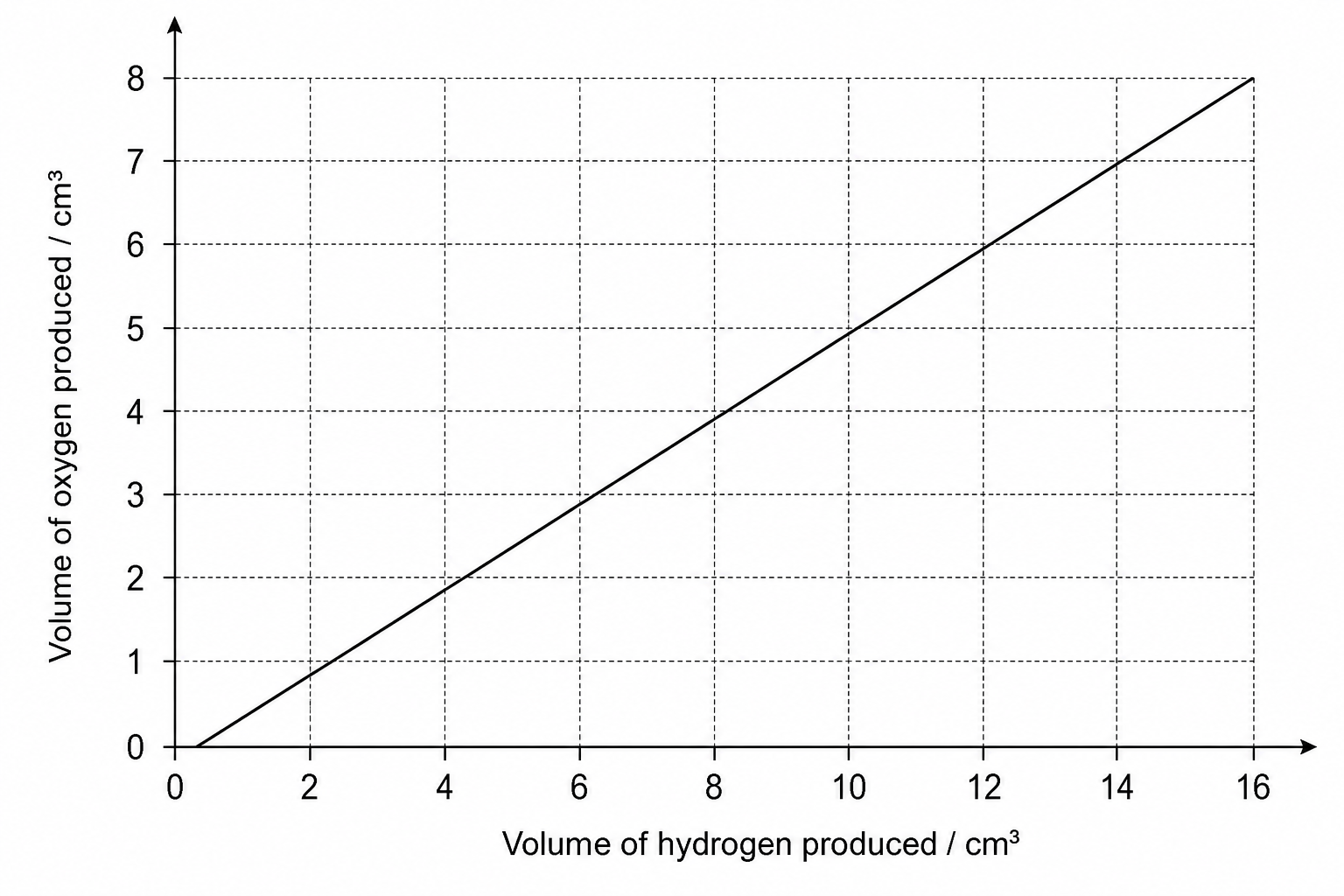

The volume of oxygen gas produced plotted against the volume of hydrogen gas produced under the same temperature and pressure conditions is shown in the graph below:
Use the graph to answer the following:
State the quantitative relationship between the volume of oxygen produced and the volume of hydrogen produced.
Determine the volume of oxygen produced when the volume of hydrogen produced is 13.6 cm313.6\text{ cm}^313.6 cm3.
