Question 4
FA student investigated the effect of the size of a cube on diffusion.
The student cut three cubes of different sizes from a block of pink agar jelly. The pink colour disappears when acid diffuses into the jelly.
The student placed the cubes in a beaker of dilute acid. The student timed how long it took for each cube to become completely colourless.

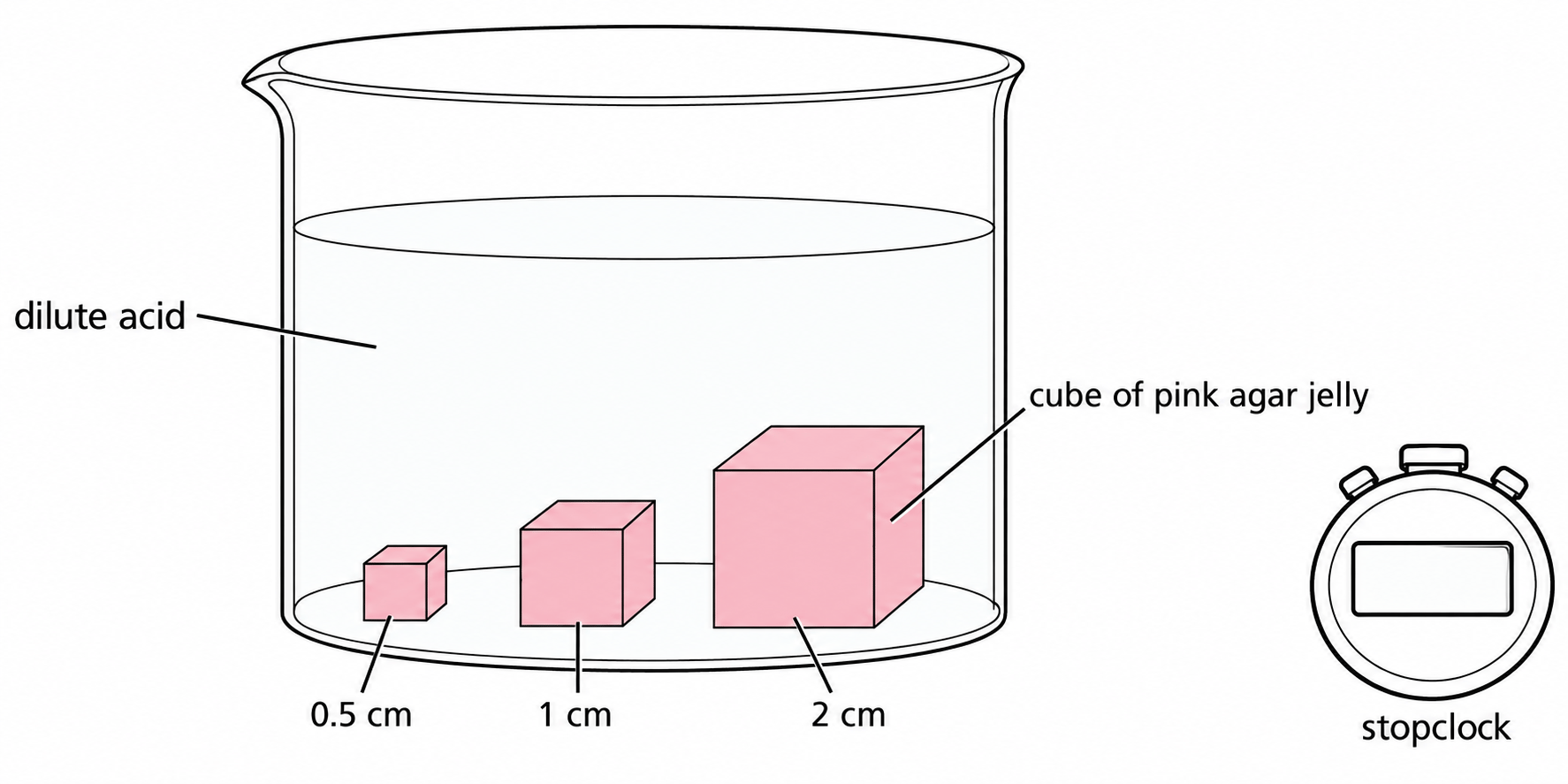

The Figure shows the apparatus.
Figure
The Table shows the results.
Table
| Length of side of cube in cm | Surface area : volume ratio | Time taken to become colourless in minutes |
|---|---|---|
| 0.5 | Z | 3 |
| 1 | 6:16:16:1 | 11 |
| 2 | 3:13:13:1 | 44 |
a.[1]
Give the independent variable in this investigation.
b.[2]
Give two variables that the student should control.
c.[2]
Calculate value Z.
Give your answer in the form n:1n:1n:1.
d.[3]
Explain the results.
