Question 11
Hard

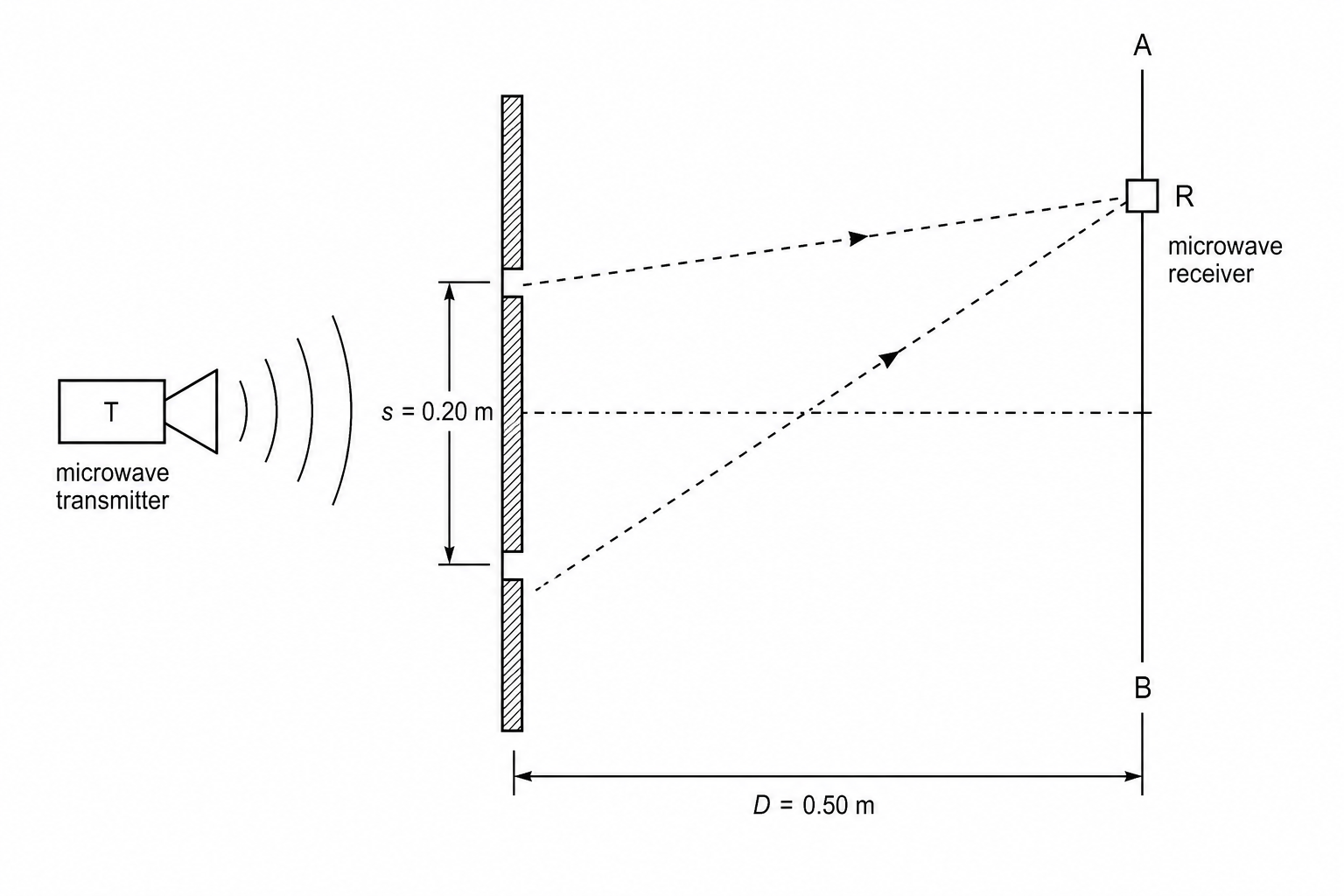

A double-slit arrangement is used to determine the wavelength of microwaves. The apparatus is set up as shown in the diagram below:

Diagram of the experimental setup

The two slits act as coherent sources with a slit separation of s=0.20 ms = 0.20\text{ m}s=0.20 m. The perpendicular distance from the slits to the line AB AB\,AB is D=0.50 mD = 0.50\text{ m}D=0.50 m. The receiver R R\,R is initially at the midpoint of ABABAB, which is equidistant from both slits. R R\,R can be moved up to 0.25 m towards either A A\,A or B B\,B along the line ABABAB.

1.

Suggest why Young's double-slit equation should not be used to calculate the wavelength in this experiment.

[2]
2.

The actual wavelength of the microwaves is known to be approximately 1.5 cm. Deduce whether this experimental setup is suitable for determining the wavelength. Support your answer with a path difference calculation.

[5]
