Question 15
Medium

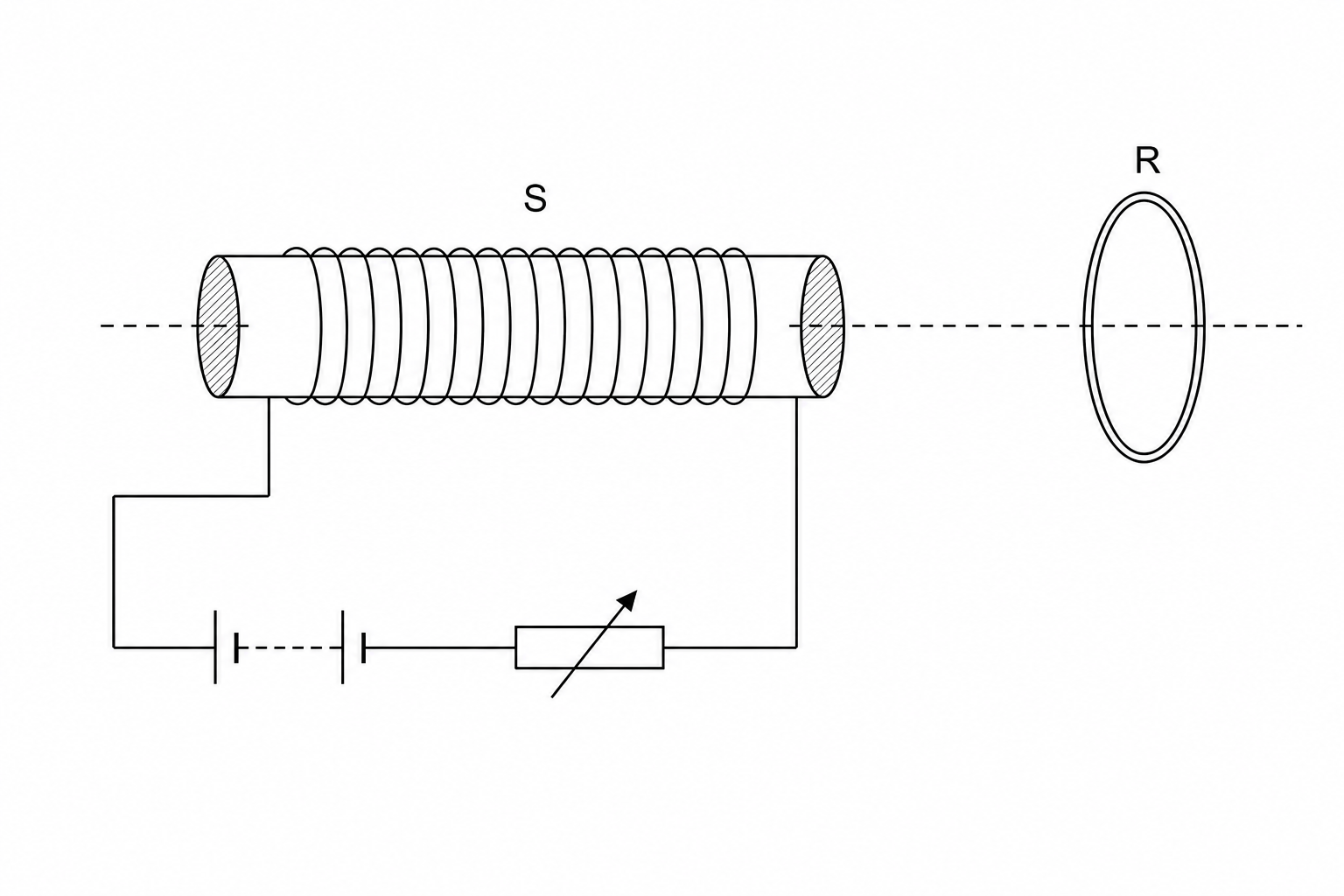

A solenoid S S\,S is connected in series with a battery and a variable resistor. A thin, closed copper ring R R\,R is placed co-axially with, and to the right of, SSS, as shown in the diagram.

Electromagnetic induction experiment setup with a solenoid S and a copper ring R

Initially, a steady current is flowing through the solenoid. The resistance of the variable resistor is then rapidly decreased.

Which of the following describes the magnetic force acting on the ring R R\,R during the time interval in which the resistance is being decreased?

transient and directed to the left

transient and directed to the right

constant and directed to the left

constant and directed to the right
