Question 16
Easy

In the series circuit shown below, the potential difference across the active sensor is 3.3 V3.3\text{ V}3.3 V when it is fully operational.

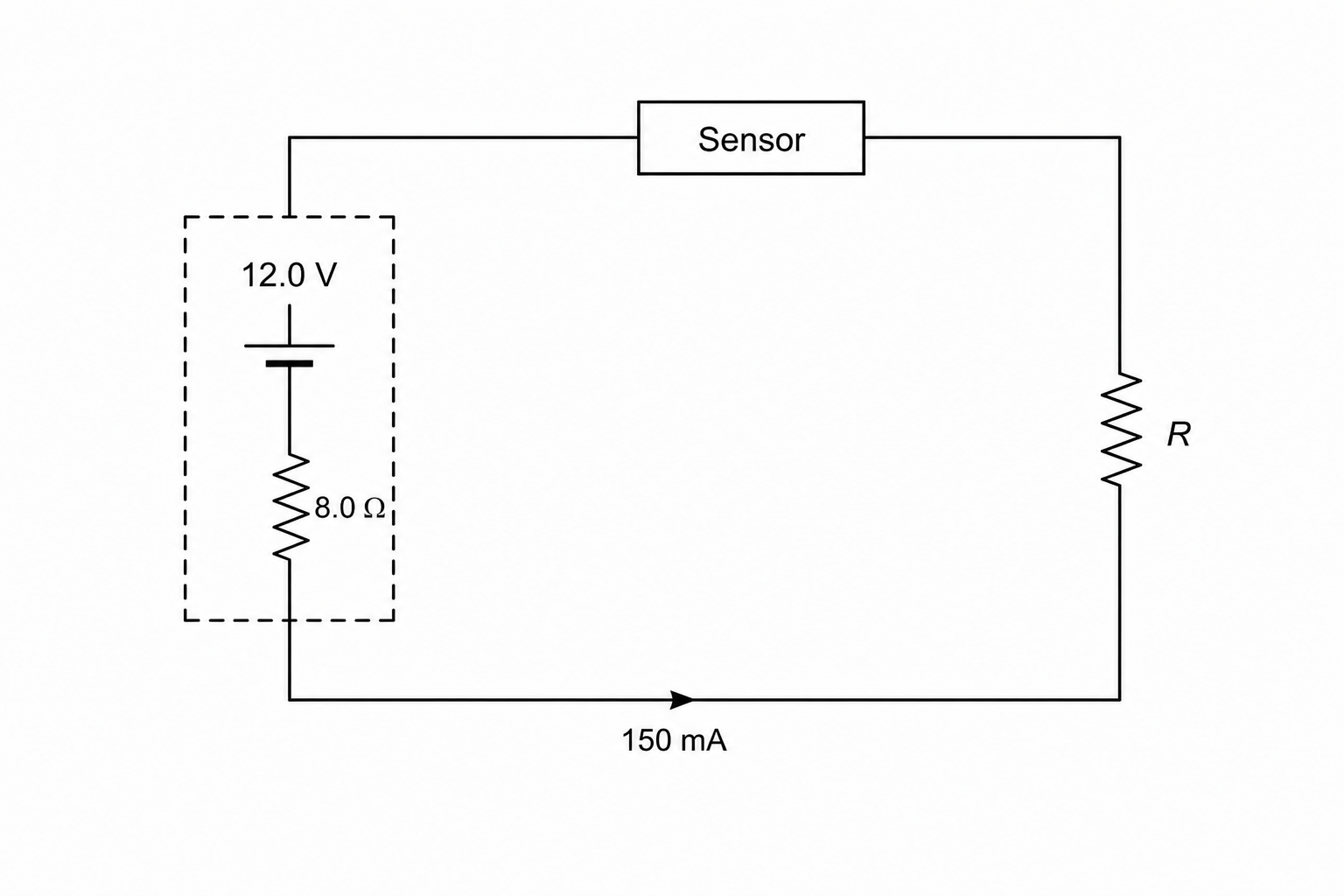

Series circuit containing a battery, a sensor, and a resistor

The current in the circuit is 150 mA150\text{ mA}150 mA. What is the value of the resistor RRR?

36 Ω36\,\Omega36Ω

50 Ω50\,\Omega50Ω

58 Ω58\,\Omega58Ω

72 Ω72\,\Omega72Ω
