Question 14
Easy

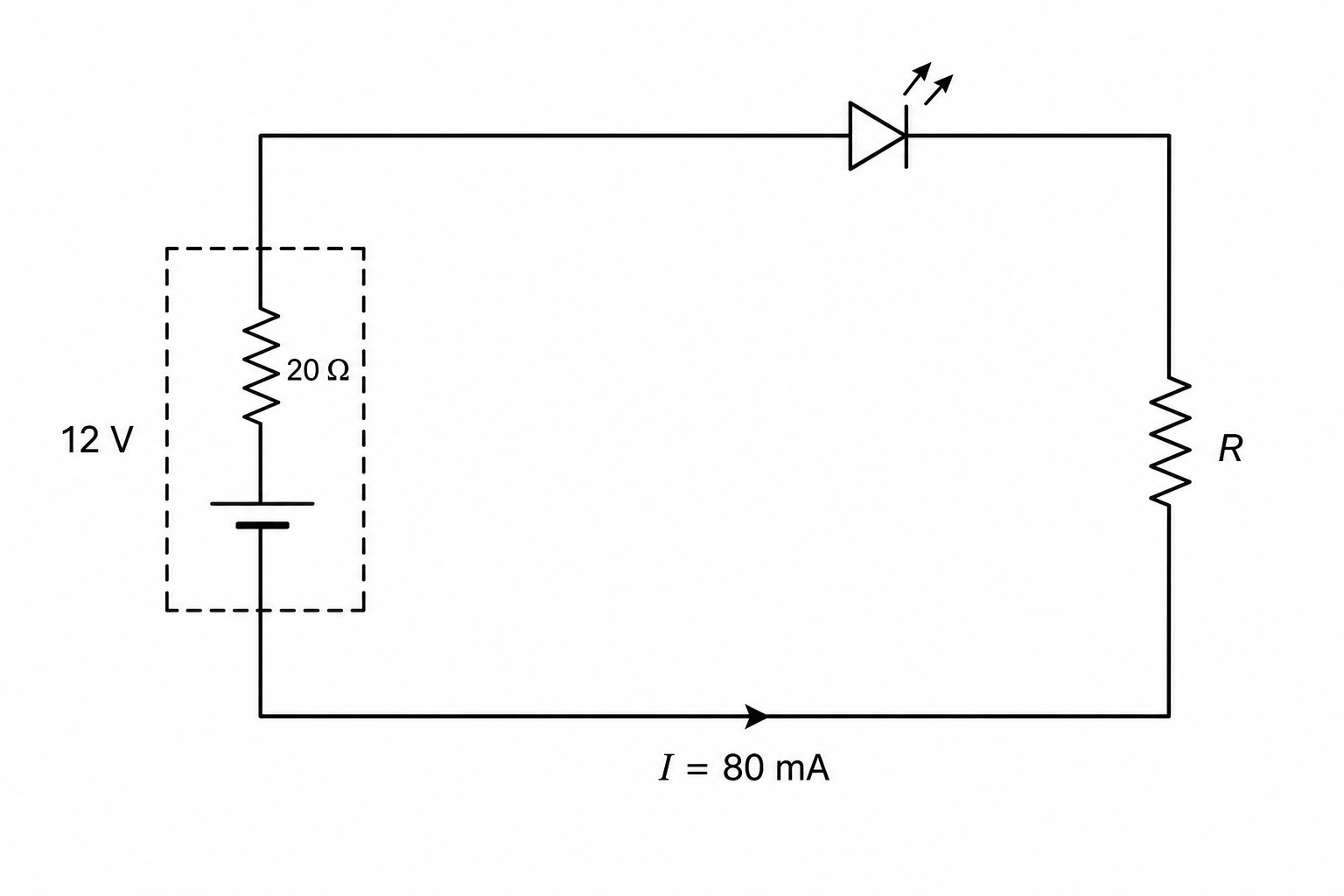

In the series circuit shown below, the potential difference across the light-emitting diode (LED) is 2.4 V2.4\text{ V}2.4 V when it is emitting light.

Series Circuit Diagram

The current in the circuit is 80 mA80\text{ mA}80 mA. What is the value of the resistor RRR?

120 Ω120\,\Omega120Ω

100 Ω100\,\Omega100Ω

140 Ω140\,\Omega140Ω

130 Ω130\,\Omega130Ω
