Question 15

Easy

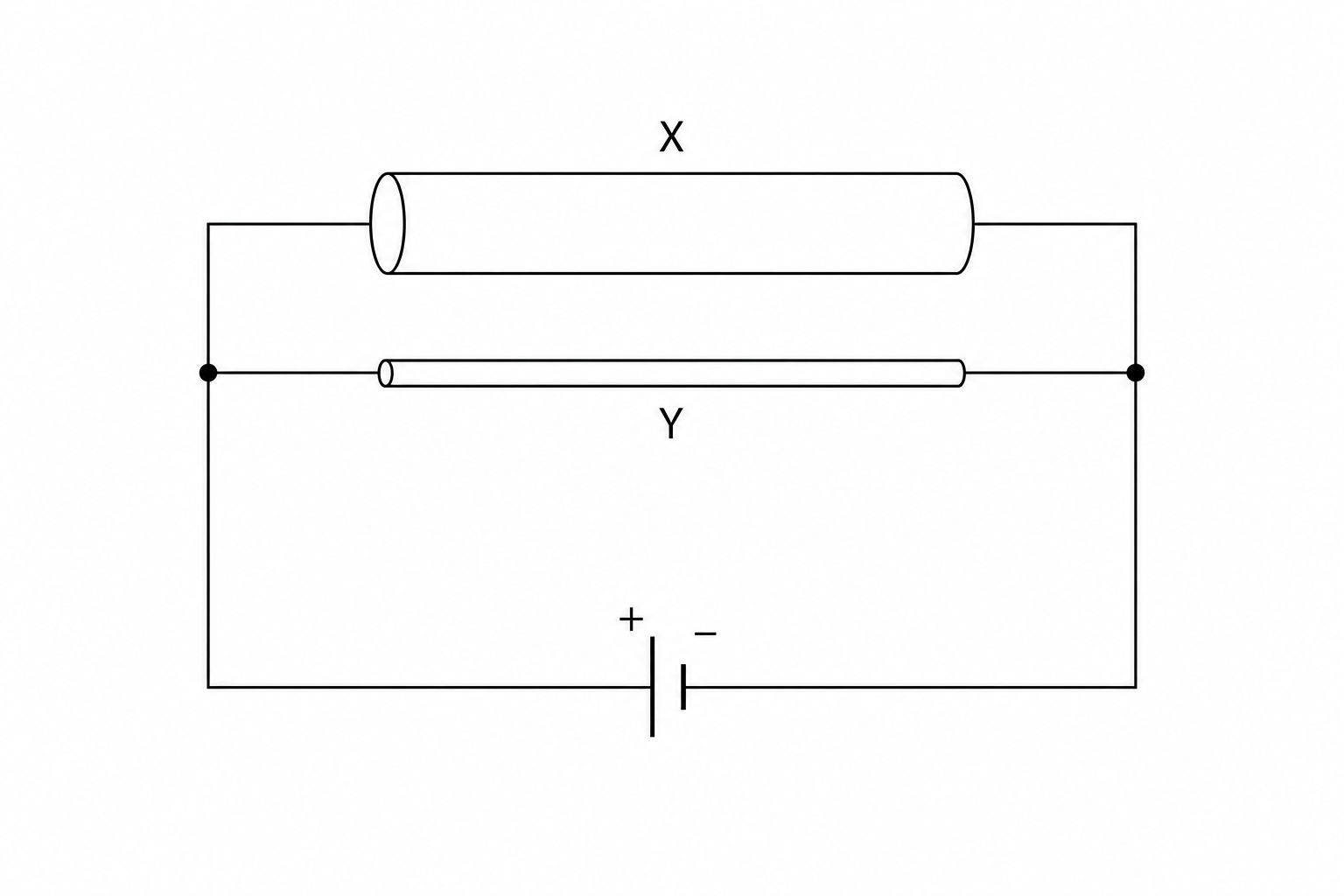

Two cylindrical wires $X$ and $Y$ of equal length are made of the same material. The diameter of $X$ is greater than that of $Y$ . $X$ and $Y$ are connected in parallel, and this combination is connected to a power supply. A schematic diagram showing two horizontal cylindrical wires, X and Y, connected in parallel. Wire X has a visibly larger diameter than wire Y, but both have the same length. Their left ends are connected together by a conducting wire, and their right ends are similarly connected together. These common junctions are connected to a power supply. Which two quantities are the same for $X$ and $Y$ ?

current and resistivity

resistivity and potential difference across each wire

resistance and potential difference across each wire

current and resistance
