Question 11
Medium

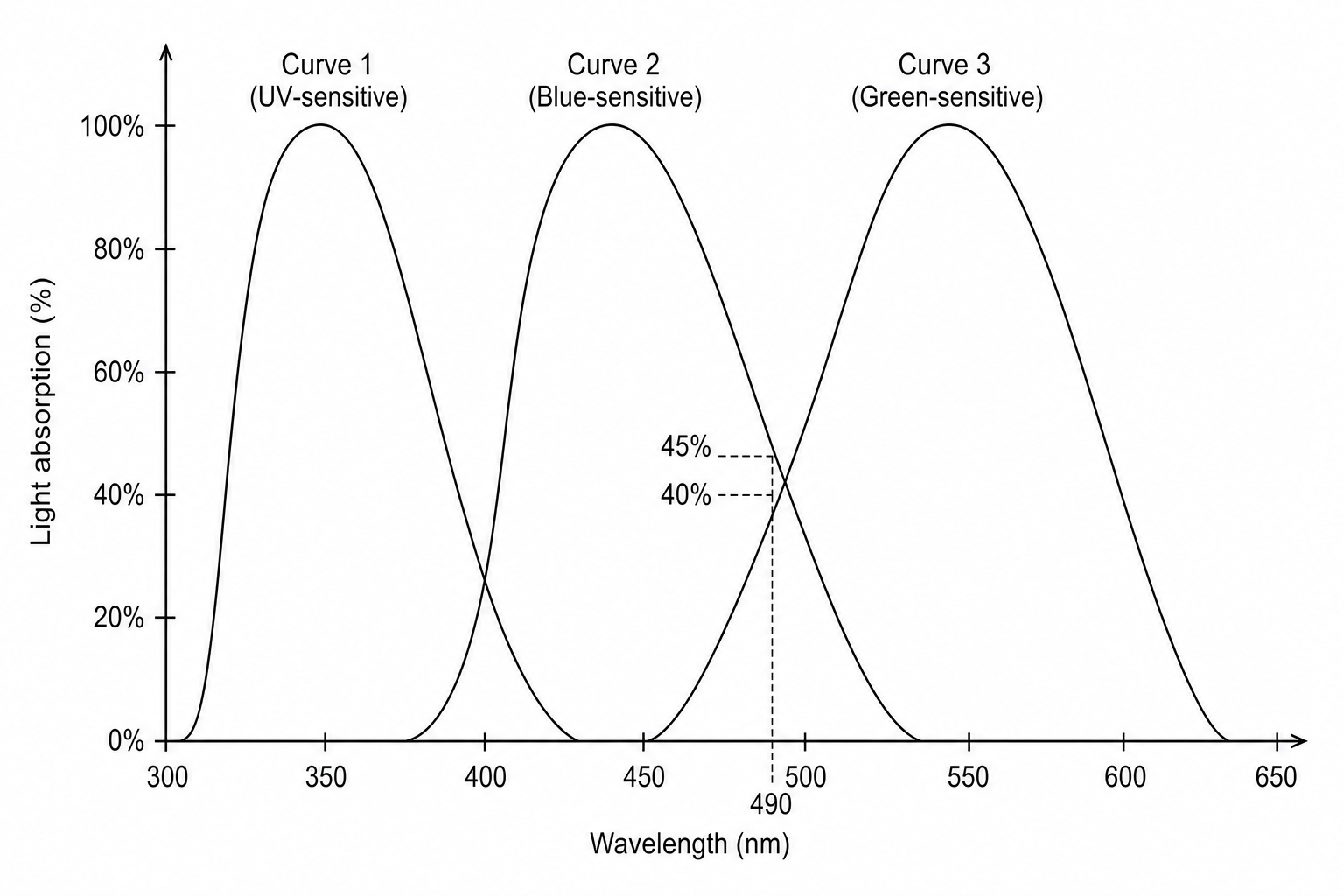

Figure 1 shows the wavelengths of light absorbed by three types of photoreceptors found in the honeybee retina.

Figure 1: Wavelengths of light absorbed by three types of photoreceptors in the honeybee retina.

Use Figure 1 and your knowledge of photoreceptors to explain how a blue-green colour is perceived by a honeybee at a wavelength of 490 nm490\text{ nm}490 nm.

[3]
