Question 4
F

A model of a chain reaction is used with two samples of a fissionable material, P and Q. Figure shows the number of fissions in each round of the model.

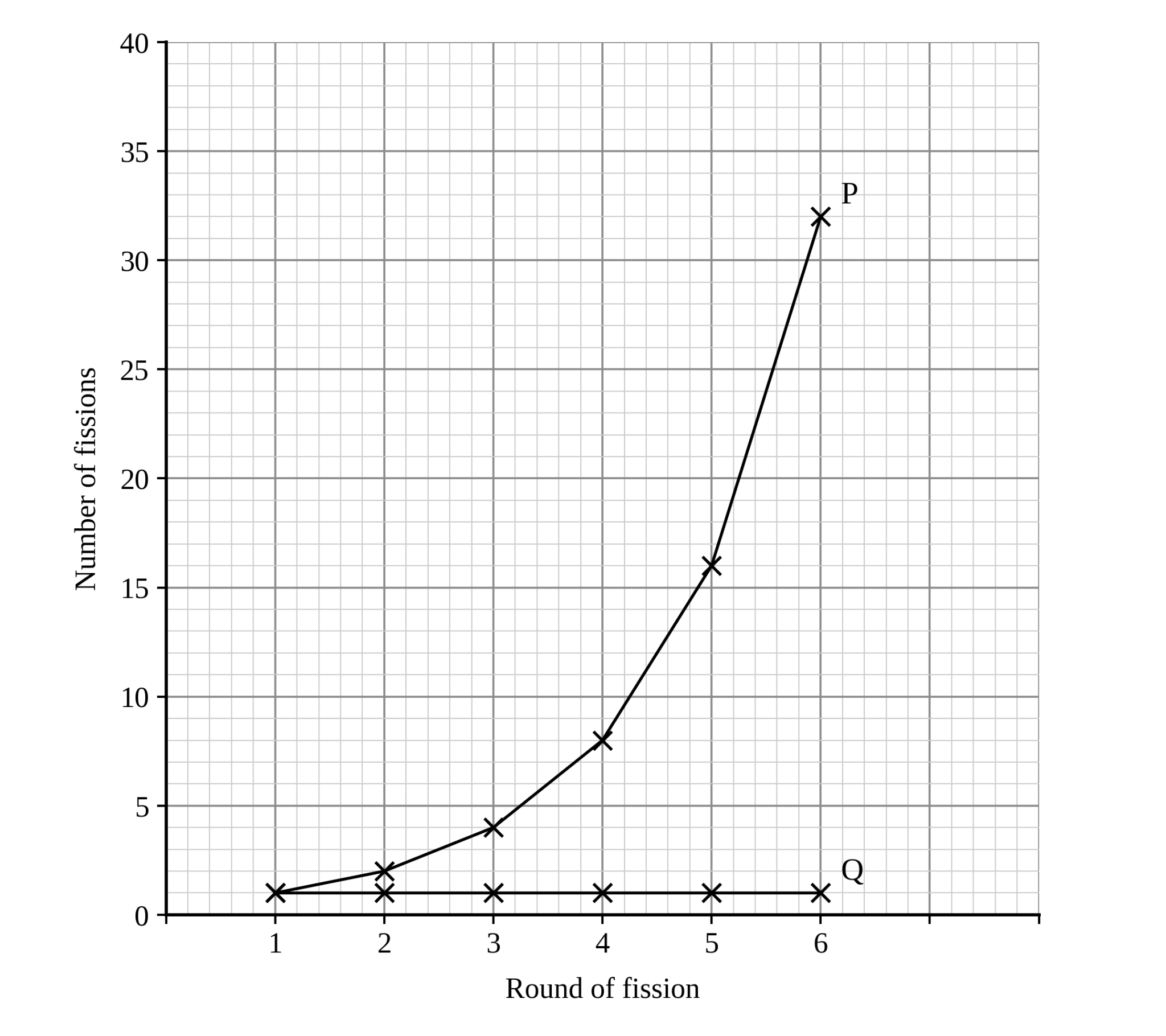

Figure: The number of fissions in each round of the model, for samples P and Q


a.

Use Figure to determine the number of fissions in round 5 for sample P.

[1]
b.

Give two conclusions about sample Q that can be made from Figure. Do not use numbers from the graph in your answer.

[2]
c.

Suggest which sample, P or Q, models what happens inside a nuclear reactor. Give a reason for your answer.

[2]
