Question 7

The table shows some information about the weekly rainfall, in mm, recorded in City X over a year.

MinimumLower QuartileMedianUpper QuartileMaximum
515243650
a.

Draw a box plot for this information.

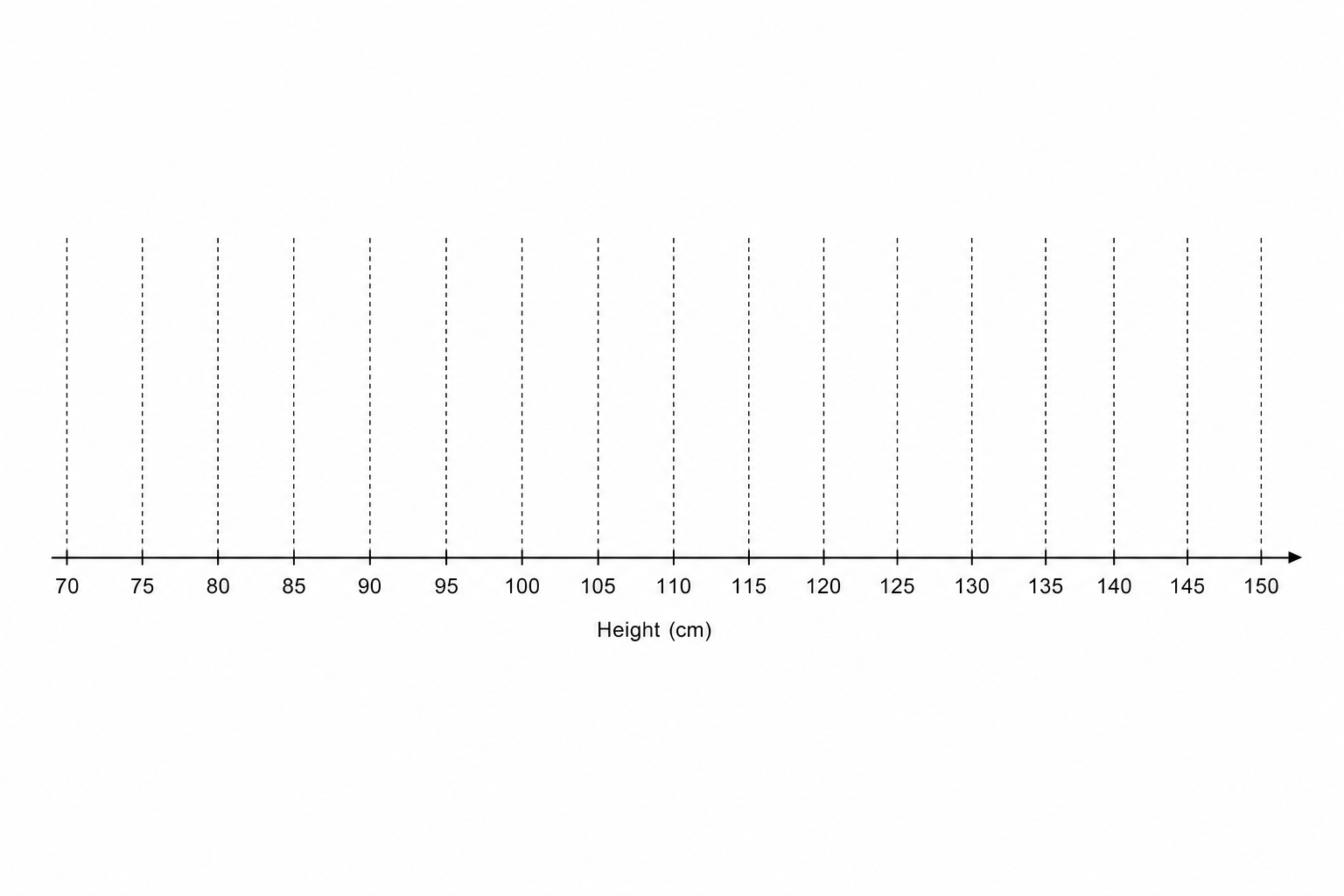

A blank grid for drawing a box plot.

[2]
b.

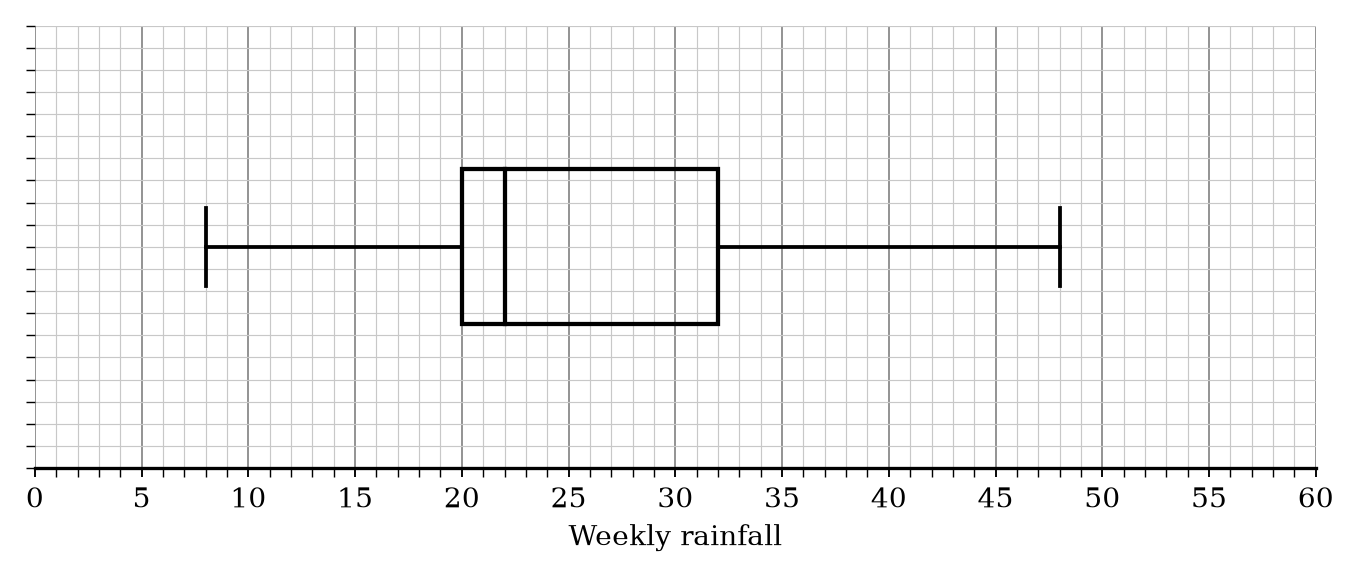

The box plot below shows the distribution of the weekly rainfall recorded in City Y.

A box plot on a grid for City Y showing: Min 8, LQ 20, Median 22, UQ 32, Max 48.

Compare the distribution of the weekly rainfall in City X and City Y.

[2]
