The table shows some information about the weekly rainfall, in mm, recorded in City X over a year.
| Minimum | Lower Quartile | Median | Upper Quartile | Maximum |
|---|---|---|---|---|
| 5 | 15 | 24 | 36 | 50 |
a.[2]

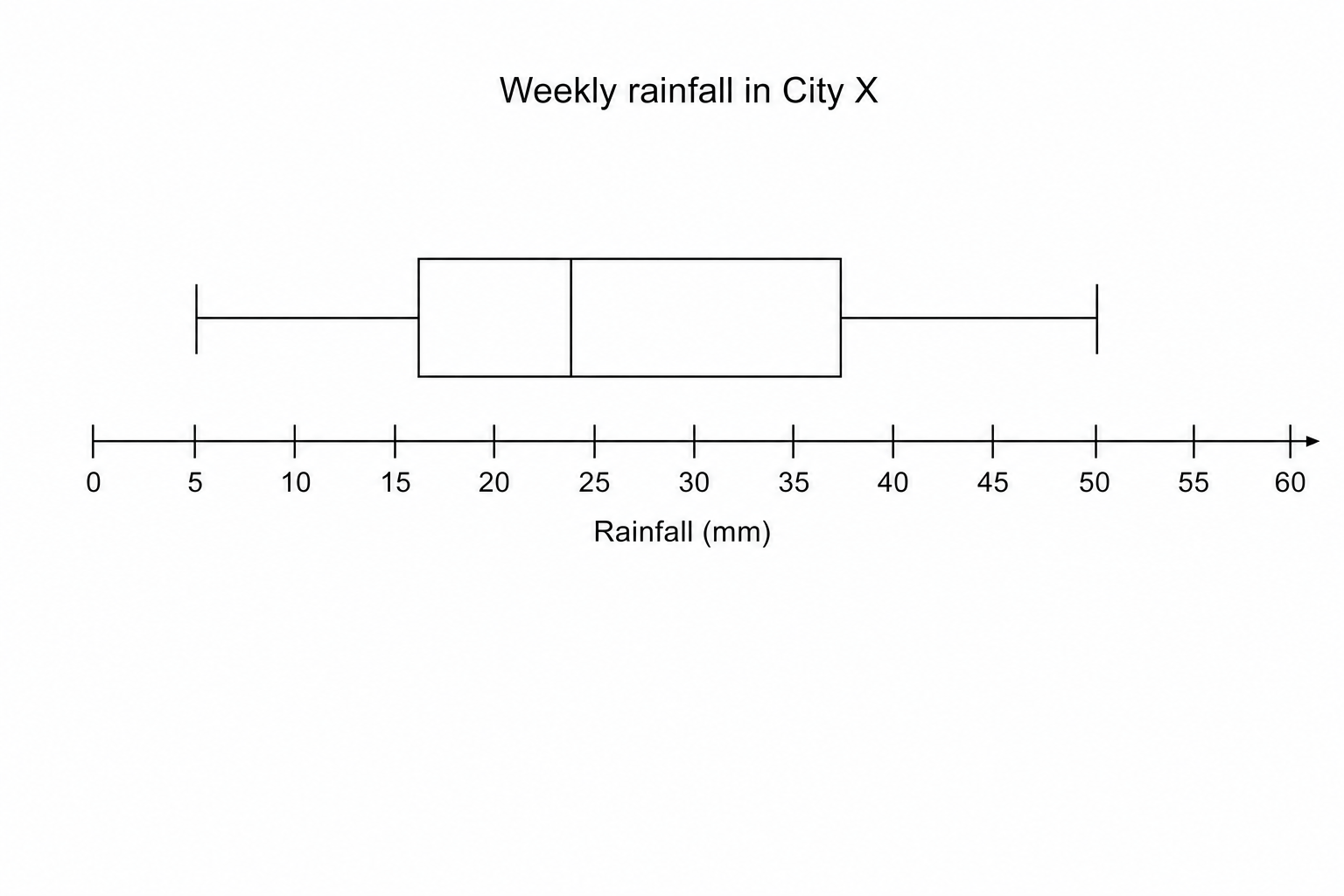

Draw a box plot for this information.
b.[2]

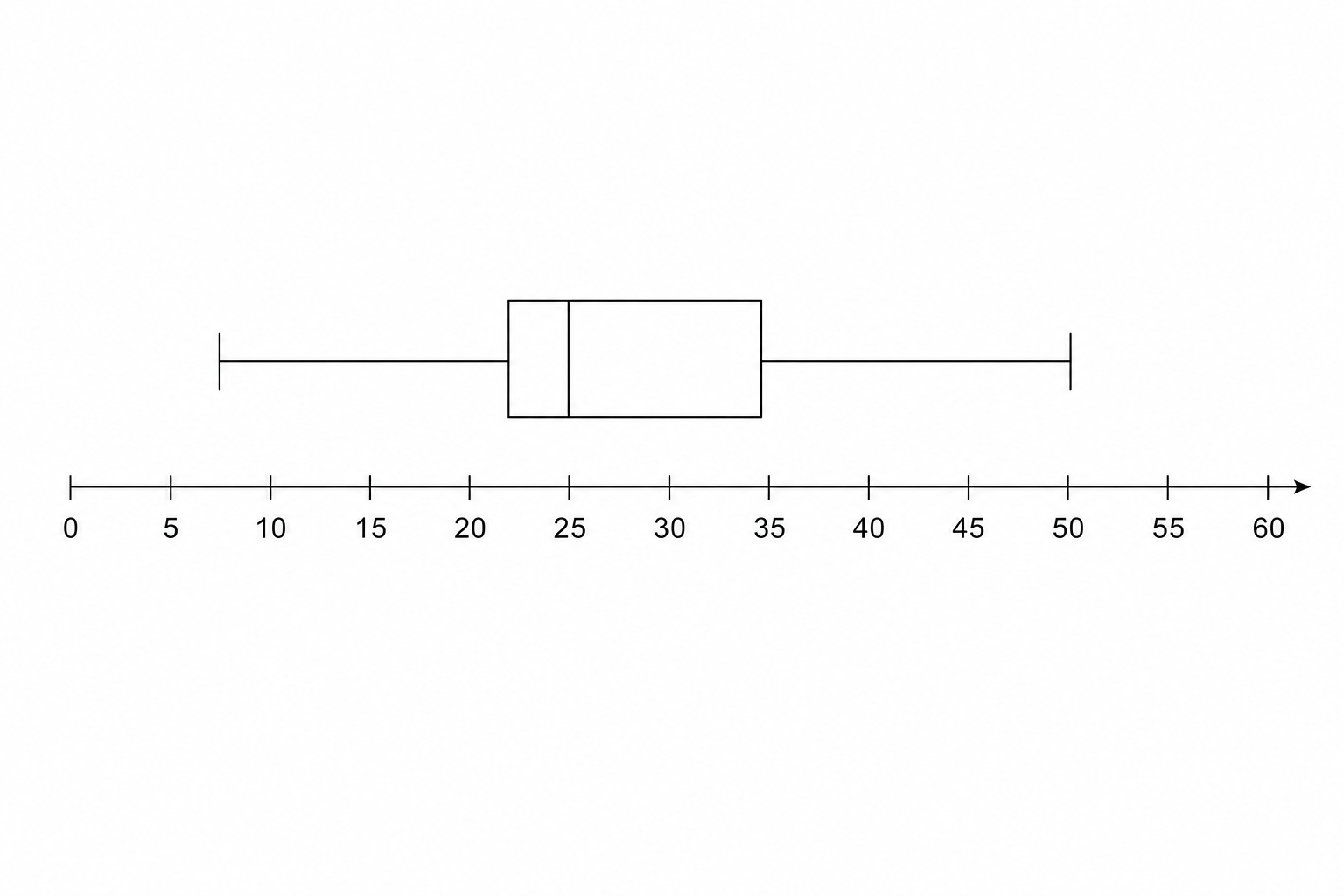

The box plot below shows the distribution of the weekly rainfall recorded in City Y.
Compare the distribution of the weekly rainfall in City X and City Y.
Box Plots Questions
Practise OCR GCSE Maths Box Plots with exam-style questions for Foundation and Higher tier. 36 questions, matched to the OCR GCSE Maths (J560) specification and written in the written papers style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
