Question 21

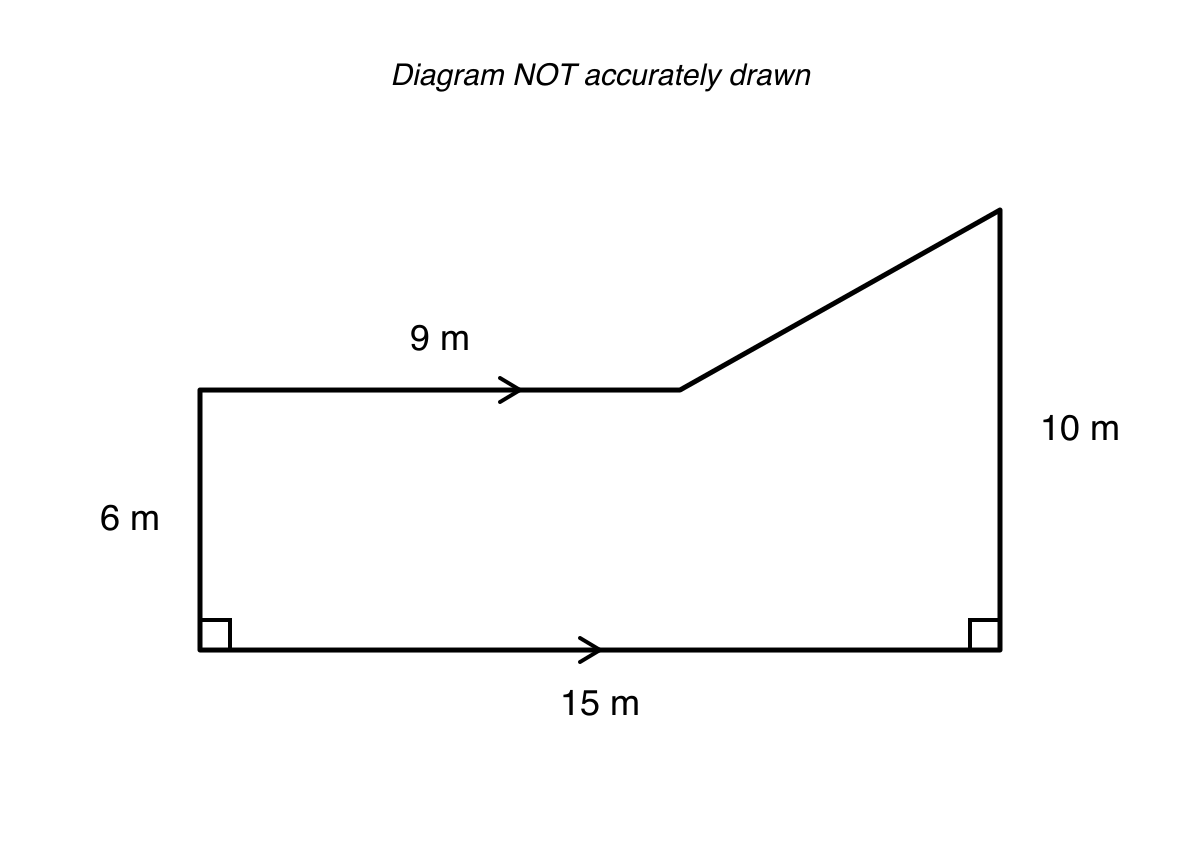

The diagram shows the floor plan of an art gallery.

  • The front wall (base) is 15 m wide.
  • The left-side wall is 6 m long.
  • The right-side wall is 10 m long.
  • The back wall is parallel to the front wall for 9 m from the left, then slants to meet the right-side wall.

Diagram NOT accurately drawn

Floor plan of an art gallery with a 15 m front wall, 6 m left wall, 10 m right wall, and a 9 m horizontal section of back wall followed by a sloping section.

Work out the total floor area of the art gallery.

[4]
