Boolean logic
6
0/3

An automated greenhouse ventilation system opens the ventilation hatch (VVV) if the humidity is high (HHH) and the temperature is hot (TTT), or if the manual override is not active (MMM).

The table identifies the three inputs:

InputDescription
HHumidity is high
TTemperature is hot
MManual override is active

The logic system is represented by the expression:

V=(H AND T) OR NOT M V = (H \text{ AND } T) \text{ OR NOT } M V=(H AND T) OR NOT M

Complete the logic diagram below by identifying which logic gate (AND, OR, or NOT) belongs in each of the dashed boxes labeled Box 1, Box 2, and Box 3.

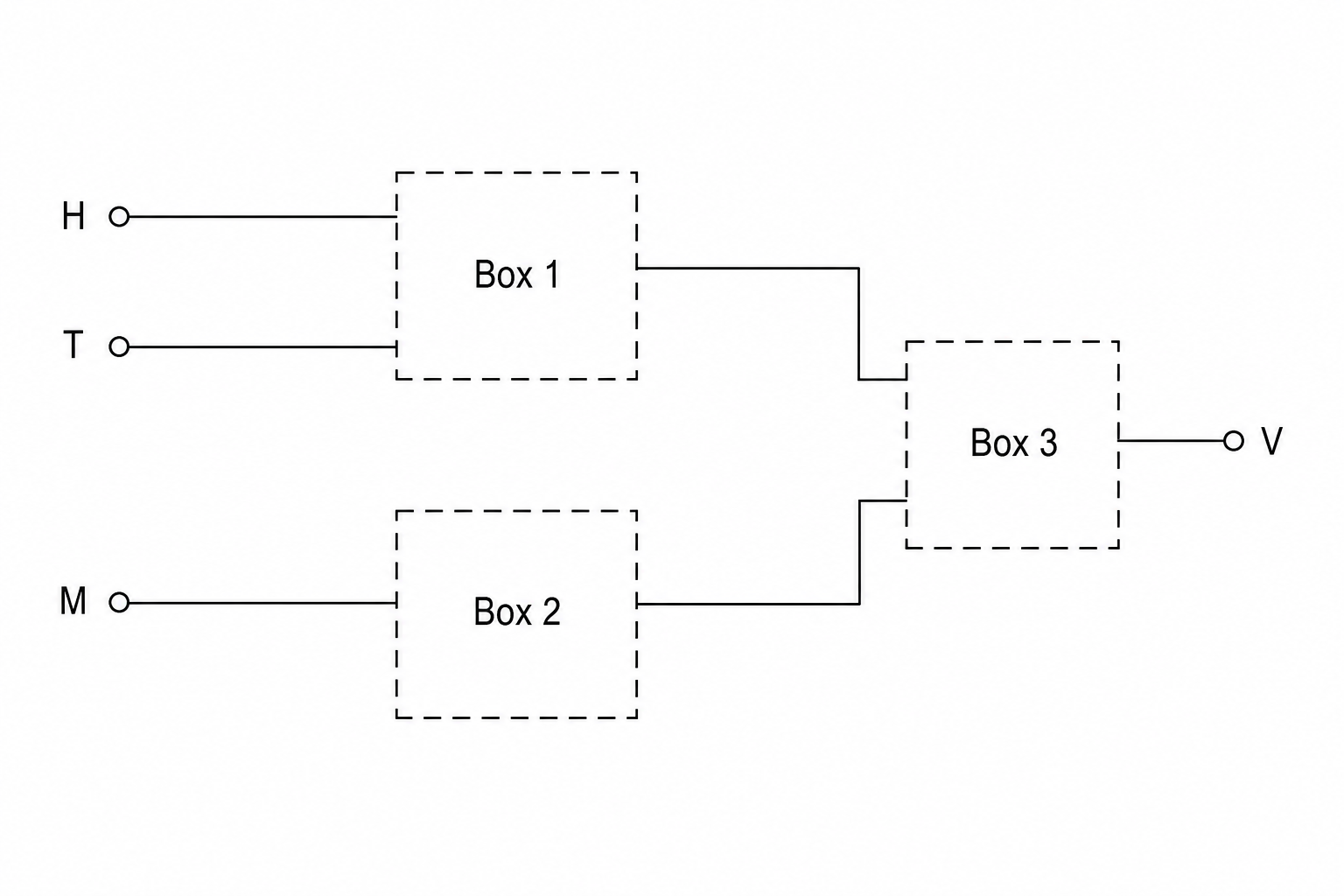

A logic diagram with three inputs on the left: H, T, and M. Inputs H and T connect to the inputs of a dashed rectangular box labeled Box 1. Input M connects to a dashed rectangular box labeled Box 2. The output of Box 1 and the output of Box 2 are connected to the inputs of a third dashed rectangular box labeled Box 3. The output of Box 3 is labeled V.

Specify the gate for each box:

  • Box 1
  • Box 2
  • Box 3
[3]
