Identify the correct logic diagram for the Boolean expression: Q=NOT (C OR D)Q = \text{NOT } (C \text{ OR } D)Q=NOT (C OR D).

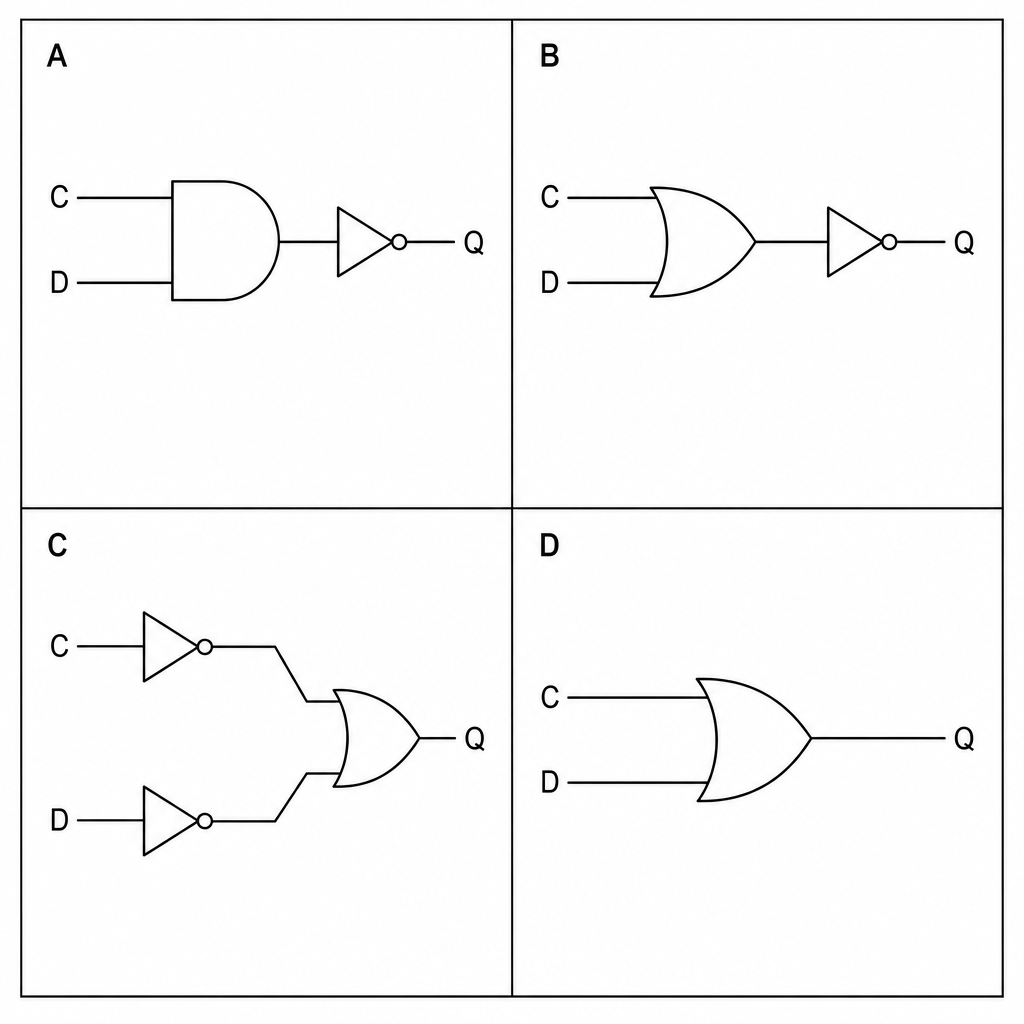

Logic gate diagrams labeled A, B, C, and D

A

B

C

D

Boolean logic Questions

Practise OCR GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 27 questions, matched to the OCR GCSE Computer Science (J277) specification and written in Component 01 and Component 02 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
