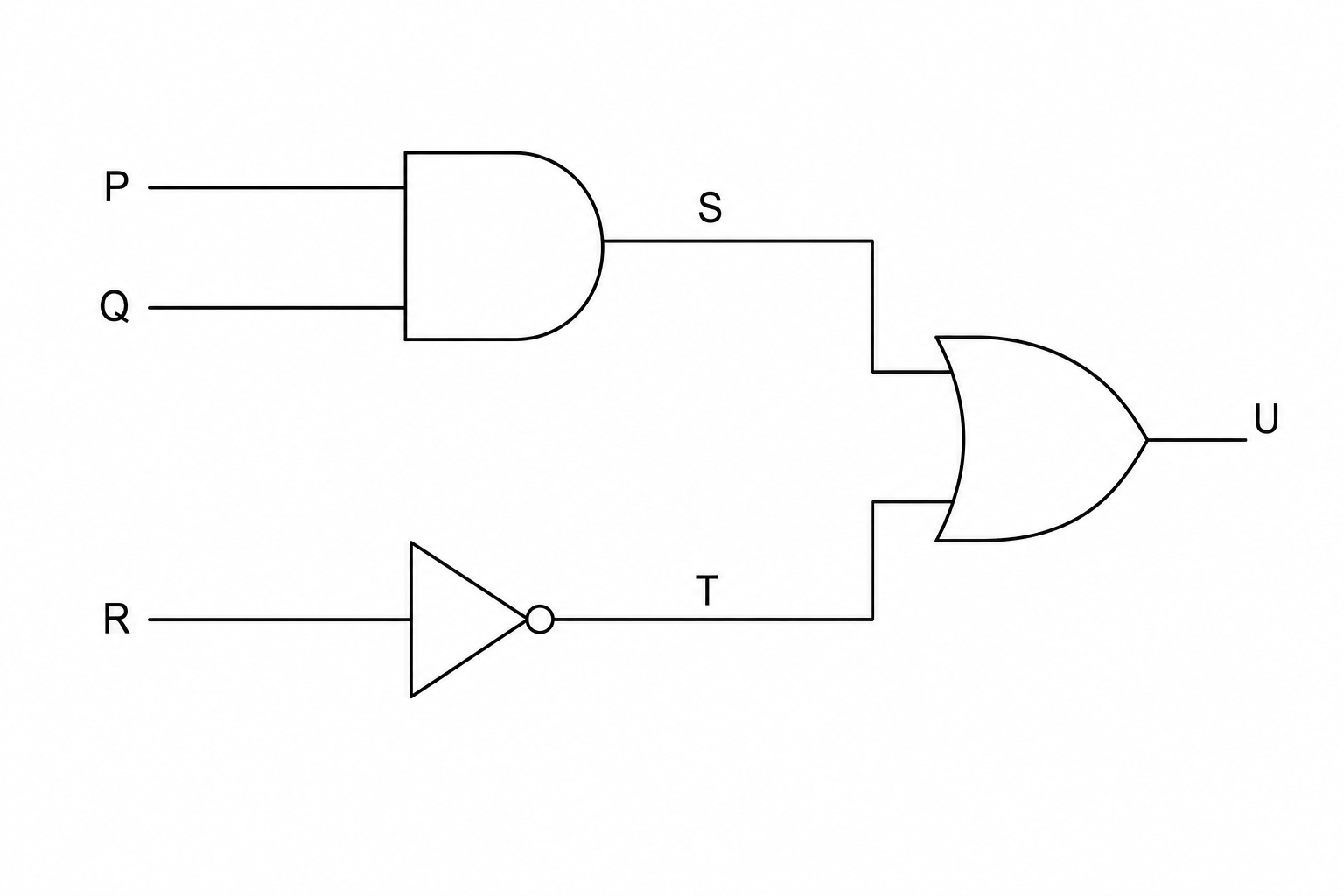

Complete the following truth table for the logic circuit shown in Figure 1 by filling in the empty cells.
| P | Q | R | S | T | U |
|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 1 | 1 |
| 0 | 0 | 1 | 0 | 0 | 0 |
| 0 | 1 | 0 | 0 | 1 | 1 |
| 0 | 1 | 1 | 0 | 0 | 0 |
| 1 | 0 | 0 | |||
| 1 | 0 | 1 | 0 | 0 | 0 |
| 1 | 1 | 0 | 1 | ||
| 1 | 1 | 1 |
Boolean logic Questions
