Table 1 shows a truth table for a digital logic circuit.
Table 1
| X | Y | Z | W | V | U |
|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 1 |
| 0 | 0 | 1 | 0 | 0 | 1 |
| 0 | 1 | 0 | 1 | 0 | 1 |
| 0 | 1 | 1 | 1 | 1 | 0 |
| 1 | 0 | 0 | 1 | 0 | 1 |
| 1 | 0 | 1 | 1 | 1 | 0 |
| 1 | 1 | 0 | 0 | 0 | 1 |
| 1 | 1 | 1 | 0 | 0 | 1 |

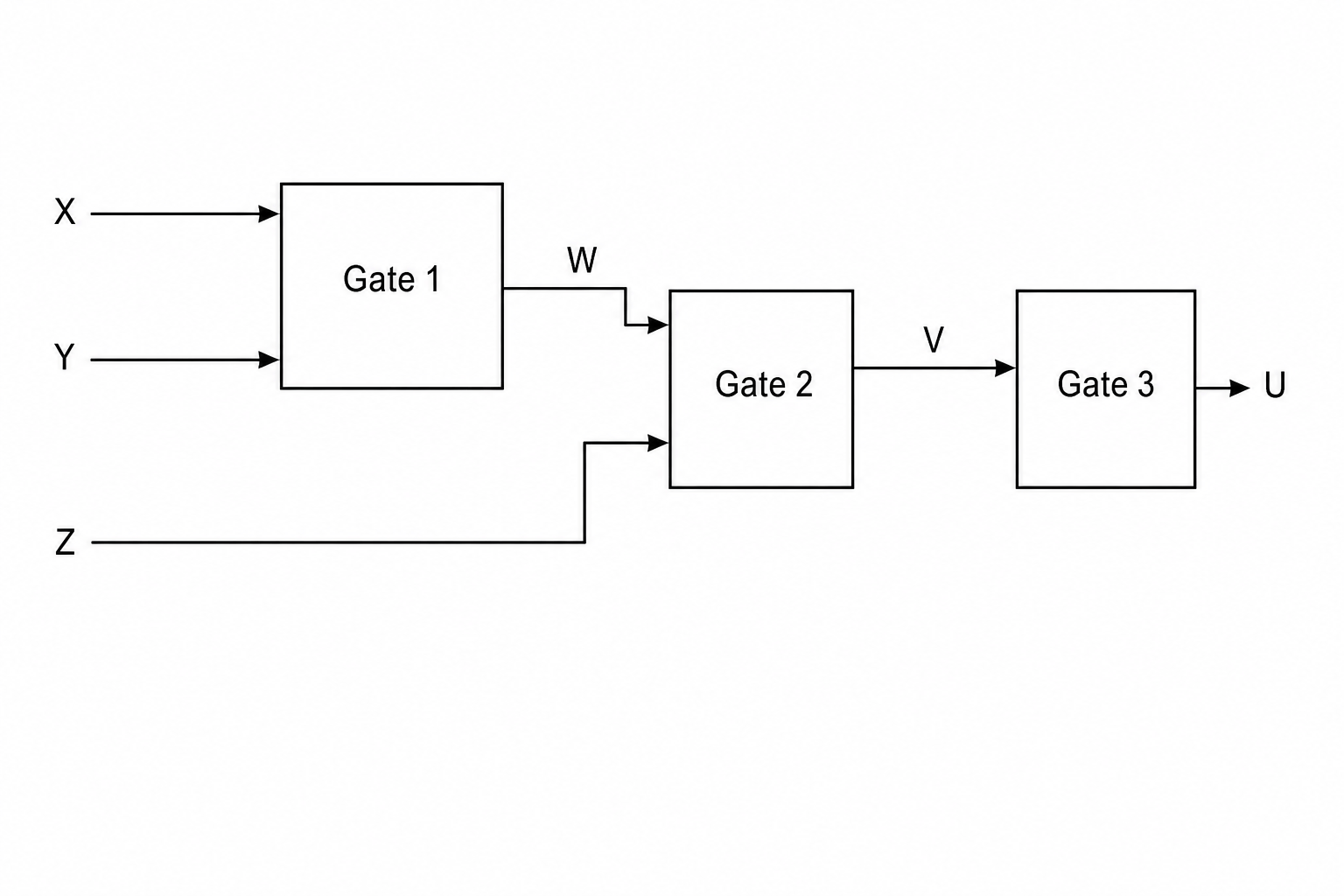

Complete the logic circuit below by identifying the name of the correct logic gate for each of the three empty boxes: Gate 1, Gate 2, and Gate 3.
The completed logic circuit must match the functionality represented by the truth table in Table 1.
Boolean logic Questions
