Question 15
Medium

A battery of electromotive force (e.m.f.) 15.0 V and of negligible internal resistance is used in the circuit below.

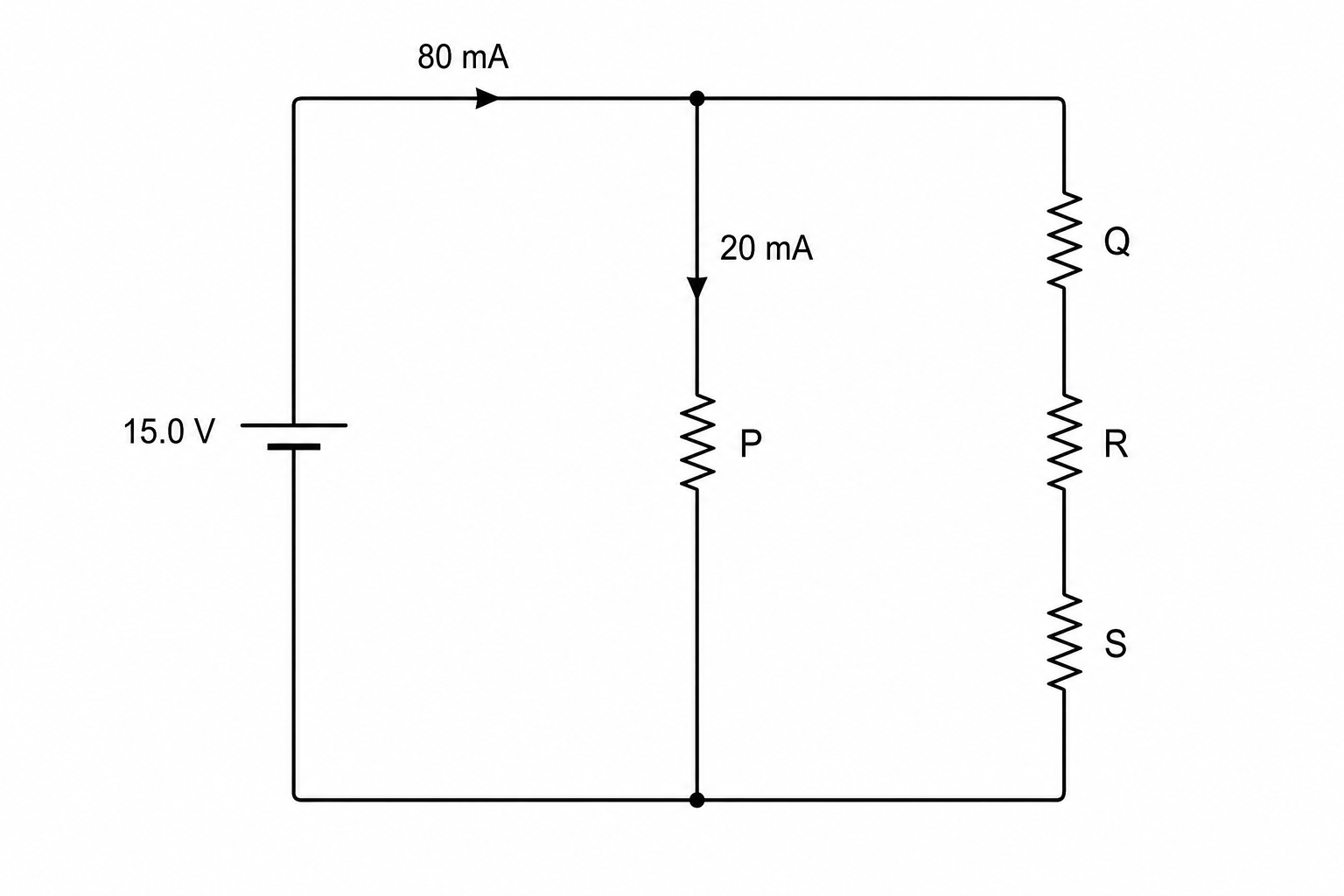

Circuit Diagram

The current from the battery is 80 mA. The current in the resistor P P\,P is 20 mA. The resistors QQQ, RRR, and S S\,S are identical.

What is the power dissipated in the resistor RRR?

100 mW100\text{ mW}100 mW

300 mW300\text{ mW}300 mW

400 mW400\text{ mW}400 mW

900 mW900\text{ mW}900 mW
