Question 6
Medium

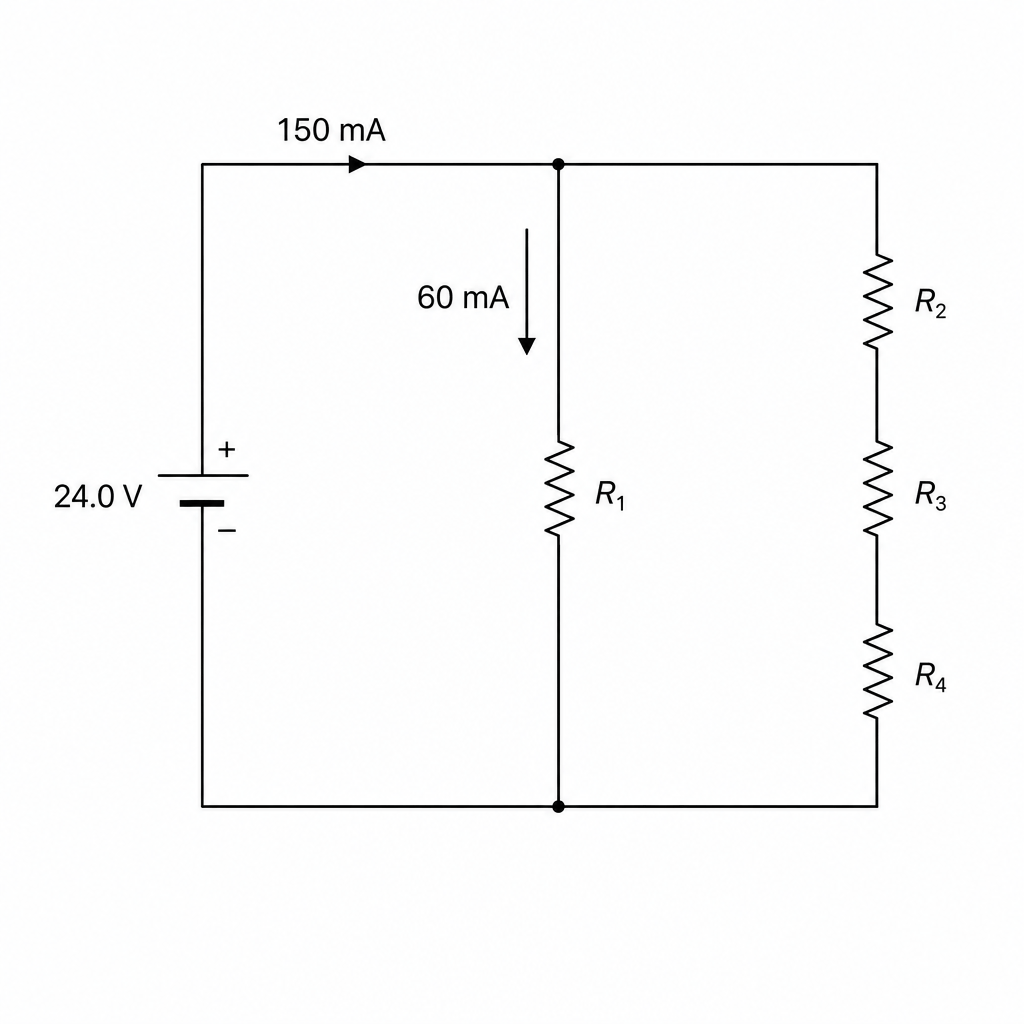

A battery of electromotive force (e.m.f.) 24.0 V and of negligible internal resistance is used in the circuit below.

Circuit Diagram

The current from the battery is 150 mA. The current in resistor R1 R_1\,R1​ is 60 mA. Resistors R2R_2R2​, R3R_3R3​, and R4 R_4\,R4​ are identical.

What is the power dissipated in resistor R3R_3R3​?

480 mW480\text{ mW}480 mW

720 mW720\text{ mW}720 mW

1080 mW1080\text{ mW}1080 mW

2160 mW2160\text{ mW}2160 mW
