Question 34
Medium

A circular calibration coil on a spacecraft is initially held in a vertical orientation. A constant direct current passes through the coil, producing a magnetic field. At the center of the coil, QQQ, the magnetic flux density is entirely horizontal, with a magnitude of BHB_{\text{H}}BH​.

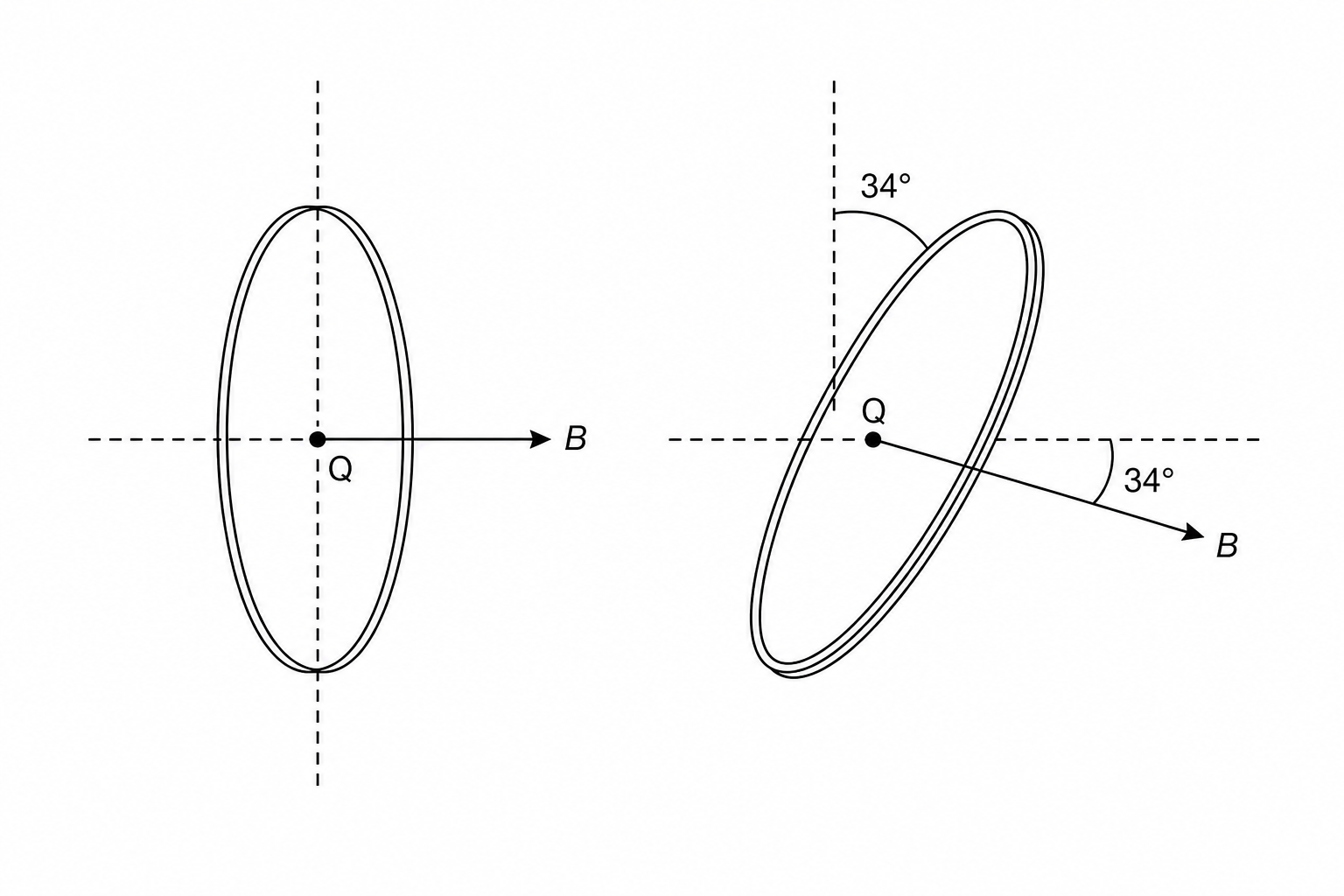

The coil is then rotated about a horizontal axis through QQQ by an angle of 34∘34^\circ34∘, so that the plane of the coil makes an angle of 34∘34^\circ34∘ with the vertical, as shown in the diagram below. The current in the coil remains unchanged.

alt text

Determine the percentage change in the horizontal component of the magnetic flux density, BHB_{\text{H}}BH​, at point QQQ caused by this rotation. Show your working.

[4]
