Question 8

An engineer is testing composite bungee-cord linkages joined together by metal carabiners. She stretches different linkages horizontally against a steel rule using a tensioning winch.

For each linkage, she records:

  • the number of bungee-cord elements
  • the length of the linkage when the tension is 8.0 N8.0\text{ N}8.0 N
  • the length of the linkage when the tension is 4.0 N4.0\text{ N}4.0 N

Then she calculates the difference in length for each linkage.

a.

The table below shows some of her results.

Number of bungee-cord elementsLength when tension = 8.0 N8.0\text{ N}8.0 N (cm)Length when tension = 4.0 N4.0\text{ N}4.0 N (cm)Difference in length (cm)
124.521.82.7
251.245.85.4
378.069.98.1
4104.994.110.8
5131.7118.2[Missing]

Calculate the missing difference in length.

[2]
b.

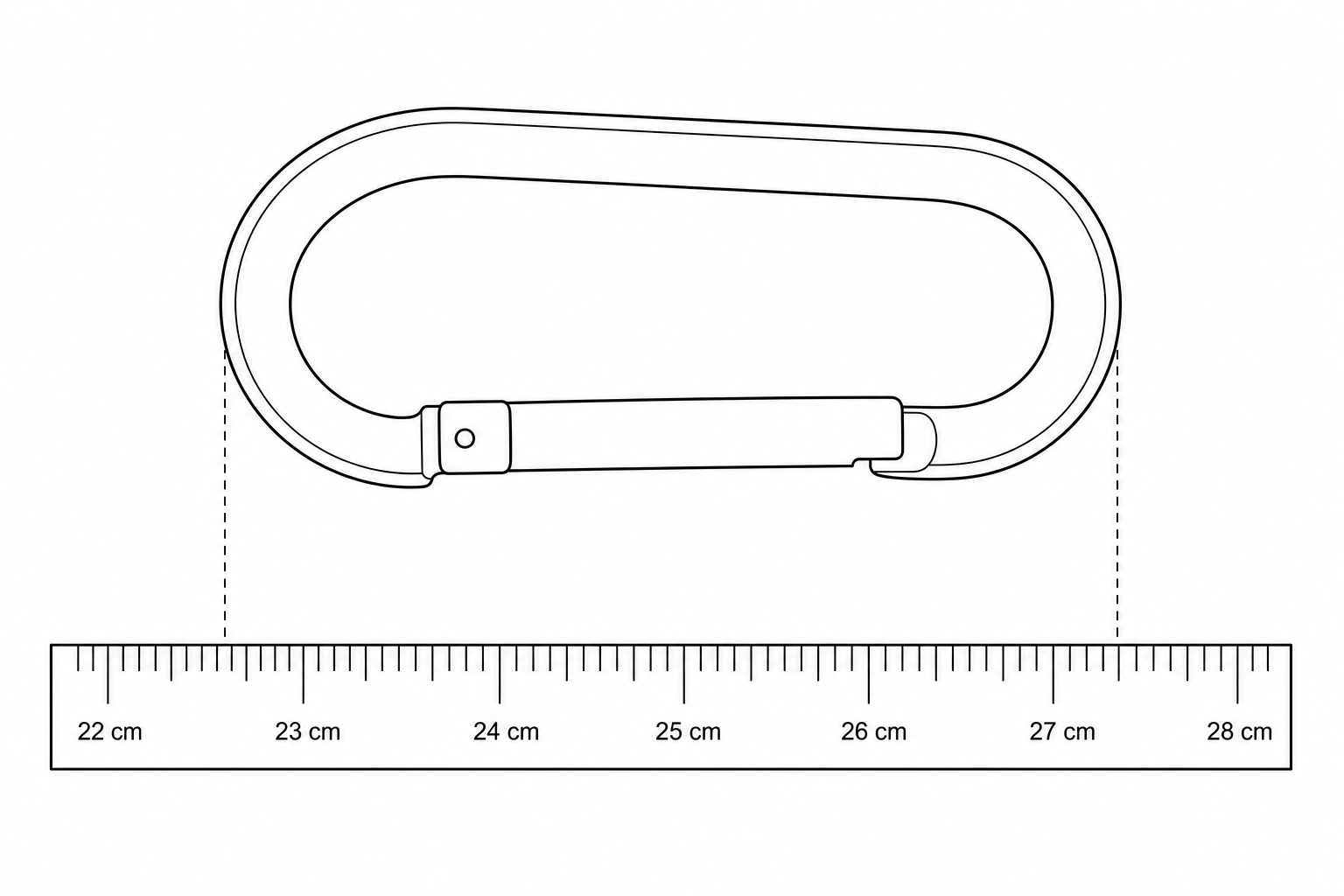

The engineer measures the length of one carabiner from the linkage against the steel rule.

Carabiner aligned with ruler

Estimate the length of this carabiner.

[2]
c.

Suggest two ways that the engineer could improve her measuring technique when measuring the linkages.

[4]
