Question 13
Medium

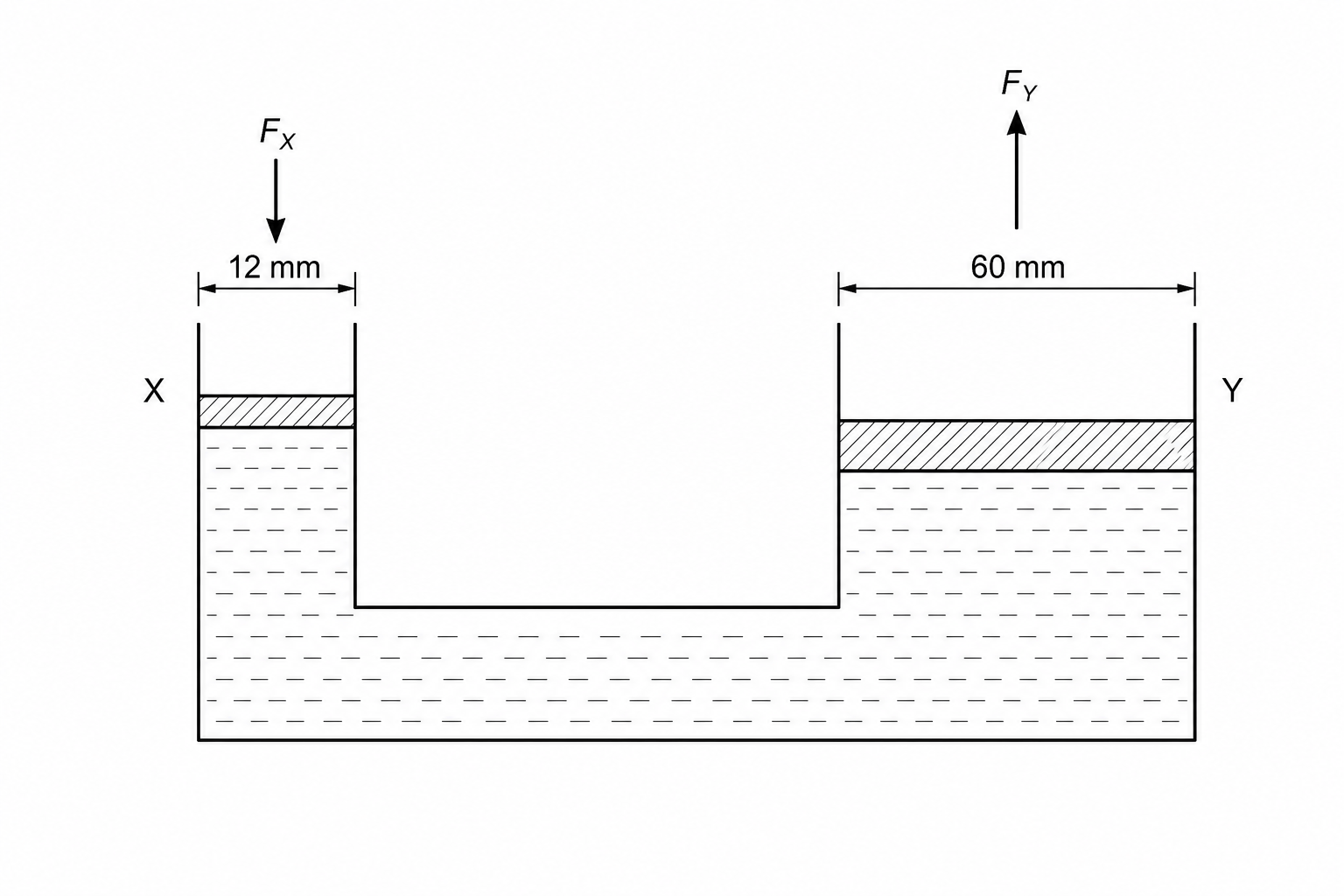

A simple hydraulic lift containing an incompressible oil is constructed with two circular pistons, X X\,X and YYY, of diameters 12 mm and 60 mm respectively.

Hydraulic Press Diagram

A downward force of FX=40 NF_X = 40\text{ N}FX​=40 N is applied to piston XXX.

What is the magnitude of the upward force FY F_Y\,FY​ exerted by piston YYY?

8.0 N8.0\text{ N}8.0 N

200 N200\text{ N}200 N

1000 N1000\text{ N}1000 N

1.6 N1.6\text{ N}1.6 N
