Question 11

Easy

A toy submarine is moving vertically in a deep water tank. Figure 1 shows a velocity-time graph of its motion.

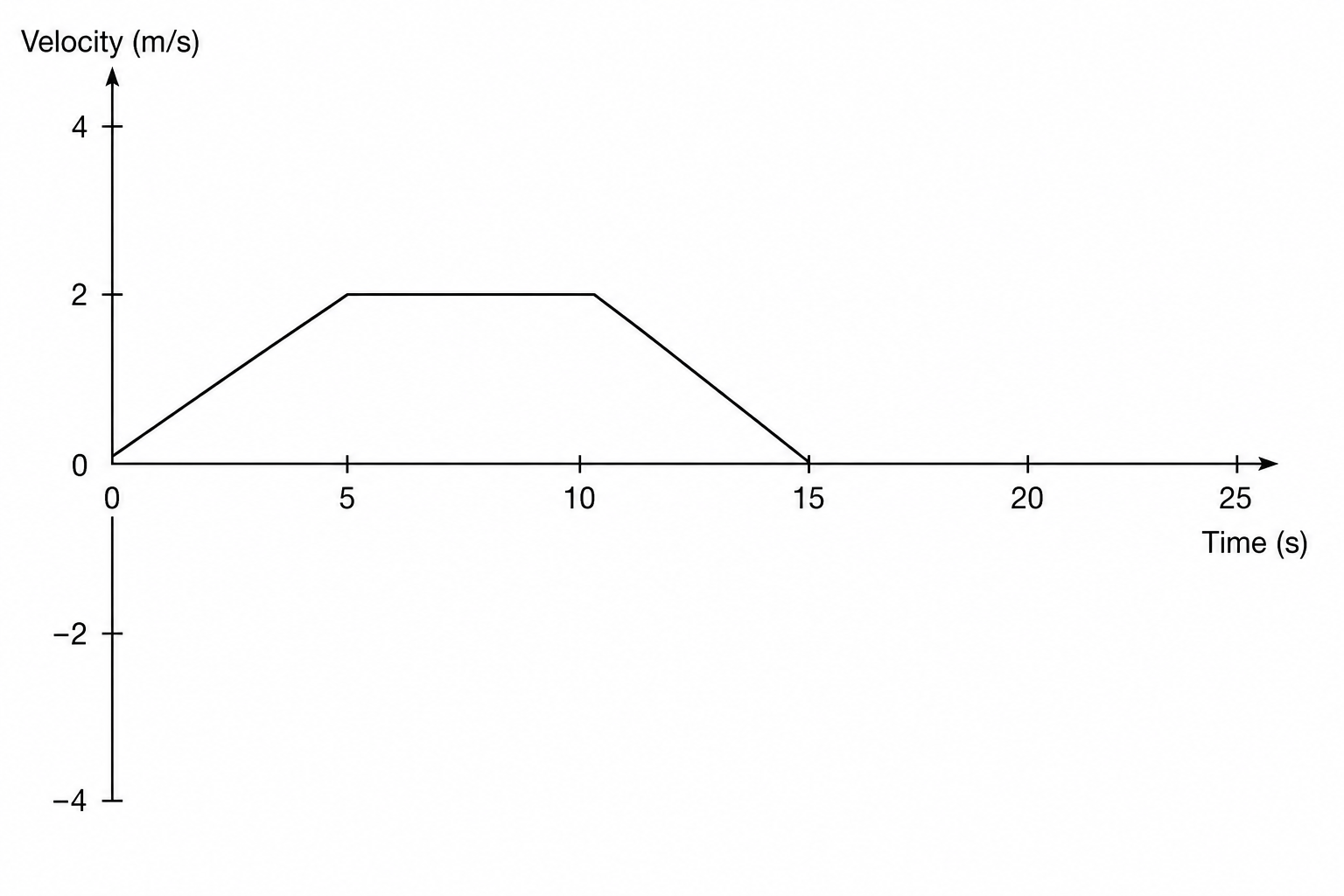

Figure 1: A velocity-time graph for a toy submarine. The vertical y-axis is labeled 'Velocity (m/s)' and ranges from -4 to 4, with 0 in the middle. The horizontal x-axis is labeled 'Time (s)' and ranges from 0 to 25. A solid black line starts at (0, 0), goes up to (5, 2), continues horizontally to (10, 2), and then slopes down to (15, 0).

At 15 s, the submarine starts to move downwards.

Sketch a line on the graph to show the submarine moving downwards after 15 s.

[1]
