Question 41
Easy

Figure 1 shows an incomplete circuit diagram designed by a student to investigate how the resistance of a thermistor varies with temperature.

Complete the circuit diagram in Figure 1 by drawing the correct circuit symbols and connecting wires for:

  • an ammeter
  • a voltmeter

so that the student can determine the resistance of the thermistor.

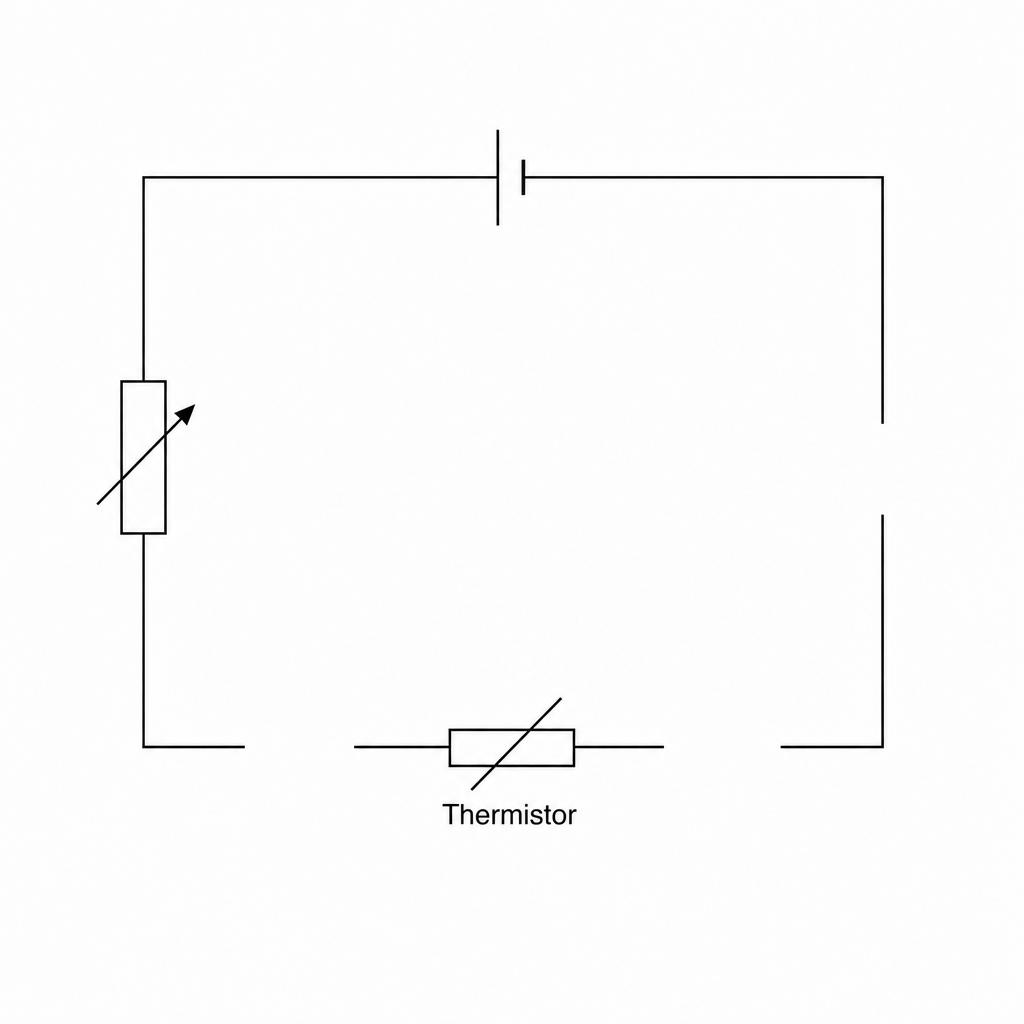

Figure 1: An incomplete schematic circuit diagram with a cell, a variable resistor, a thermistor, and gaps in the wire.

[2]
