Question 29
Easy

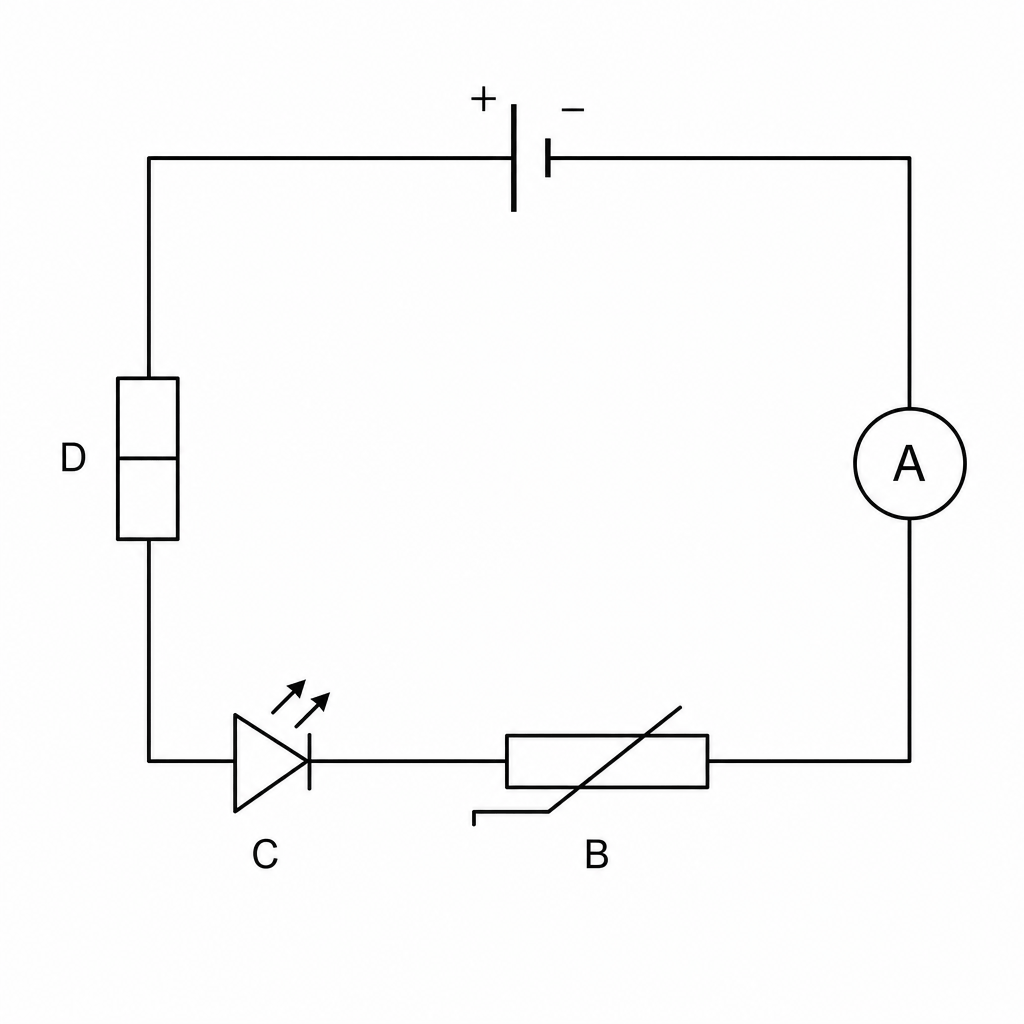

Figure 1 shows a circuit containing a battery and four other components labelled A, B, C, and D.

Label the four components in Figure 1, using words from the box.

ammetervoltmeterfuse
LEDLDRthermistor
variable resistordiode
  • Component A: _______
  • Component B: _______
  • Component C: _______
  • Component D: _______

A circuit diagram of a simple series loop containing a battery at the top. Moving clockwise: on the right side is Component A, shown as a circle with the capital letter 'A' inside; on the bottom side is Component B, shown as a rectangle with a diagonal line running through it that has a flat horizontal step at the bottom-left end; at the bottom-left corner is Component C, shown as a standard diode symbol (a triangle pointing left-to-right to a vertical line) with two small parallel arrows pointing outwards and upwards away from it; on the left side is Component D, shown as a rectangular box with a single continuous straight horizontal wire line passing directly through the middle from one end to the other.

[4]
