An embossing press applies a normal force to a metal sheet using a rectangular stamp.
| setting | normal force in N | contact dimensions in mm |
|---|---|---|
| X | 1800 | 30 × 20 |
| Y | 2400 | 40 × 25 |
Calculate the pressure applied to the sheet by each setting.
The contact dimensions for setting Y remain unchanged. Calculate the normal force that setting Y must apply to produce the same pressure as setting X.

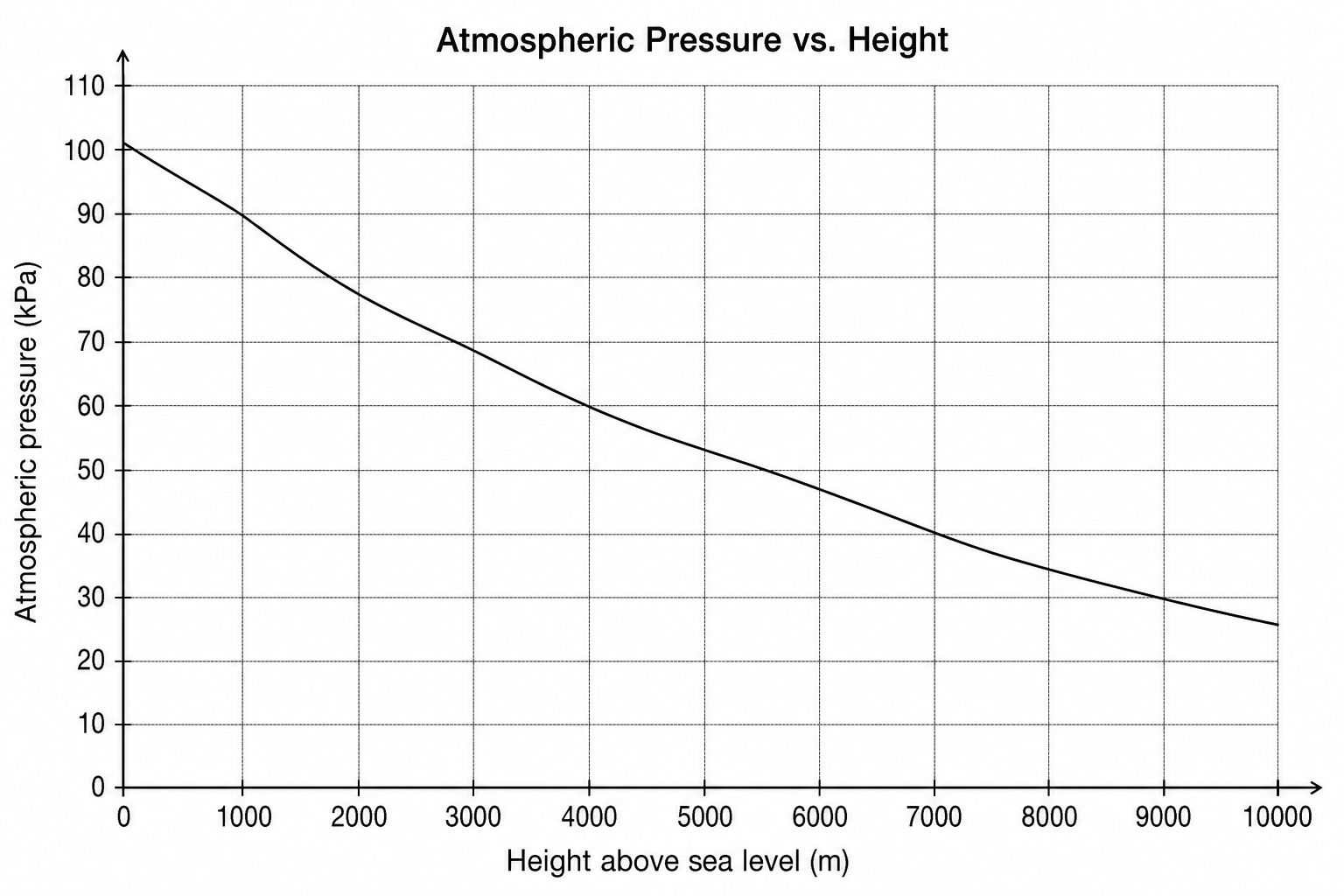

132 exam-style questions on Edexcel GCSE Physics 15.2 Pressure in fluids, covering 15.2.1 Atmospheric pressure and height, 15.2.2 Pressure in fluids, 15.2.3 Pressure, force and area, 15.2.4 Pressure and depth, 15.2.5 Pressure in liquids: depth and density, 15.2.6 Upthrust, and 15.2.7 Floating and sinking. Each one has a worked solution and a mark scheme showing where the marks go.
