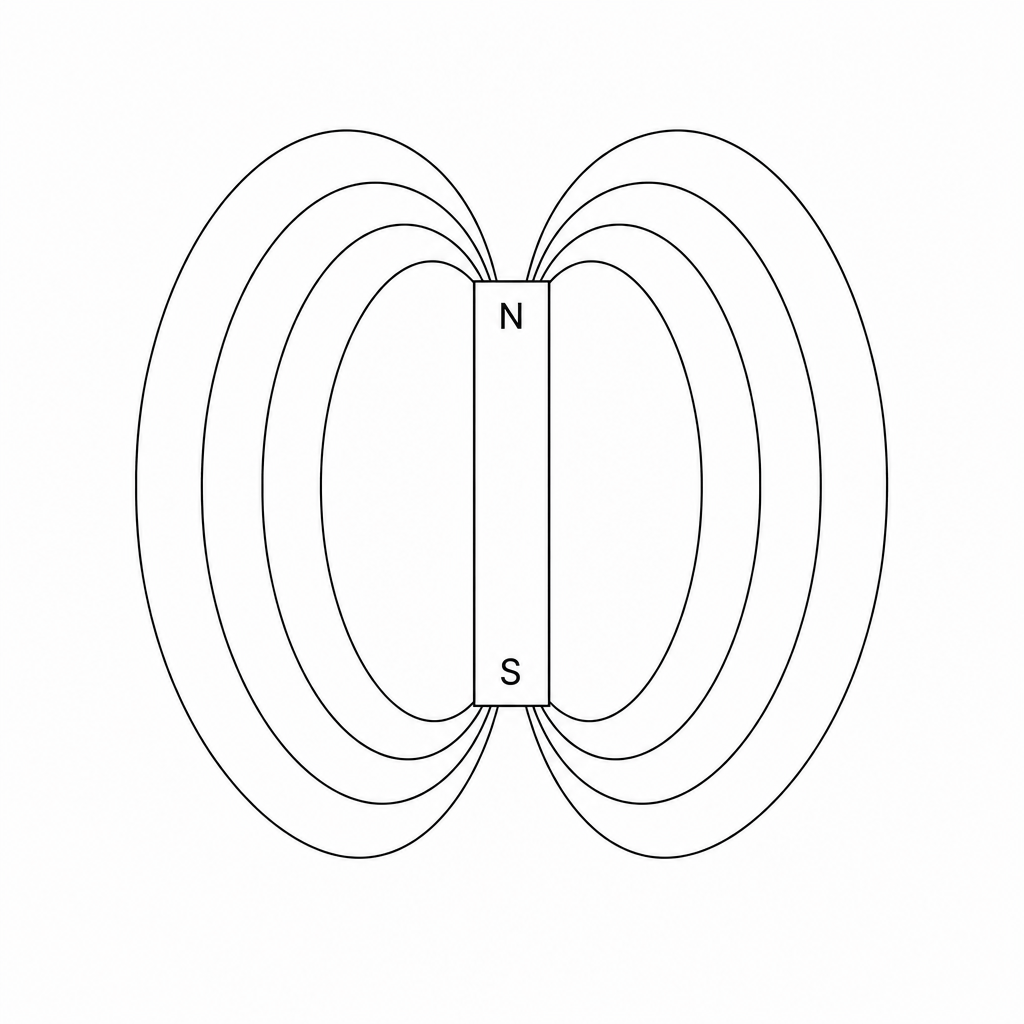

Figure 1 shows the magnetic field lines around a vertically aligned bar magnet.

A diagram of a vertically aligned bar magnet with its North (N) pole at the top and South (S) pole at the bottom. Several curved magnetic field lines are shown looping from the North pole at the top to the South pole at the bottom on both the left and right sides of the magnet. There are no direction indicators on the lines.

Draw arrows on the field lines in Figure 1 to show the direction of the magnetic field.

[1]
