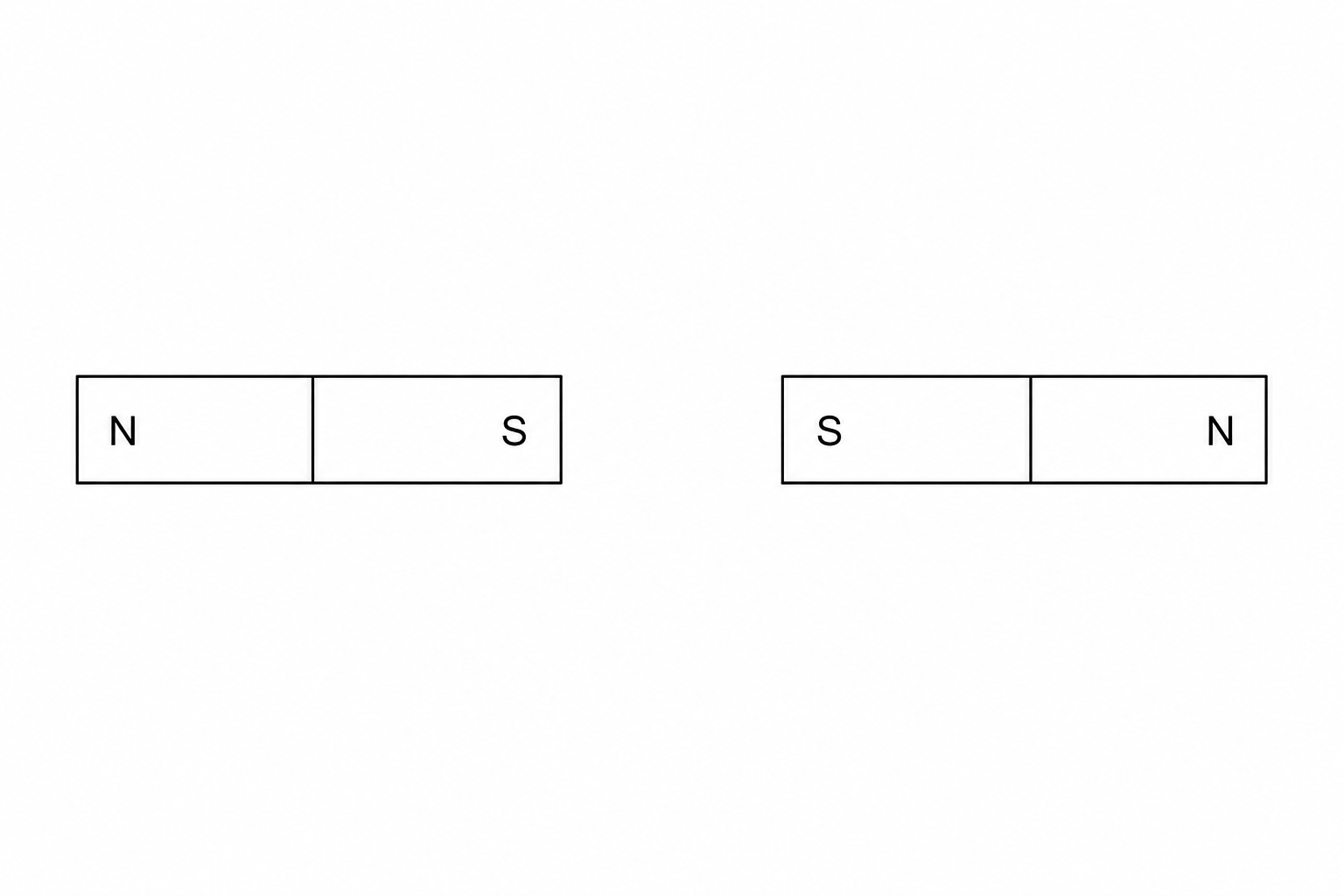

Figure 1 shows two bar magnets with their South (S) poles facing each other.

Figure 1: Two bar magnets aligned horizontally. The left magnet has its North (N) pole on the left and South (S) pole on the right. The right magnet has its South (S) pole on the left and North (N) pole on the right. The two South (S) poles face each other with a gap in between.

On the diagram, draw the shape and direction of the magnetic field lines in the space between the two facing poles.

[2]
