Figure 1 shows two flat magnetic poles facing each other.

The magnetic field in the gap between the poles is uniform.

On Figure 1, draw at least three magnetic field lines to represent this uniform magnetic field and include an arrow on the lines to show the direction of the field.

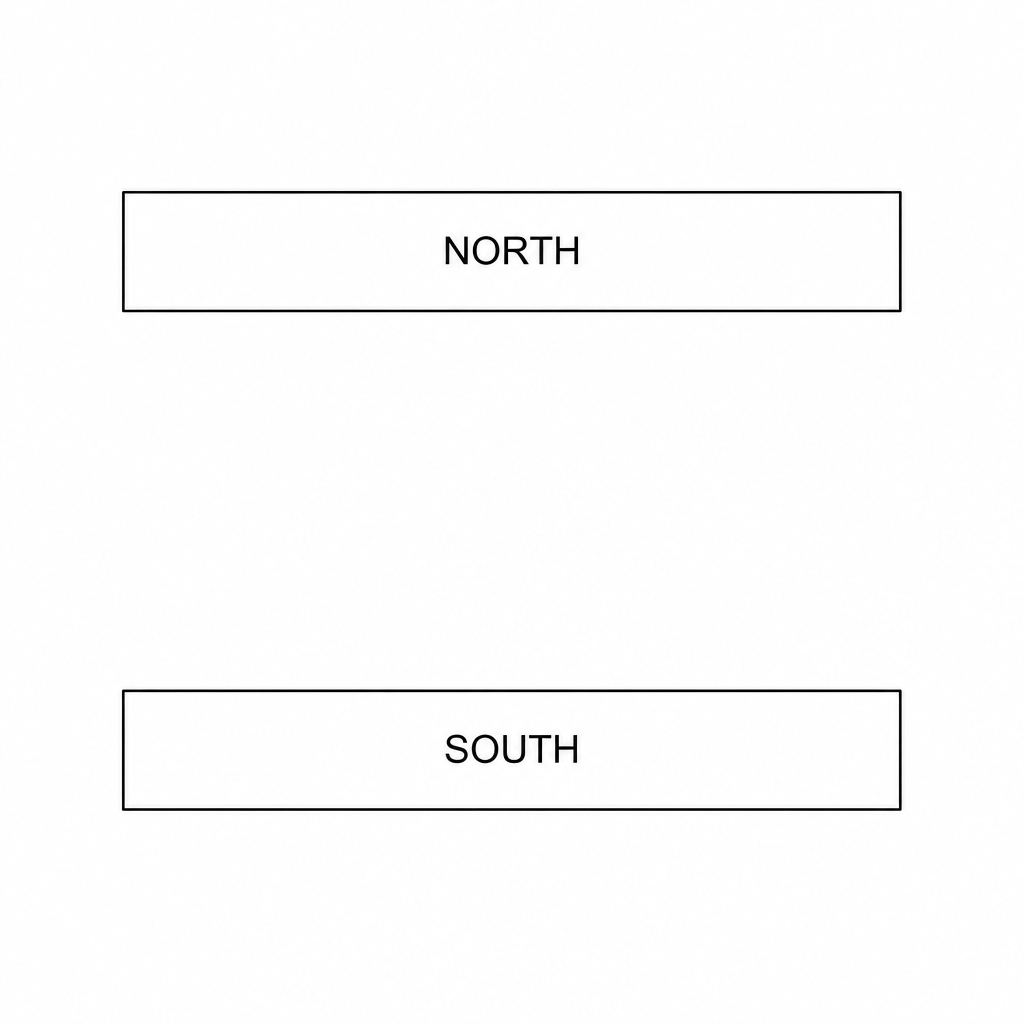

Diagram: A flat rectangular North magnetic pole labeled 'NORTH' positioned horizontally at the top, and an identical flat rectangular South magnetic pole labeled 'SOUTH' positioned horizontally at the bottom, leaving a clear gap between them.

[3]
