An alternator is connected to an oscilloscope to monitor its electrical output. Which of the following graphs represents the potential difference output from this alternator over time?

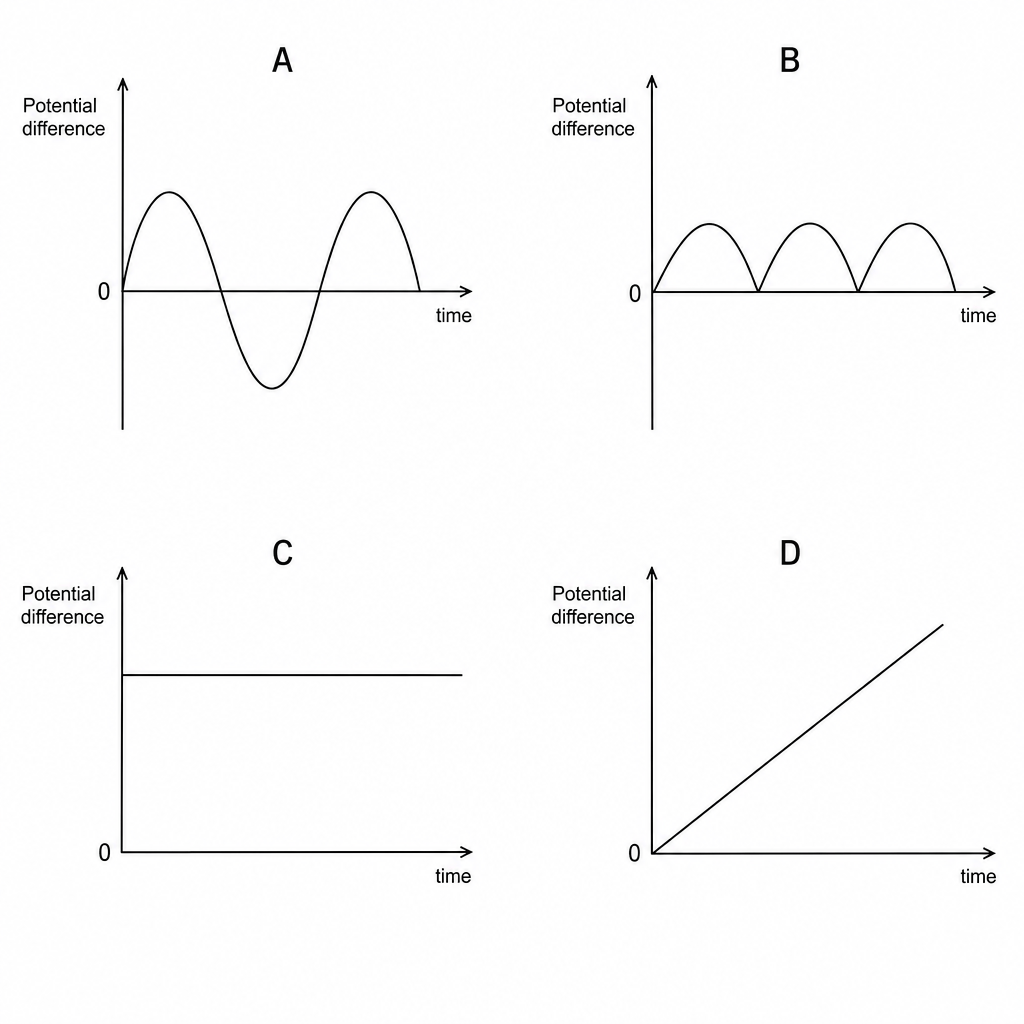

Alternator potential difference output graphs

Graph A

Graph B

Graph C

Graph D

Inducing current, generators and microphones Questions

Practise Edexcel GCSE Physics Inducing current, generators and microphones with exam-style questions for Foundation and Higher tier. 24 questions, matched to the Edexcel GCSE Physics (1PH0) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
