Forces, vectors and free body diagrams

EasyMedium
12345678910111213141516171819202122232425262728293031323334353637383940414243
Question 39
Easy

Figure 1 shows a gardener lifting a wheelbarrow.

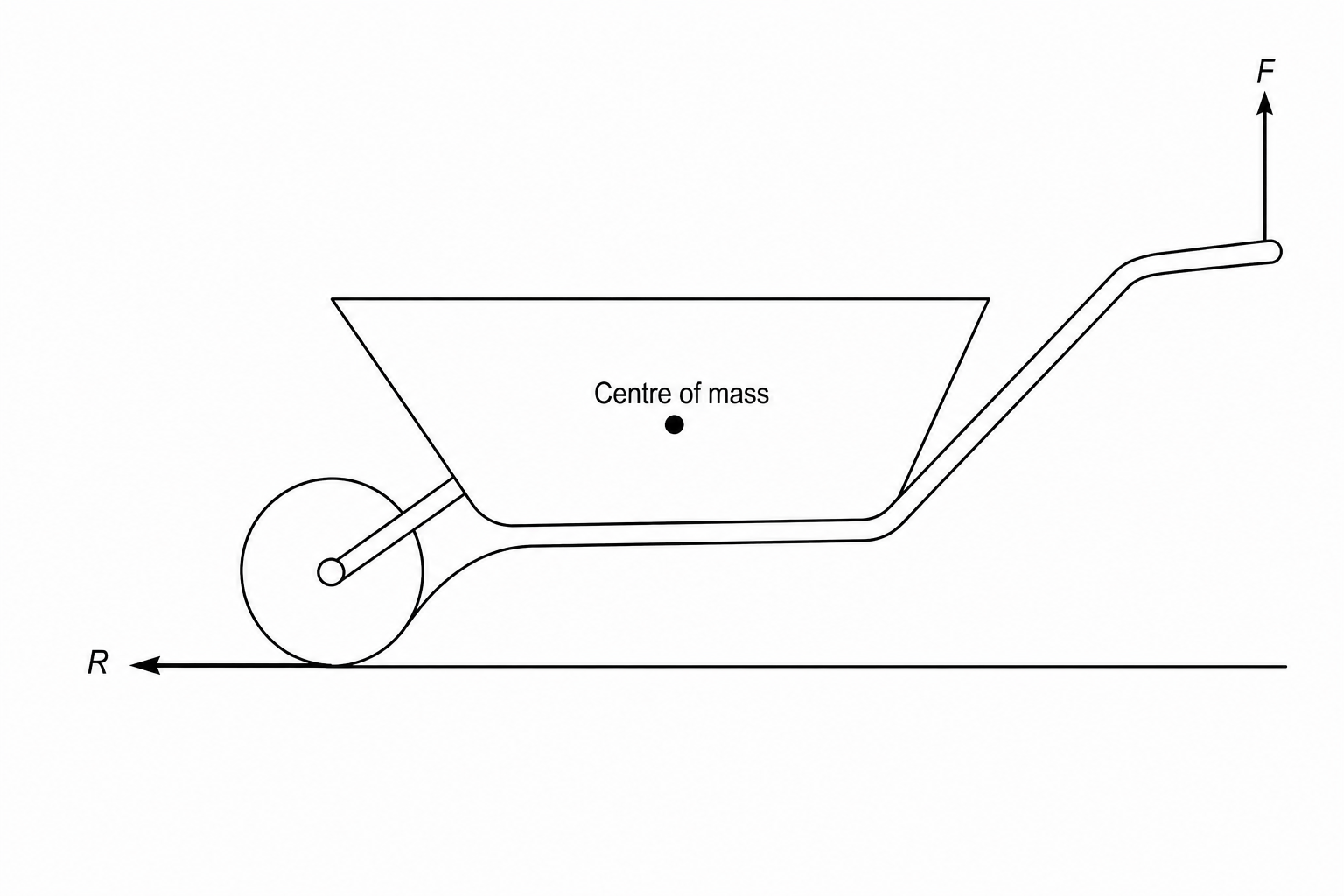

A diagram of a wheelbarrow being lifted by a gardener. The front wheel of the wheelbarrow is on the ground. An upward force F is applied to the handles on the right. A force R represents the resistance acting horizontally to the left at the wheel. The center of mass of the wheelbarrow and its load is located in the middle of the tub.

Draw an arrow on the diagram to represent the weight of the wheelbarrow and its load.

[1]
