Forces, vectors and free body diagrams

EasyMedium
12345678910111213
Question 11
Medium

A small underwater research probe is held in equilibrium by three coplanar tension forces: T1\mathbf{T}_1T1​, T2\mathbf{T}_2T2​, and T3\mathbf{T}_3T3​, as shown in the free-body diagram below.

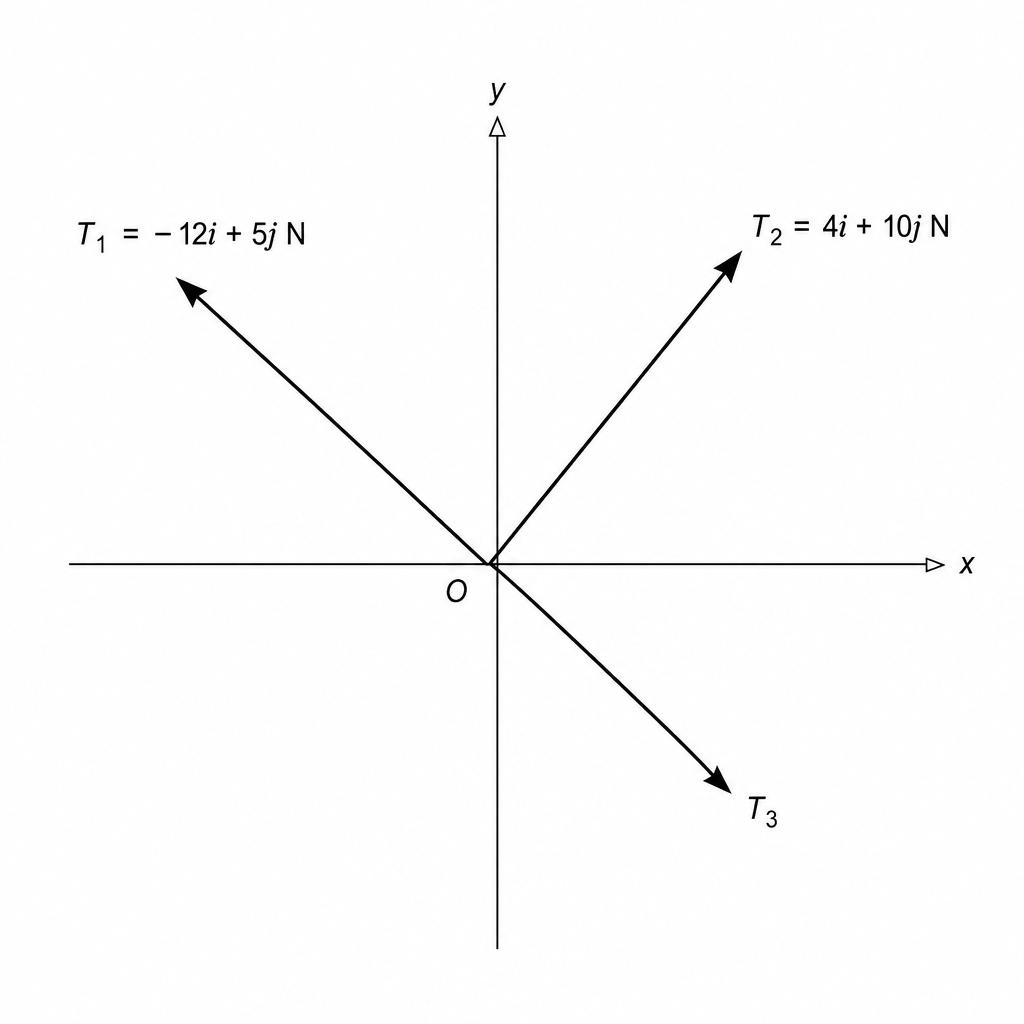

Free body diagram

Given that T1=−12i+5j N\mathbf{T}_1 = -12\mathbf{i} + 5\mathbf{j}\text{ N}T1​=−12i+5j N and T2=4i+10j N\mathbf{T}_2 = 4\mathbf{i} + 10\mathbf{j}\text{ N}T2​=4i+10j N, find the magnitude of the tension force T3\mathbf{T}_3T3​.

9.4 N9.4\text{ N}9.4 N

17.0 N17.0\text{ N}17.0 N

21.9 N21.9\text{ N}21.9 N

23.8 N23.8\text{ N}23.8 N
