Forces, vectors and free body diagrams

EasyMedium
12345678910111213
Question 9
Medium

An underwater research probe is wedged inside a narrow horizontal conduit. A rescue tether is attached to the rear of the probe. To extract the probe along the line of the conduit, a recovery team pulls on the tether.

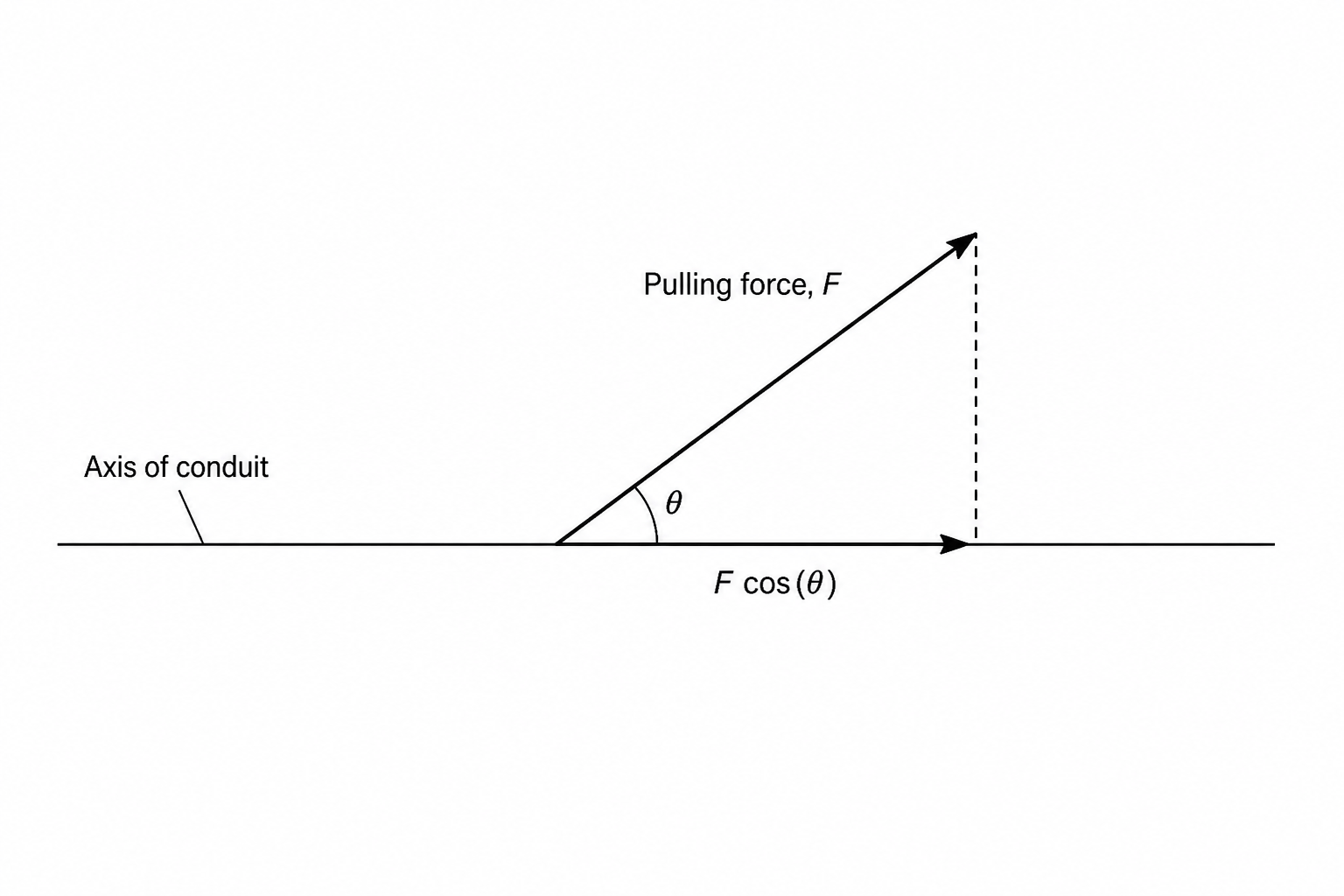

Force Resolution Diagram

Explain why a larger tension force is required in the tether to free the probe if the tether is pulled at an angle to the axis of the conduit, rather than directly along it.

[2]
