Question 15
Easy

Figure 1 shows two forces, FB F_B\,FB​ and FWF_WFW​, acting at right angles to each other at point Q.

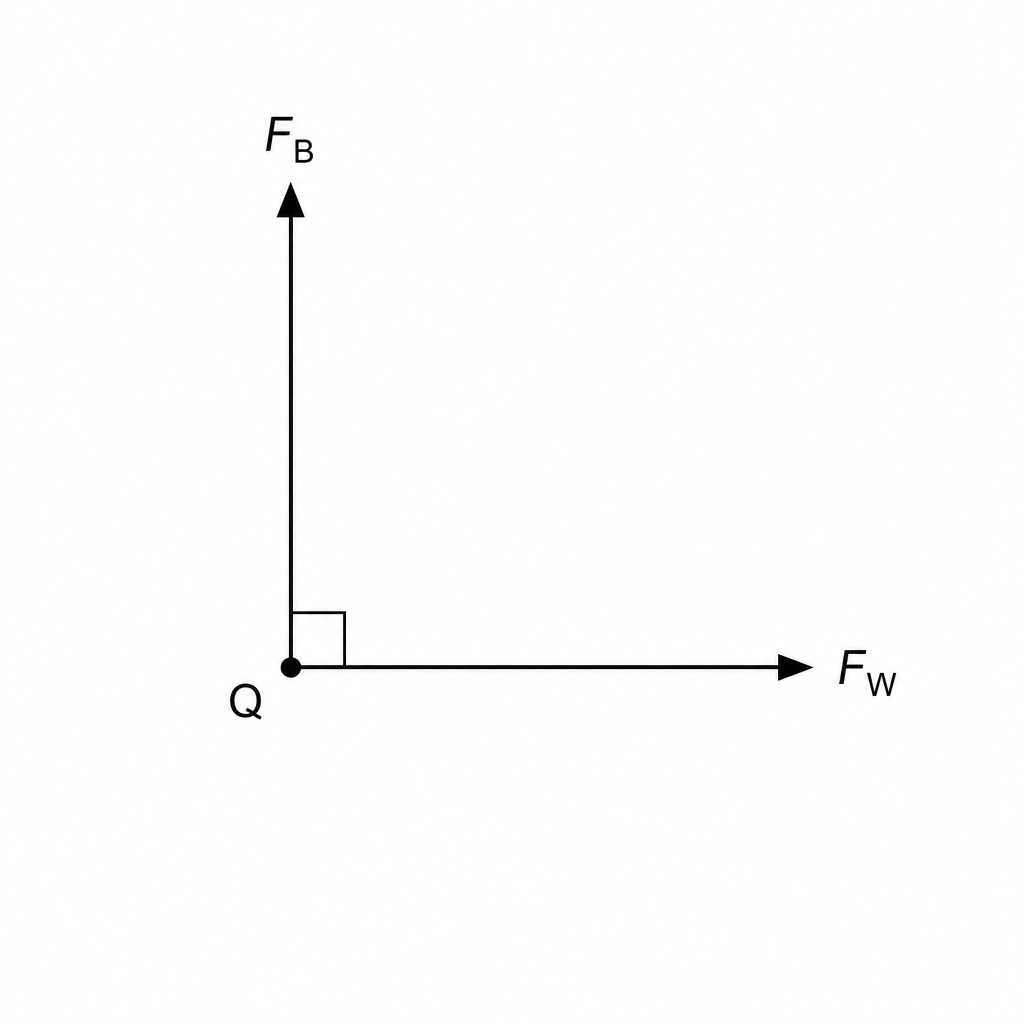

Figure 1: A vector diagram showing two perpendicular forces acting on point Q. Force F_B\, is a vertical vector pointing upwards. Force F_W\, is a horizontal vector pointing to the right.

Complete the vector diagram in Figure 1 to show the size and direction of the resultant force, FRF_RFR​, acting on point Q.

[2]
