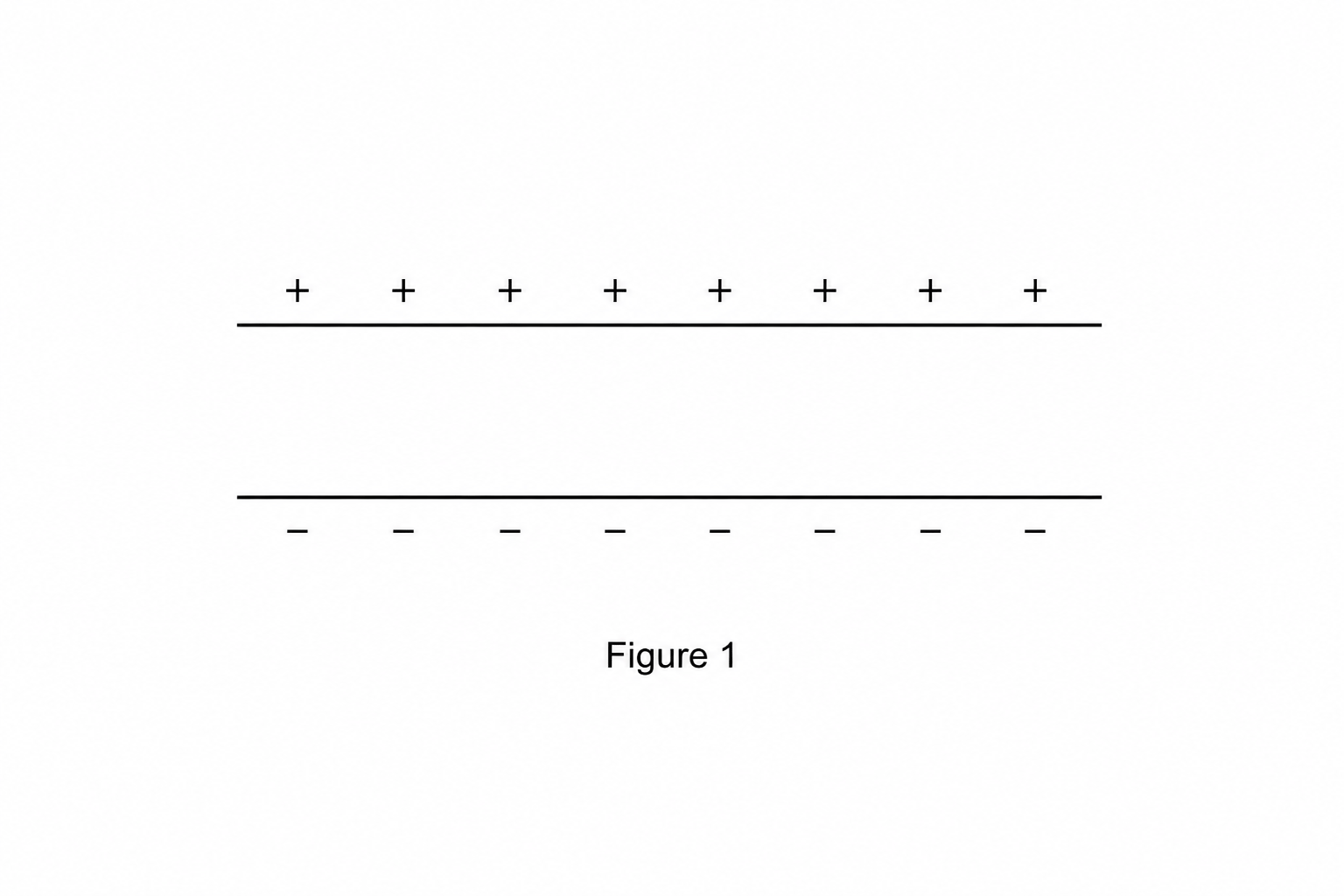

Figure 1 shows a simplified diagram of two parallel, horizontal metal plates used in an electrostatic deflection system.
The upper plate carries a uniform positive charge.
The lower plate carries a uniform negative charge.
On Figure 1, draw at least three electric field lines to represent the electrostatic field in the region between the plates, and show the direction of this field.
