A motor is connected in the main part of a circuit. The wire then divides into two branches. One branch contains lamp S and the other branch contains lamp T. The branches rejoin before returning to the cell.
The filament in S breaks.
Which statement describes the motor and T?
The broken filament prevents current in the shared part of the circuit, so the motor stops but T remains lit.
The motor continues to work because it is before the split, but T goes out when either branch is broken.
The break removes every complete route through the cell, so both the motor and T stop working.
A complete route still runs through the motor and the branch containing T, so the motor continues to work and T remains lit.

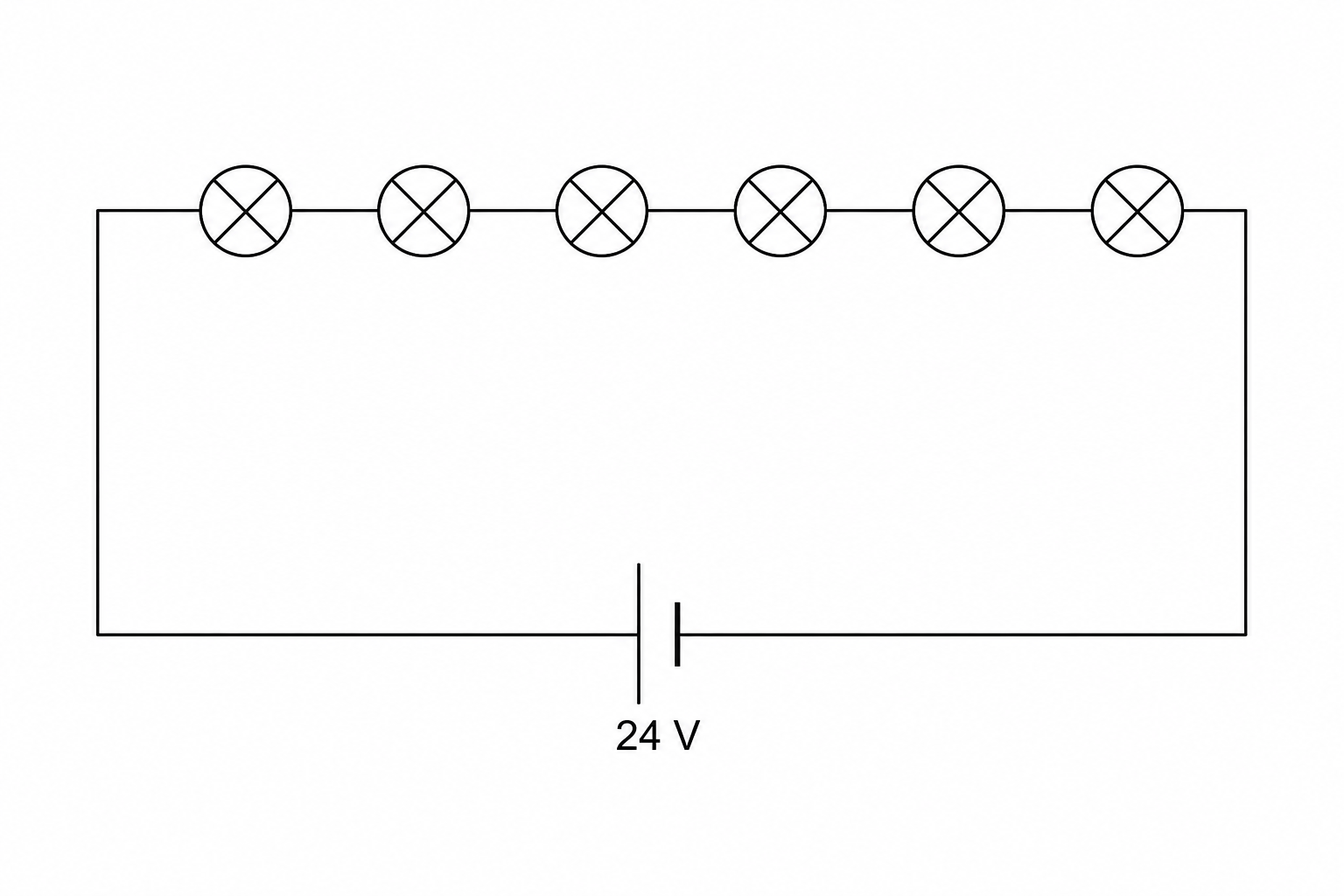

94 exam-style questions on Edexcel GCSE Physics 10.1 Circuits, charge and current, covering 10.1.1 Structure of the atom, 10.1.2 Circuit diagrams and symbols, 10.1.3 Series and parallel circuits, 10.1.4 Potential difference and voltmeters, 10.1.5 Energy transferred, charge and potential difference, and 10.1.6 Current, ammeters and charge flow. Each one has a worked solution and a mark scheme showing where the marks go.
