Question 33
Easy

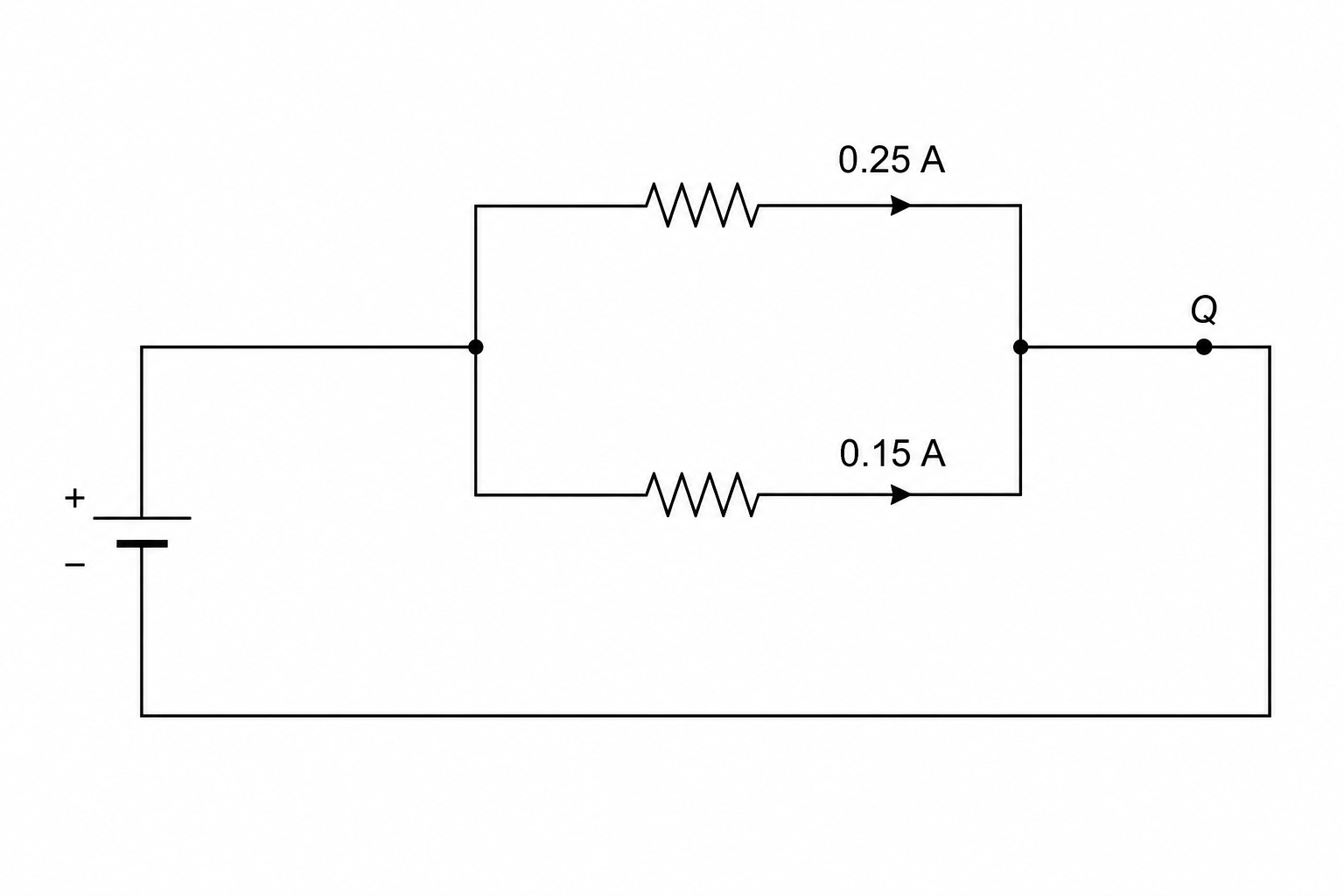

Figure 1 shows a circuit diagram with a battery connected to a parallel branch containing two resistors.

Circuit diagram with parallel branches and a marked point Q

What is the current at point Q?

0.10 A0.10\text{ A}0.10 A

0.15 A0.15\text{ A}0.15 A

0.25 A0.25\text{ A}0.25 A

0.40 A0.40\text{ A}0.40 A
