A student investigated how the current in a fixed wire resistor R R\,R at constant temperature varied with the potential difference across it.
Describe a method that the student could use to obtain a range of positive and negative values of current and potential difference for resistor RRR.
During another student's investigation, the current was left on for too long, causing the temperature of resistor R R\,R to increase. Explain how this increased temperature would have affected the student's results.

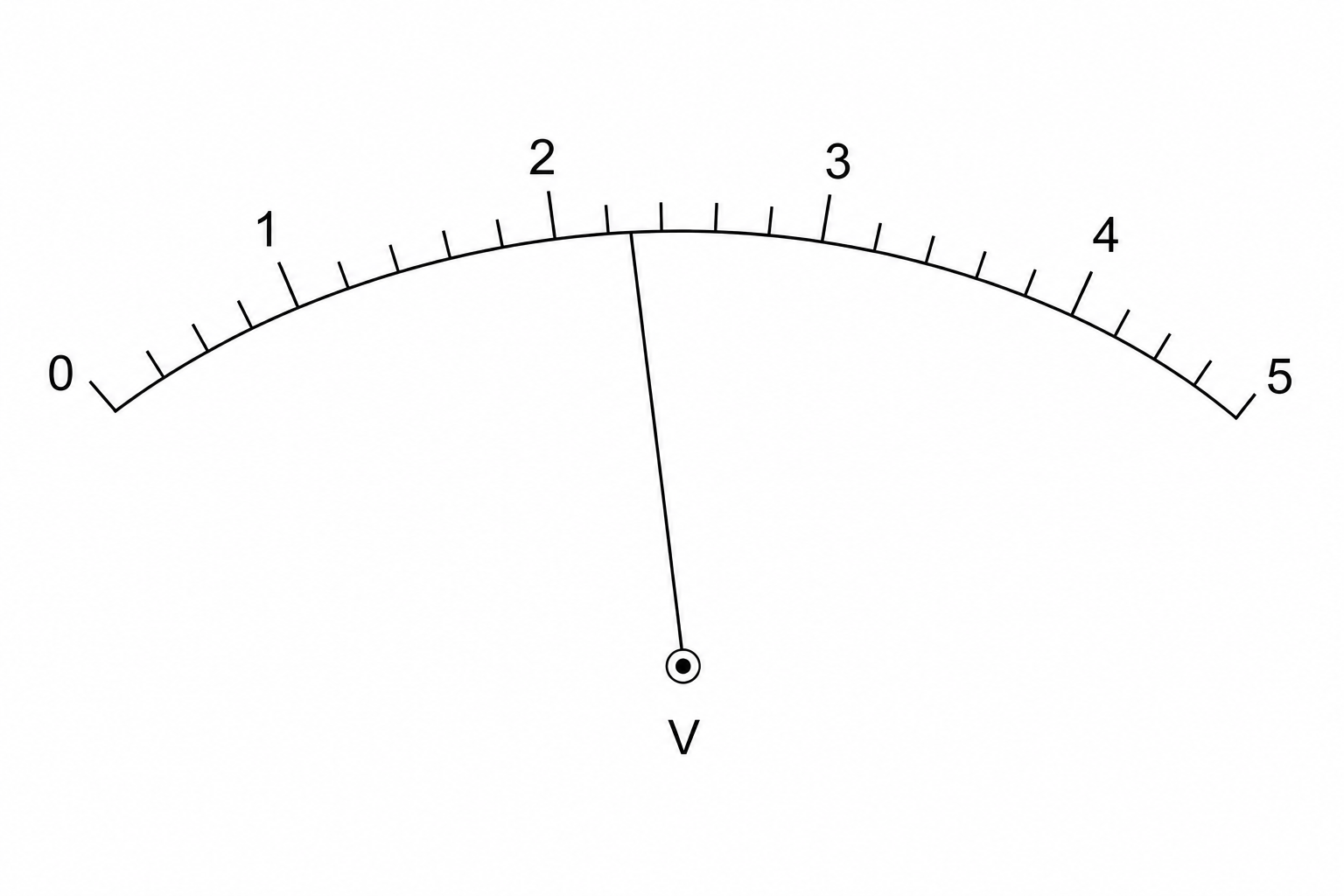

The figure below shows the scale of an analogue voltmeter used in the investigation.
What is the resolution of this voltmeter?
The student replaced the analogue voltmeter with a digital voltmeter. State one advantage of using a digital voltmeter rather than an analogue voltmeter, other than having a higher resolution.
Current, potential difference and resistance Questions
