A thermistor is used in a temperature-control system to monitor a room's temperature.

Part of the circuit is shown in the diagram below.

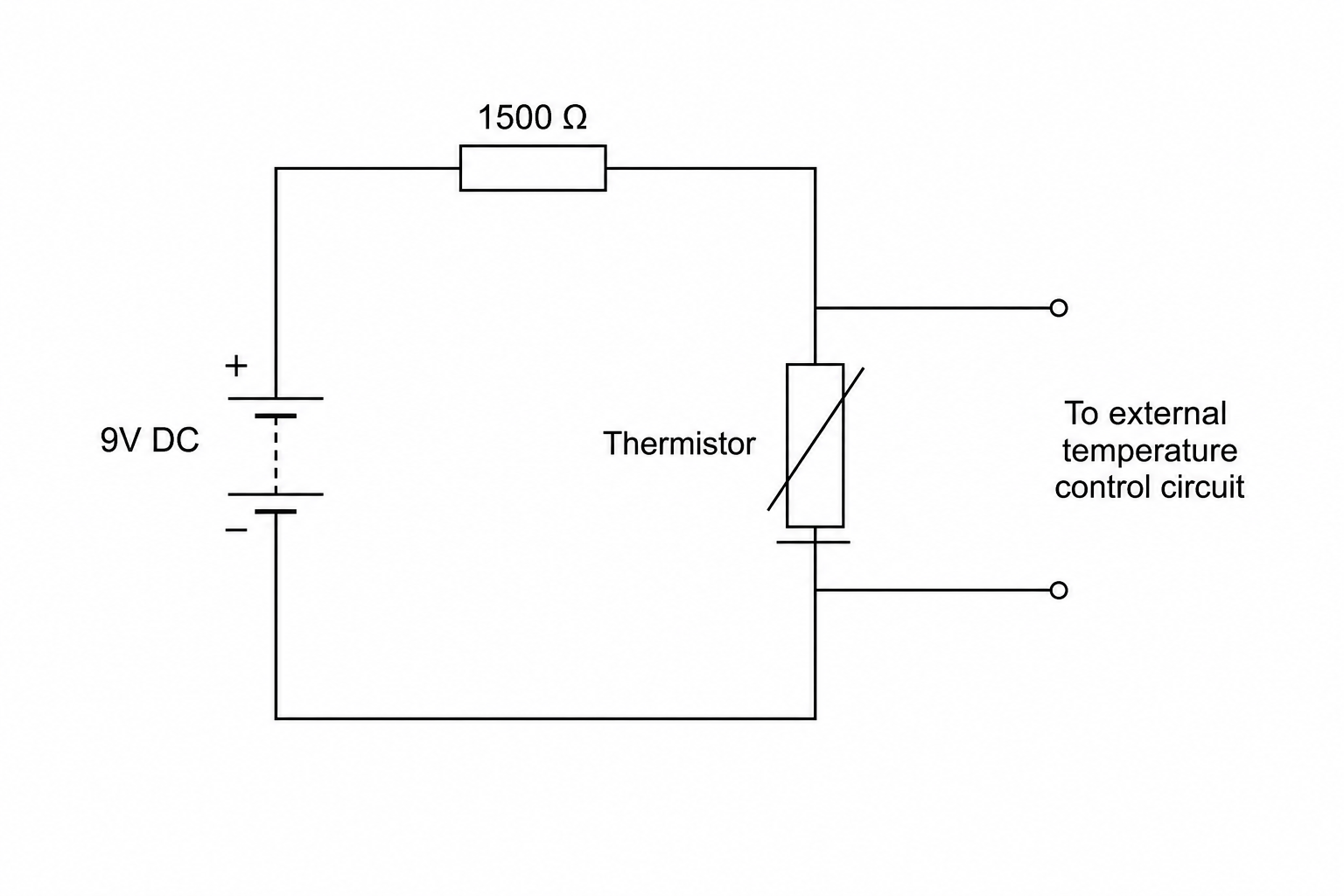

Circuit diagram with a 9V DC power supply on the left. In series, there is a fixed resistor of resistance 1500 \Omega connected to the positive terminal, and a thermistor connected below it to the negative terminal. An output connection is taken across the thermistor to an external temperature control circuit.

a.

The temperature of the room increases. What happens to the potential difference across the thermistor and the current through it? Explain your answer.

[3]
b.

What is the resistance of the thermistor when the potential difference across it is 3 V3\text{ V}3 V? Show your working or give a reason for your answer.

[2]
c.

Calculate the current through the thermistor when the resistance of the thermistor is 4000 Ω4000\ \Omega4000 Ω.

Give your answer to 2 significant figures.

[2]
