An NTC thermistor is used in an incubator temperature-monitoring system.

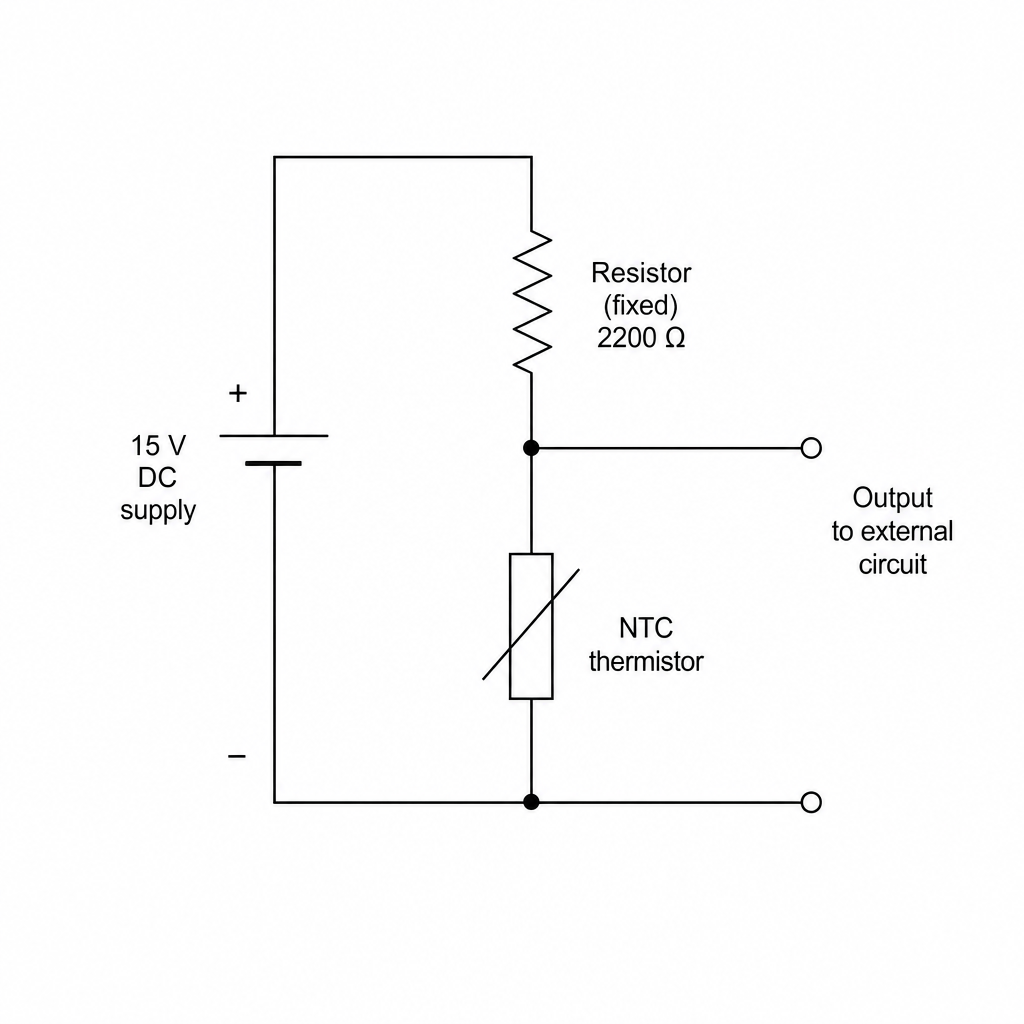

Part of the circuit is shown in the diagram below.
The temperature of the incubator decreases. What happens to the potential difference across the thermistor and the current through it? Explain your answer.
What is the resistance of the thermistor when the potential difference across it is 5 V? Show your working or give a reason for your answer.
Calculate the current through the thermistor when the resistance of the thermistor is 1800 Ω.
Give your answer to 2 significant figures.
