An electric patio heater contains three heating elements.

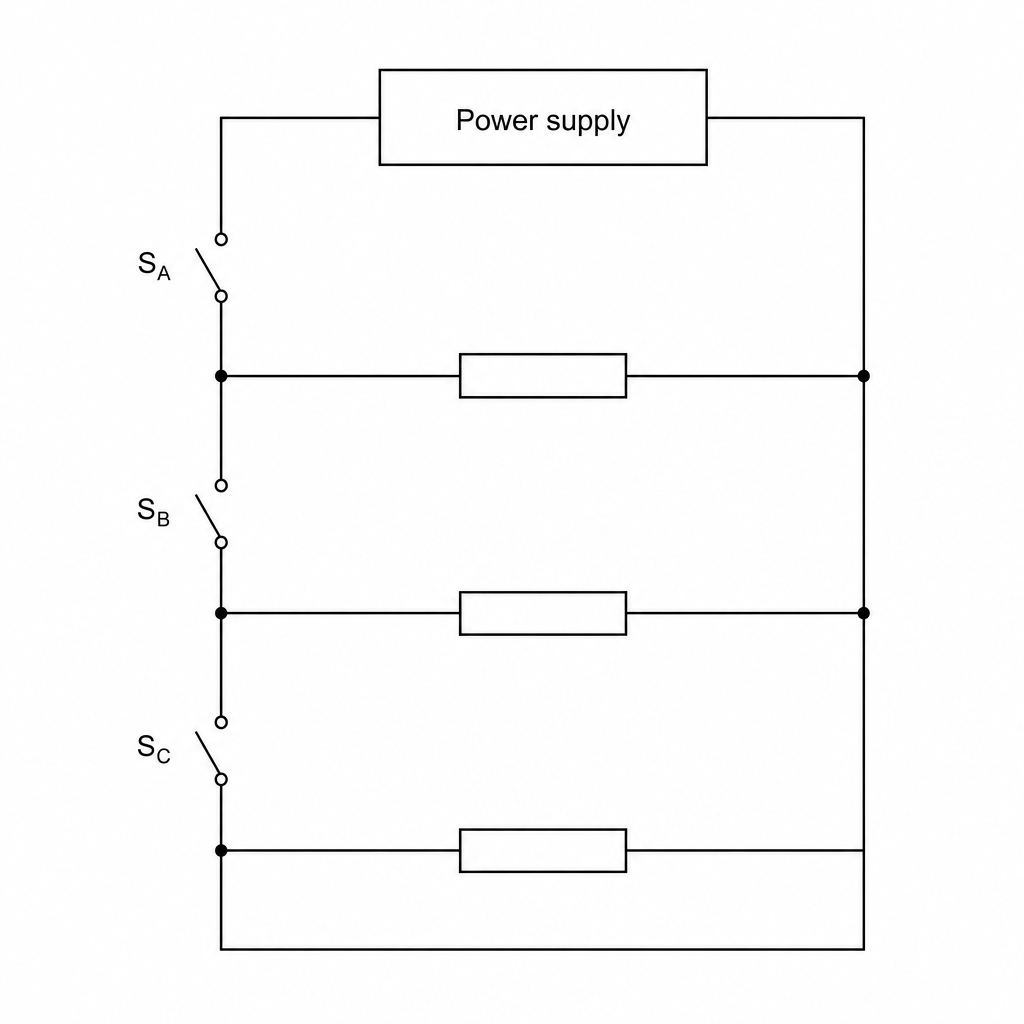

Figure 1 shows the circuit diagram for the heating elements in the heater.
In Figure 1, the heating elements are represented by resistor symbols.
Complete the sentence:
The three resistors representing the heating elements are connected in ___________ with the power supply.
Which switch must always be closed for the heater to work at all?
- SAS_ASA
- SBS_BSB
- SCS_CSC
Which switches must be closed for the heater to work at maximum power output?
- SAS_ASA and SBS_BSB
- SAS_ASA and SCS_CSC
- SAS_ASA, SBS_BSB and SCS_CSC
Write down the equation which links energy transferred (EEE), power (PPP) and time (ttt).
The heating elements have a maximum power output of 1600 W1600\text{ W}1600 W.
The energy transferred to the heating elements to reach normal operating temperature is 8000 J8000\text{ J}8000 J.
Calculate the time taken for the heating elements to reach normal operating temperature at maximum power output.
The heater uses a thermistor to monitor temperature.
Which description represents the circuit symbol for a thermistor?
- A: A circle with a cross inside
- B: A circle containing a triangle next to a vertical line, with two outward arrows
- C: A rectangle with a diagonal line that has a horizontal flat section at the lower end
- D: A rectangle with a diagonal arrow running through it
