An industrial air-drying unit contains three high-power heating elements.

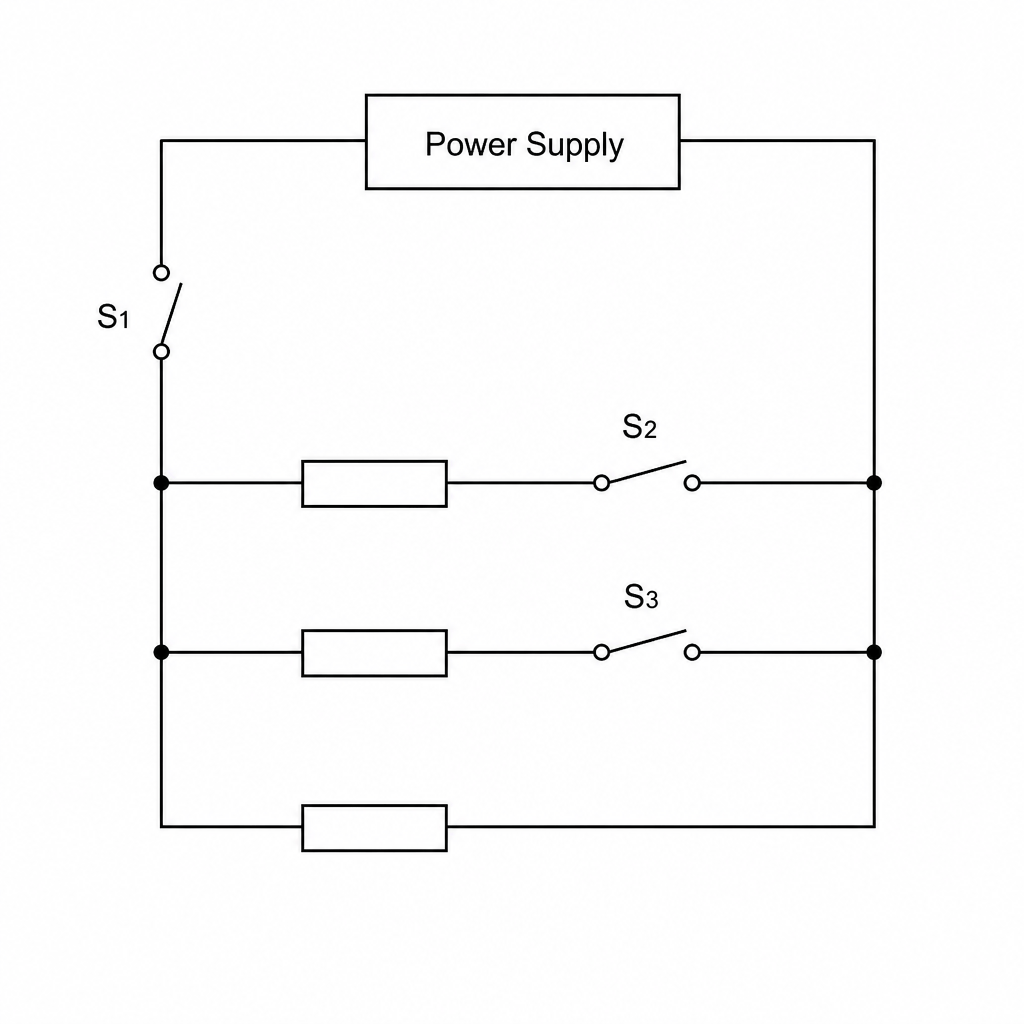

Figure 1 shows the electrical schematic diagram for these heating elements.

In Figure 1, the heating elements are represented by standard resistor symbols.

Industrial Air-Drying Unit Circuit

Complete the sentence:

The three resistors representing the heating elements are connected in ____________ with each other across the power supply.

[1]

Which switch must always be closed for any of the heating elements to work?

$S_1$
$S_2$
$S_3$

[1]

Which switches must be closed for the heating system to operate at maximum power output?

$S_1$ and $S_2$
$S_1$ and $S_3$
$S_1$ , $S_2$ and $S_3$

[1]

Write down the equation which links energy transferred ( $E$ ), power ( $P$ ) and time ( $t$ ).

[1]

The heating elements have a maximum combined power output of $W2500\text{ W}$ .

The energy transferred to the heating elements to reach their standard operating temperature is $J35\,000\text{ J}$ .

Calculate the time taken for the heating elements to reach their standard operating temperature at maximum power output.

[2]

The control panel of the unit uses a light-emitting diode (LED) as a status indicator.

Which description represents the standard circuit symbol for an LED?

A: A circle with a cross inside
B: A rectangle with a diagonal arrow running through it
C: A circle containing a triangle touching a vertical line, with two arrows pointing away
D: A rectangle with a diagonal line that has a flat horizontal section at the lower end

[1]
