Parallel and Perpendicular Lines

What you'll learn

How to read the gradient from a straight-line equation.
How to write equations of parallel lines.
How to write equations of perpendicular lines.
How to use two points, or an unknown value like $k$ , to find a line’s gradient.

1. Start with $y = m x + c$

Most questions in this topic are about comparing gradients. So your first job is often to get the equation into the form $y = m x + c$ .

Definition

Gradient and y-intercept

The gradient tells you the steepness and direction of a straight line. In $y = m x + c$ , the gradient is $m$ .

A line in the form y = mx + c, showing the gradient as rise divided by run and the y-intercept c.

The y-intercept is where the line crosses the y-axis. In $y = m x + c$ , the y-intercept is $c$ .

“Make $y$ the subject” means rearrange the equation so that $y$ is on its own.

Example

Finding the gradient

Start with the equation $6 y = 3 x - 12$ .
Divide every term by 6 to make $y$ the subject: $y=12x−2y=\frac{1}{2}x-2$ .
Compare it with $y = m x + c$ .
The gradient is $m=12m=\frac{1}{2}$ and the y-intercept is $c = - 2$ .

Common Mistake

Reading the wrong coefficient

In $2 x + 5 y = 10$ , the coefficient of $x$ is not the gradient yet. Rearrange first until $y$ is on its own.

2. Parallel lines

Definition

Parallel lines

Parallel lines are straight lines that never meet. In $y = m x + c$ form, parallel lines have the same gradient.

Parallel lines have the same steepness but different y-intercepts.

The y-intercept can change, but the gradient must stay the same.

Example

Parallel line through the y-axis

The line $y = - 3 x + 8$ has gradient $m = - 3$ .
A parallel line has the same gradient, so start with $y = - 3 x + c$ .
Passing through (0, 5) means the y-intercept is 5, so $c = 5$ .
The equation is $y = - 3 x + 5$ .

Tip

When it says “a line”

If no point is given, there are many correct answers. For example, a line parallel to $y = 3 x + 1$ could be $y = 3 x - 4$ .

3. Perpendicular lines

Definition

Perpendicular lines

Perpendicular lines meet at a right angle, 90°. For usual straight lines in $y = m x + c$ form, their gradients are negative reciprocals, meaning you flip the fraction and change the sign. Their gradients satisfy $m_1m_2=-1$ .

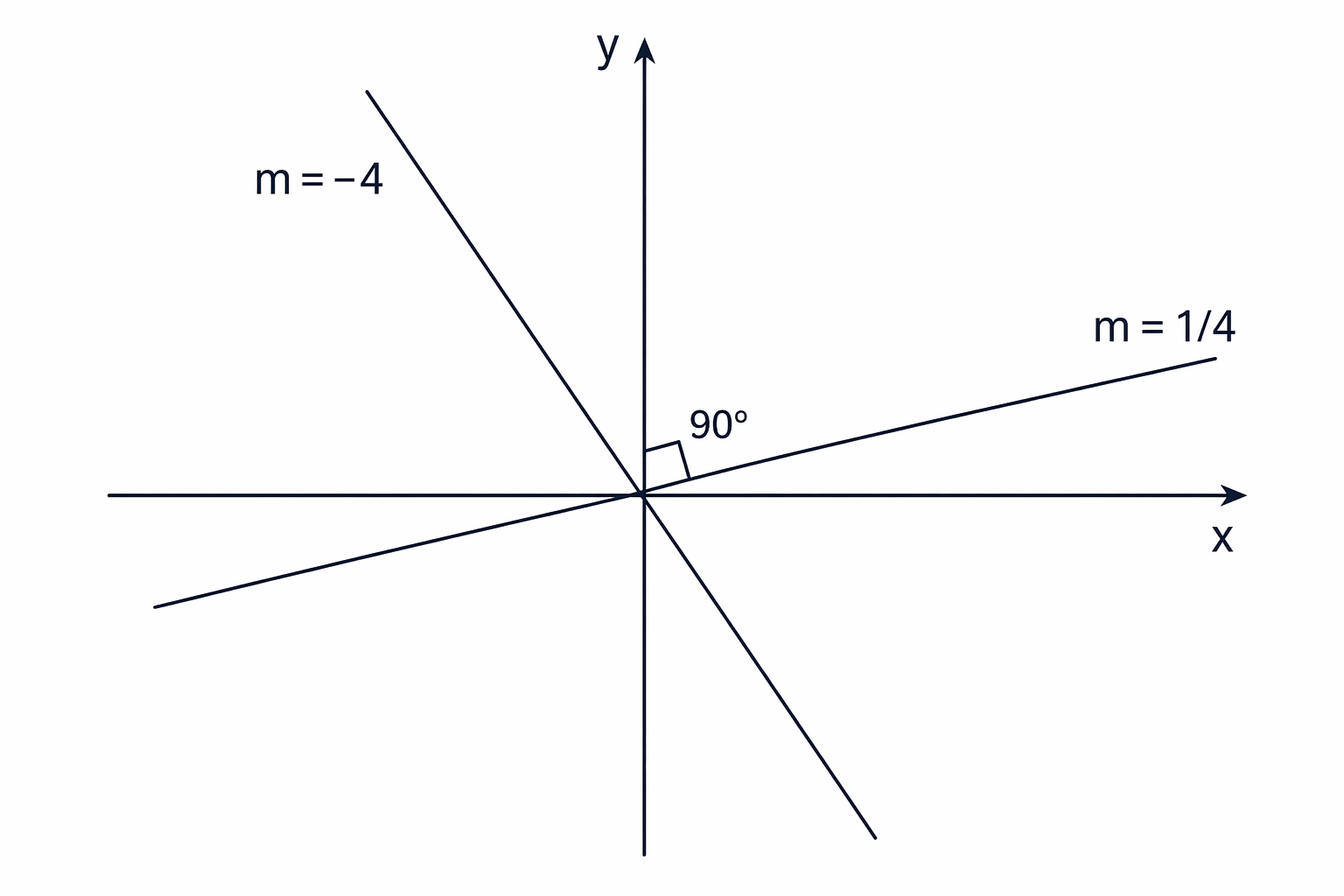

Perpendicular lines meet at 90°, and their gradients are negative reciprocals.

For example:

$m = 4$ becomes $m=−14m=-\frac{1}{4}$ .
$m=−23m=-\frac{2}{3}$ becomes $m=32m=\frac{3}{2}$ .

Example

Perpendicular line through the y-axis

The line $y=14x−2y=\frac{1}{4}x-2$ has gradient $m=14m=\frac{1}{4}$ .
A perpendicular line has gradient $m = - 4$ .
Passing through (0, -6) means the y-intercept is -6, so $c = - 6$ .
The equation is $y = - 4 x - 6$ .

Common Mistake

Only doing half the reciprocal rule

For perpendicular gradients, you must do both parts: flip the fraction and change the sign.

Common Mistake

Horizontal and vertical lines

The negative-reciprocal rule assumes both lines can be written as $y = m x + c$ . A horizontal line like $y = 4$ is perpendicular to a vertical line like $x = - 1$ .

A horizontal line and a vertical line are perpendicular, even though the vertical line is not in y = mx + c form.

4. If the equation is not already in $y = m x + c$

Sometimes the given line is written in a different form, such as $3 x + 6 y = 12$ . Always rearrange first, then use the parallel or perpendicular rule.

Example

Rearrange first, then use the rule

Rearrange $3 x + 6 y = 12$ by subtracting $3 x$ : $6 y = - 3 x + 12$ .
Divide by 6: $y=−12x+2y=-\frac{1}{2}x+2$ .
The given line has gradient $m=−12m=-\frac{1}{2}$ .
A perpendicular line has gradient $m = 2$ .
Passing through (0, 7) gives $c = 7$ .
The equation is $y = 2 x + 7$ .

5. Using two points to find a gradient

If a line is described using two points, calculate its gradient first.

Definition

Gradient between two points

For points $x_1,y_1)$ and $x_2,y_2)$ , the gradient is $m=y2−y1x2−x1m=\frac{y_2-y_1}{x_2-x_1}$ : change in $y$ divided by change in $x$ .

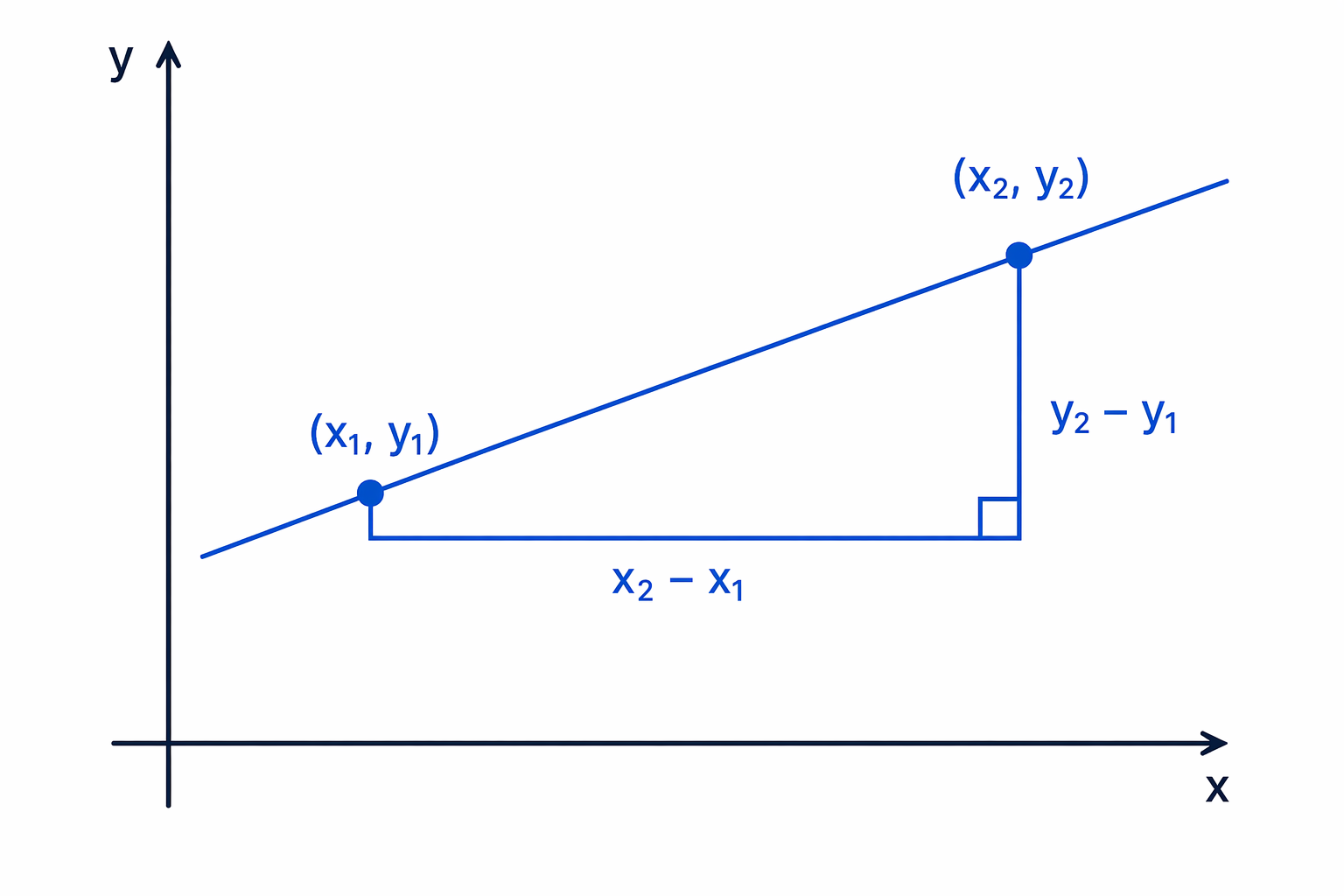

Gradient between two points is the vertical change divided by the horizontal change.

Once you know the gradient, use $y = m x + c$ . To substitute a point means to replace $x$ and $y$ with that point’s coordinates.

Example

Parallel line from two points

Line A passes through (1, 2) and (5, 14), so its gradient is $m=14−25−1=3m=\frac{14-2}{5-1}=3$ .

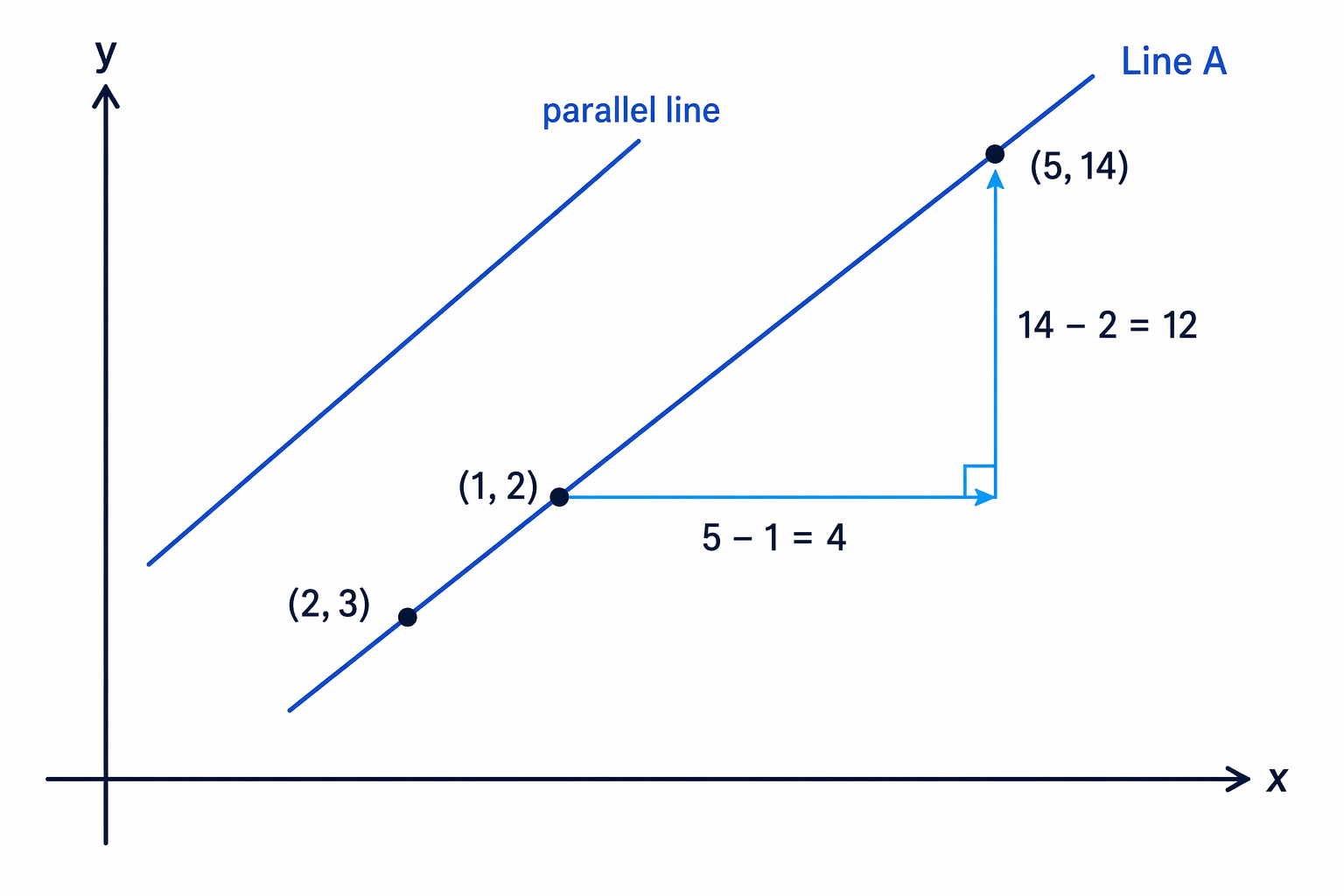

Line A’s two points show a rise of 12 and a run of 4, giving gradient 3; the required parallel line has the same slope through (2, 3).

A parallel line also has gradient $m = 3$ .
Start with $y = 3 x + c$ .
Use the point (2, 3): $3 = 3 (2) + c$ .
Solve to get $c = - 3$ .
The equation is $y = 3 x - 3$ .

Example

Perpendicular line from two points

Line A passes through (0, 4) and (6, 7), so its gradient is $m=7−46−0=12m=\frac{7-4}{6-0}=\frac{1}{2}$ .

The line through (1, 5) is perpendicular to Line A, so it crosses at a right angle with the negative reciprocal gradient.

A perpendicular line has gradient $m = - 2$ .
Start with $y = - 2 x + c$ .
Use the point (1, 5): $5 = - 2 (1) + c$ .
Solve to get $c = 7$ .
The equation is $y = - 2 x + 7$ .

Common Mistake

Gradient fraction upside down

Gradient is change in $y$ over change in $x$ . Keep the order of the two points consistent in the numerator and denominator.

6. Showing lines are parallel or perpendicular

When a question says “show that”, you need evidence. Calculate both gradients and then make a clear statement.

Example

Showing two lines are parallel

Line A passes through (1, 2) and (3, 8), so $mA=8−23−1=3m_A=\frac{8-2}{3-1}=3$ .
Line B passes through (-2, 1) and (0, 7), so $mB=7−10−(−2)=3m_B=\frac{7-1}{0-(-2)}=3$ .
The gradients are equal, so the two lines are parallel.

For perpendicular lines, show that the gradients multiply to -1.

7. Finding an unknown value like $k$

If a coordinate contains $k$ , write the gradient using $k$ , then set it equal to the gradient you need.

Example

Finding $k$ using perpendicular gradients

Line A passes through (-1, 2) and (3, 4), so $mA=4−23−(−1)=12m_A=\frac{4-2}{3-(-1)}=\frac{1}{2}$ .
A perpendicular line must have gradient $m = - 2$ .
Line B passes through (2, 5) and ( $k$ , -1), so its gradient is $mB=−1−5k−2=−6k−2m_B=\frac{-1-5}{k-2}=\frac{-6}{k-2}$ .

Line B uses an unknown x-coordinate k, so its horizontal change is k - 2 while its vertical change is -6.

Set this equal to -2: $−6k−2=−2\frac{-6}{k-2}=-2$ .
Solve: $- 6 = - 2 (k - 2)$ , so $- 6 = - 2 k + 4$ , giving $k = 5$ .

Exam technique

In the exam

Rearrange into $y = m x + c$ before deciding on the gradient.
For parallel lines, keep the same gradient; for perpendicular lines, flip the fraction and change the sign.
If points are given, calculate $xm=\frac{\text{change in }y}{\text{change in }x}$ carefully, then state your conclusion clearly.

Self review

Check yourself

What gradient would a line perpendicular to $y=35x−2y=\frac{3}{5}x-2$ have?
Can you rearrange $2 x + 3 y = 9$ into $y = m x + c$ and identify the gradient?
If two lines have gradients $m = 4$ and $m=−14m=-\frac{1}{4}$ , what is their relationship?
